RS Pro Digital Force Gauges are handheld devices that allow measurement for quality control operating force. The software and electronics of the force gauge convert the voltage of the load cell into a force value that is displayed on the instrument. A use of a test stand enables high levels of repeat applications in standard test procedures.

Tension & compression capability
RS232 interface
SD card logging capability
Auto Zero, average & peak reading

Force Gauge 5000 g, RS stock no: 111-3689
Force Gauge 20 kg, RS stock no: 111-3690
Force Gauge 100 kg, RS stock no: 111-3691

Spring testing
Wire testing
Food quality
Weld force between electrodes

Carry case

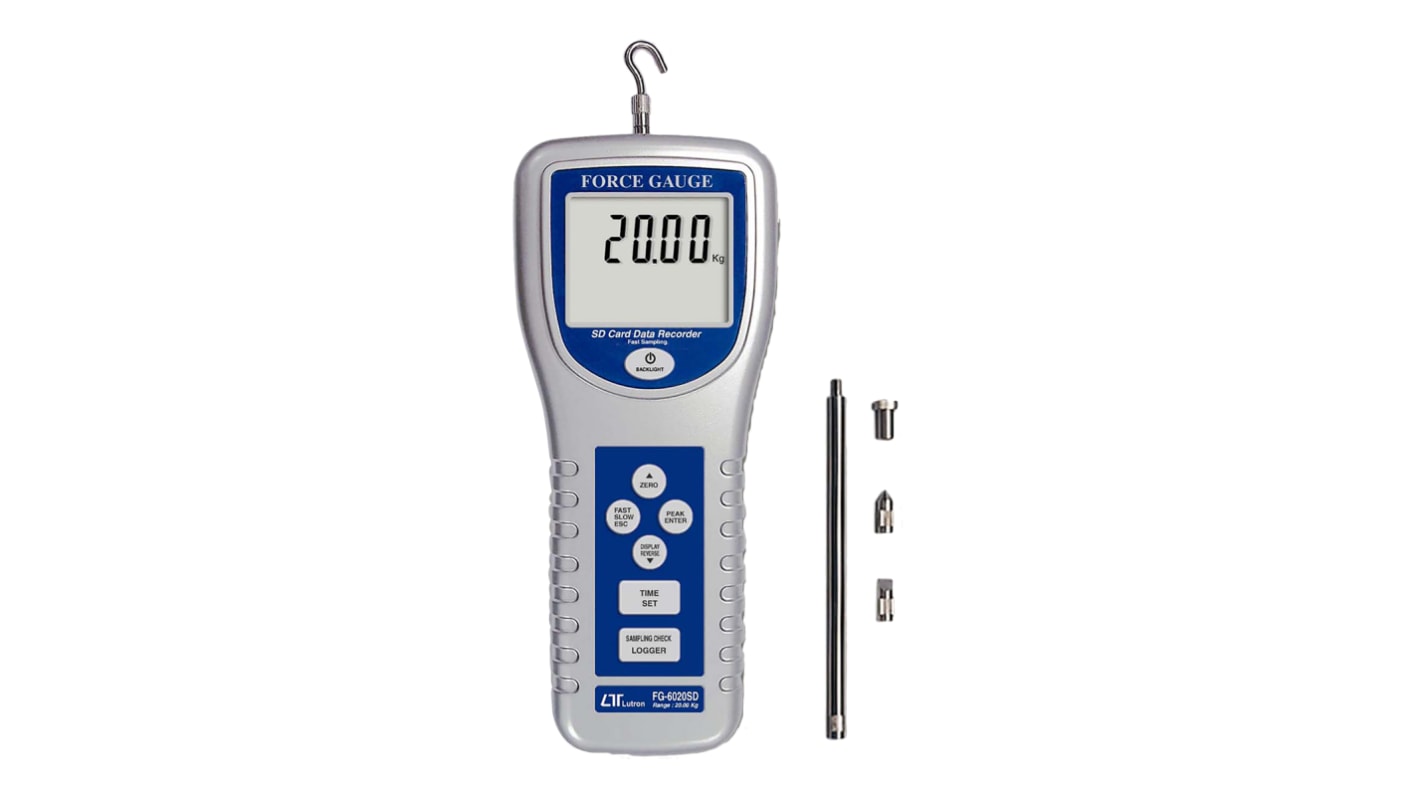

RS PRO’s digital force gauges are handheld devices used to measure compression and tension on different materials during research and development work.

The device converts the voltage of a load into a force value, which is displayed on the instrument in kilos, pounds and newtons. Digital force gauges are easy to use and provide accurate results. You can use a test stand with the gauge to enable higher levels of repeat applications in standard test procedures.

These gauges have an RS232 interface and can be used with an SD card. You can directly download the recorded data from the card to Microsoft Excel. Operating safely in a temperature range from 0°C to +50°C, the gauges come complete with rigid carrying cases for their protection.

Use your force gauge across a range of applications from wire and spring testing to checking the weld force between electrodes.

• Range of 20 kg
• Dimensions of 215 mm (L) x 90 mm (W) x 45 mm (D)
• 1.5 V battery type
• Operating temperature range of 0°C to +50°C
• Digital output of RS232, USB
• Measurement units in kg, lb and n
• Best accuracy of +0.5%
