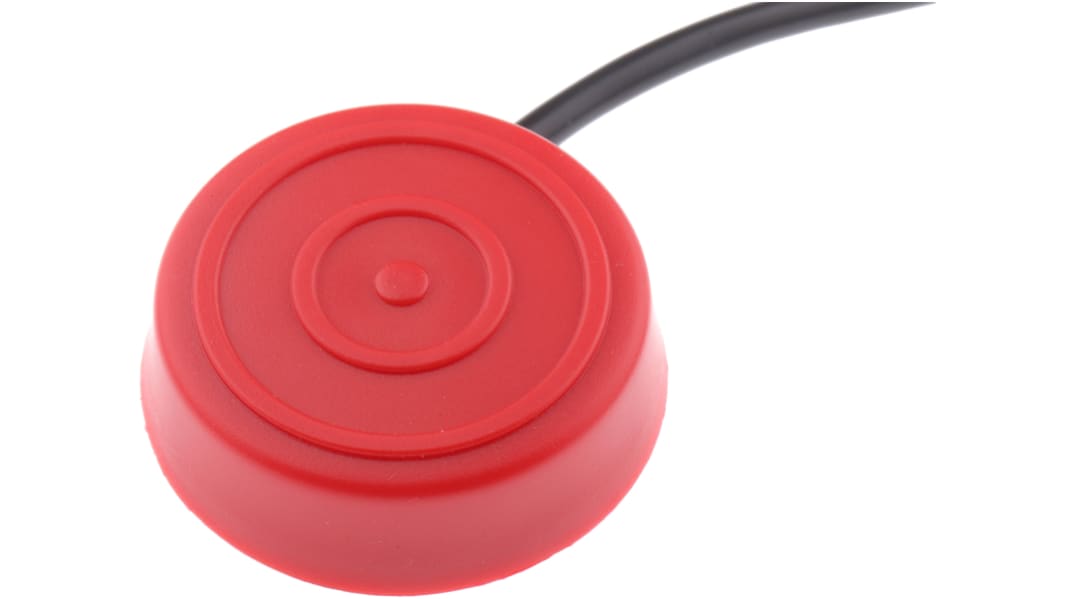

This RS PRO round bellow switch is a momentary SPST (Single Pole Single Throw) type of foot switch which is suitable for use in lightweight applications but can withstand heavy loads. It's designed to be operated with only a light touch over the entire top surface.
The body is made from polyvinyl chloride (PVC) material to ensure it's resistant to wear and corrosion. The product has an Ingress Protection (IP) rating of IP67, so you can be sure it's well protected from dirt, dust particles and temporary immersion in water. It comes with a cable fitted to the base to make the installation easier. The foot switch complies with European (2014/35/EU) standards for electrical items and meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, which guarantee the risk of discharge is reduced.

• PVC case material
• Red colour
• Single pole single throw (SPST) contact configuration
• Contact current rating of 50 mA
• Contact voltage rating of 30 V DC
• Dimensions of 40 (diameter) x 13 mm
• IP (Ingress Protection) rating of IP67
• Meets 2014/35/EU standards
• Foot switch bellow environment
• Momentary switch operation
