RS PRO General Purpose Momentary Foot Switch - Mild Steel Case Material, SP-CO, 3 A Contact Current, 250V Contact
- RS Stock No.:
- 251-2230
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£68.02
(exc. VAT)
£81.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 69 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £68.02 |
5 - 9 | £65.98 |
10 + | £63.12 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£59.30
(exc. VAT)
£71.16
(inc. VAT)
- RS Stock No.:
- 251-2230
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Foot Switch Type | Momentary Foot Switch | |
Contact Configuration | SP-CO | |
Switch Operation | Momentary | |
Case Material | Mild Steel | |
Contact Voltage Rating AC | 250V | |
Contact Voltage Rating DC | 24V | |
Contact Current Rating | 3 A | |
Switch Environment | General Purpose | |
IP Rating | IPX2 | |
Contact Material | Silver | |
Colour | Black, Grey | |
Dimensions | 90 x 66 x 24mm | |
Standards Met | 2014/35/EU, EN 60950 | |
Width | 66mm | |
Length | 90mm | |
Height | 24mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Foot Switch Type Momentary Foot Switch | ||
Contact Configuration SP-CO | ||
Switch Operation Momentary | ||
Case Material Mild Steel | ||
Contact Voltage Rating AC 250V | ||
Contact Voltage Rating DC 24V | ||
Contact Current Rating 3 A | ||
Switch Environment General Purpose | ||
IP Rating IPX2 | ||
Contact Material Silver | ||
Colour Black, Grey | ||
Dimensions 90 x 66 x 24mm | ||
Standards Met 2014/35/EU, EN 60950 | ||
Width 66mm | ||
Length 90mm | ||
Height 24mm | ||
- COO (Country of Origin):
- GB

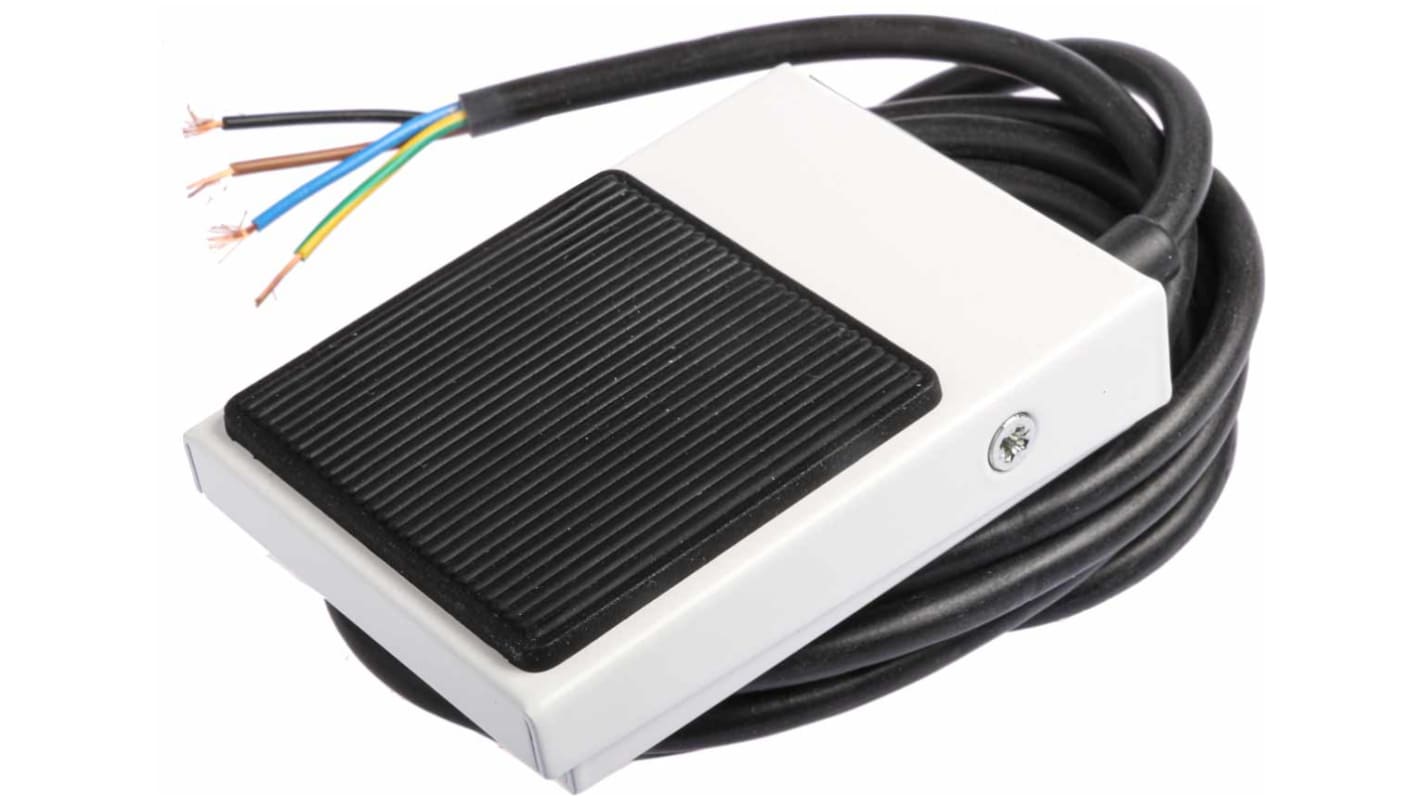

RS PRO General Purpose Momentary Metal Foot Switch – Mild Steel Case Material, SP-CO, 3 A Contact Current, 250 V Contact
The RS PRO general-purpose momentary metal foot switch lets you change contacts in an electrical circuit. You'll often find it in settings where operating a hand switch is a safety concern, such as hospital beds, dentist chairs and certain lamps.
There's an IP40 rated switch that protects against tools and small wires less than 1 mm. It comes with two metres of cable, so you can easily position your equipment. This component has dimensions of (H) 24 mm x (L) 90 mm x (W) 66 mm. It has a contact voltage rating of AC 250 V and DC 24 V, with a contact current rating of 3 A.
As an RS PRO product, it's been stringently tested for durability and reliability. The switch is contained within a hardwearing steel housing. It has a low profile that helps eliminate operator fatigue, requiring only a small amount of pressure to operate.
There's an IP40 rated switch that protects against tools and small wires less than 1 mm. It comes with two metres of cable, so you can easily position your equipment. This component has dimensions of (H) 24 mm x (L) 90 mm x (W) 66 mm. It has a contact voltage rating of AC 250 V and DC 24 V, with a contact current rating of 3 A.
As an RS PRO product, it's been stringently tested for durability and reliability. The switch is contained within a hardwearing steel housing. It has a low profile that helps eliminate operator fatigue, requiring only a small amount of pressure to operate.
Features and Benefits
• General-purpose foot switch
• SP-CO (single pole change over) contact configuration
• Momentary switch operation
• Mild steel casing
• Contact voltage rating of AC 250 V
• Contact voltage rating of DC 24 V
• Contact current rating of 3 A
• IP40 rated for protection against tools and small wires
• Silver contacts
• EN 60950 and 2014/35/EU compliant for safety and quality
• Black and grey
• Dimensions of (H) 24 mm x (L) 90 mm x (W) 66 mm
• SP-CO (single pole change over) contact configuration
• Momentary switch operation
• Mild steel casing
• Contact voltage rating of AC 250 V
• Contact voltage rating of DC 24 V
• Contact current rating of 3 A
• IP40 rated for protection against tools and small wires
• Silver contacts
• EN 60950 and 2014/35/EU compliant for safety and quality
• Black and grey
• Dimensions of (H) 24 mm x (L) 90 mm x (W) 66 mm
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Approvals
EN 61058-2-1; EN 61058; EN 60601-1; EN 60950
