Lovato Electric Foot Switch Momentary Foot Switch - 1 NO/1 NC Self Extinguishing Double Insulation Polymer Thermoplastic
- RS Stock No.:
- 248-6007
- Mfr. Part No.:
- KG210S11
- Brand:
- Lovato Electric
Subtotal (1 unit)*
£95.96
(exc. VAT)
£115.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
- Plus 5 unit(s) shipping from 26 November 2026
- Plus 5 unit(s) shipping from 10 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £95.96 |
*price indicative
- RS Stock No.:
- 248-6007
- Mfr. Part No.:
- KG210S11
- Brand:
- Lovato Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Series | KG210 | |
| Product Type | Foot Switch | |
| Contact Configuration | 1 NO/1 NC | |
| Switch Operation | Momentary | |
| Housing Material | Self Extinguishing Double Insulation Polymer Thermoplastic | |
| Contact AC Voltage | 600V ac | |
| Contact DC Voltage | 600V dc | |
| Switch Contact Current | 10A | |
| Switch Environment | Foot Switch | |
| IP Rating | IP20, IP54 | |
| Terminal Type | Screw | |
| Guard Cover | Yes | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC/EN 60204-1, IEC/EN 60947-1, IEC/EN 60947-5-1, EN 60447 | |
| Colour | Black, Yellow | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Series KG210 | ||
Product Type Foot Switch | ||
Contact Configuration 1 NO/1 NC | ||
Switch Operation Momentary | ||
Housing Material Self Extinguishing Double Insulation Polymer Thermoplastic | ||
Contact AC Voltage 600V ac | ||
Contact DC Voltage 600V dc | ||
Switch Contact Current 10A | ||
Switch Environment Foot Switch | ||
IP Rating IP20, IP54 | ||
Terminal Type Screw | ||
Guard Cover Yes | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC/EN 60204-1, IEC/EN 60947-1, IEC/EN 60947-5-1, EN 60447 | ||
Colour Black, Yellow | ||
Mechanical Life 10000000Cycles | ||
- COO (Country of Origin):
- IT

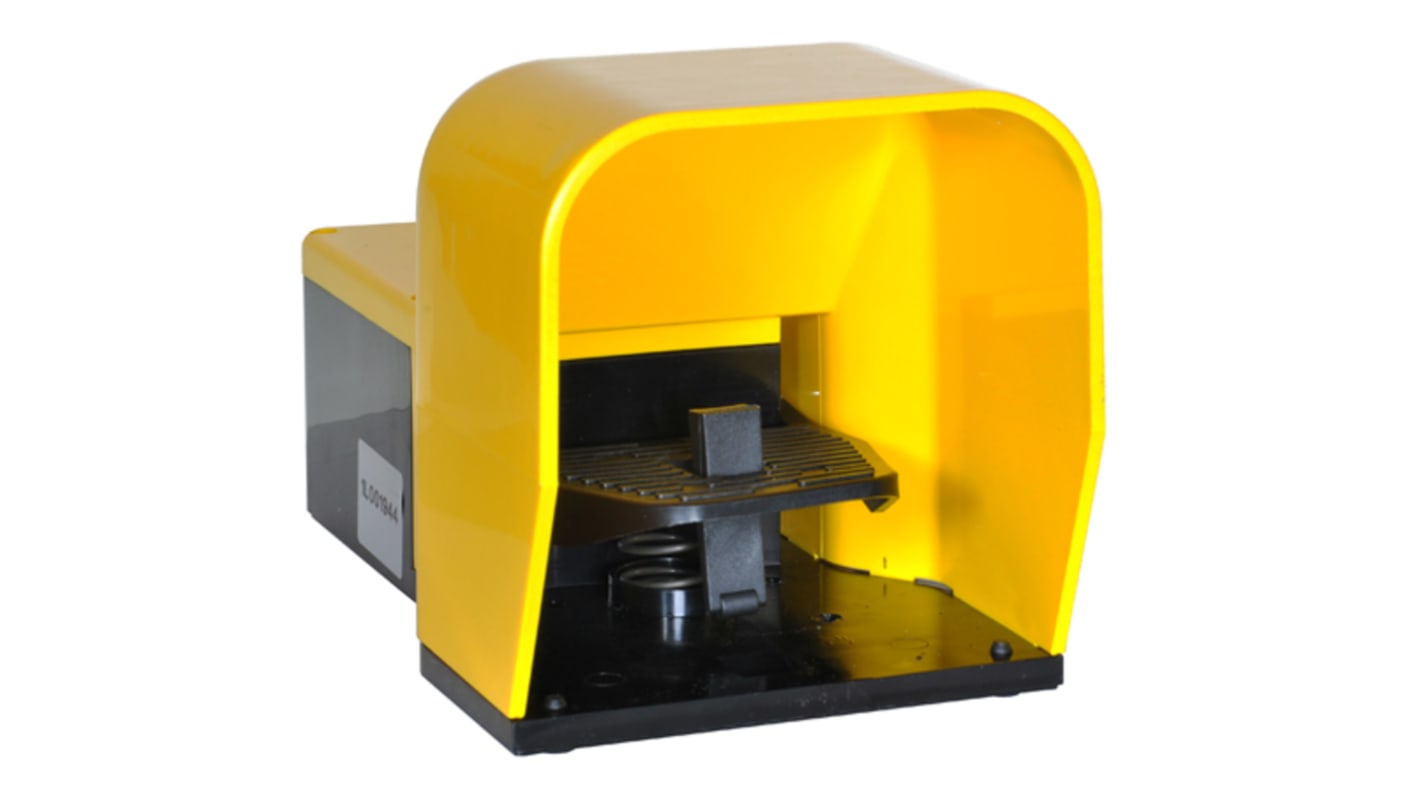

The Lovatov footswitch is a K series one pedal footswitch. It is actuation free which has plastic body. It is made of Self-extinguishing double-insulation polymer thermoplastic material.
Its maximum operating temperature is 70°C
Thermal current 10A.
