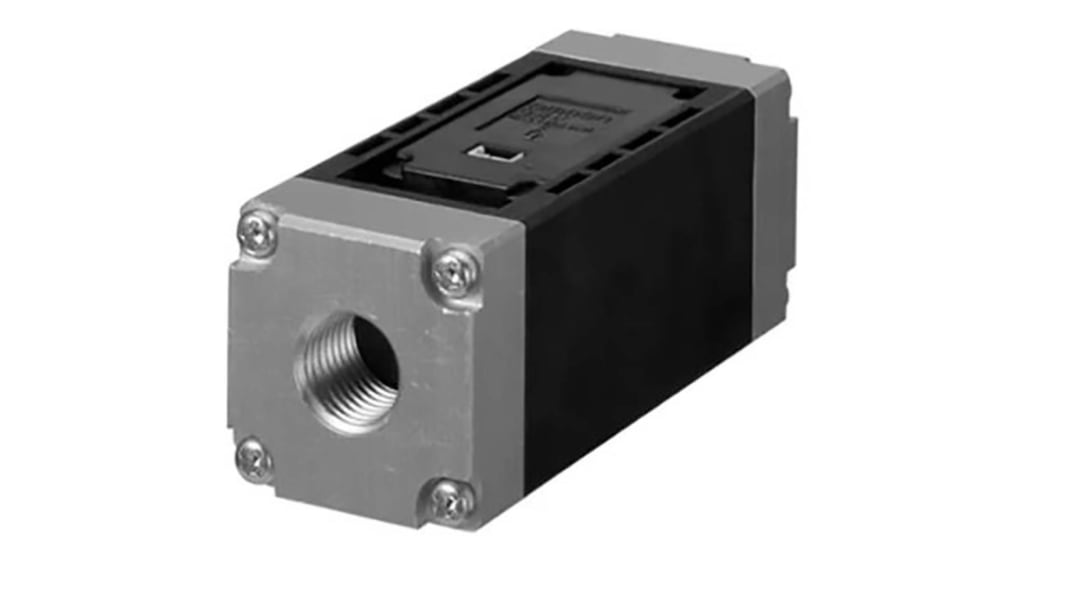

Omron D6F Series Air Flow Sensor for Air, 1L/min Min, 30L/min Max
- RS Stock No.:
- 204-3921
- Mfr. Part No.:
- D6F30A7000
- Brand:
- Omron
Subtotal (1 unit)*
£302.16
(exc. VAT)
£362.59
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £302.16 |
*price indicative
- RS Stock No.:
- 204-3921
- Mfr. Part No.:
- D6F30A7000
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Media Monitored | Air | |
| Product Type | Flow Sensor | |
| Device Type | Air | |
| Minimum Flow Rate | 1L/min | |
| Housing Material | Polyphenylene Sulphide | |
| Maximum Flow Rate | 30L/min | |
| Connection Type | Three-Pin Connector | |
| Maximum Pressure | 500kPa | |
| Maximum Supply Voltage | 26.4V dc | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Series | D6F | |
| Current Rating | 15mA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Media Monitored Air | ||
Product Type Flow Sensor | ||
Device Type Air | ||
Minimum Flow Rate 1L/min | ||
Housing Material Polyphenylene Sulphide | ||
Maximum Flow Rate 30L/min | ||
Connection Type Three-Pin Connector | ||
Maximum Pressure 500kPa | ||
Maximum Supply Voltage 26.4V dc | ||
IP Rating IP40 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Series D6F | ||
Current Rating 15mA | ||
- COO (Country of Origin):
- JP
The Omron Electronic Components flow sensor with high accuracy works with 10.8 to 26.4VDC power supply and 15 mA maximum current consumption. This sensor has three pin electrical connector with aluminium alloy case.
500kPa withstand pressure
35 to 85% operating humidity
-10 to 60°C operating temperature
IEC IP40 degree of protection
