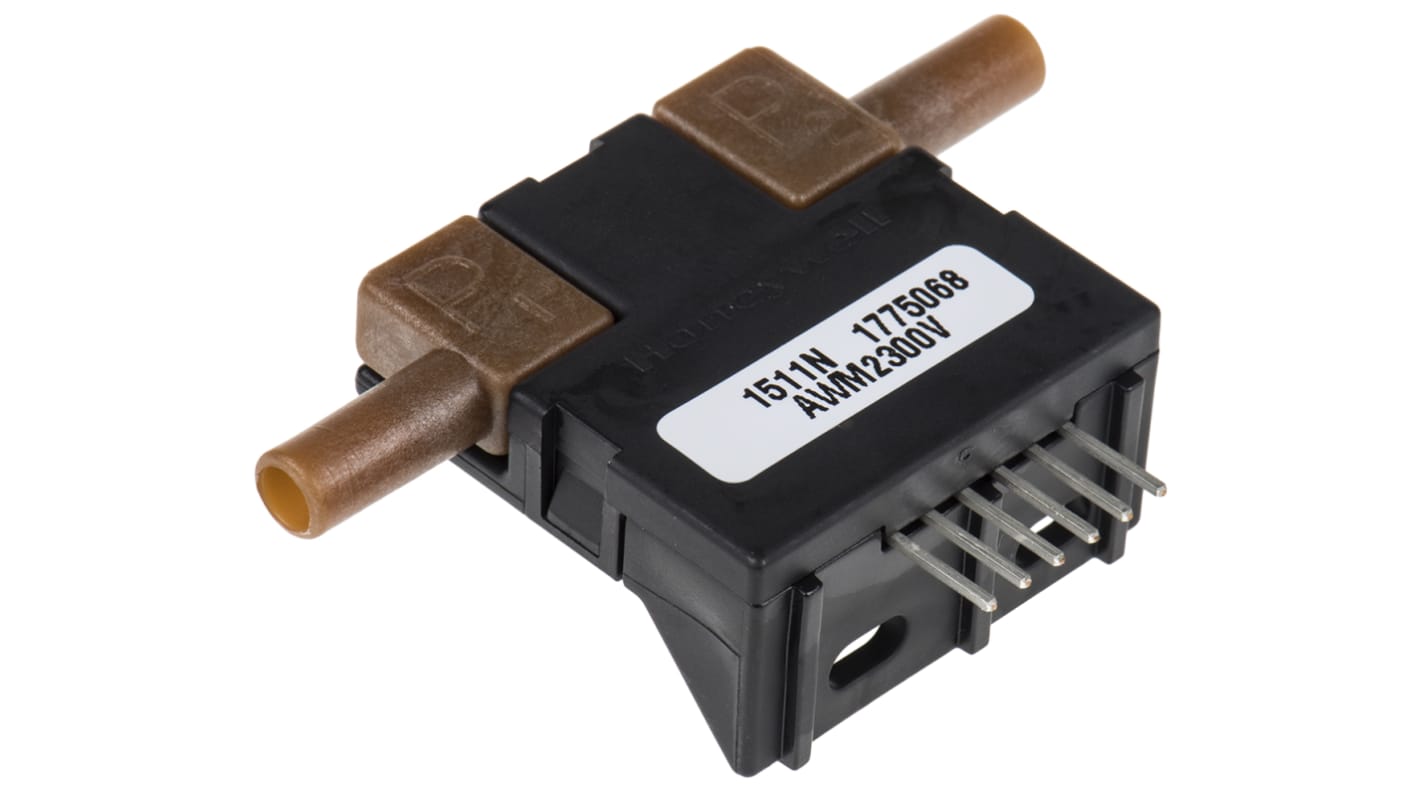

Honeywell Unamplified Airflow Sensor, -1000 sccm → 1000 cm³/min, AWM2000 Series
- RS Stock No.:
- 407-568
- Mfr. Part No.:
- AWM2300V
- Brand:
- Honeywell
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£148.63
(exc. VAT)
£178.36
(inc. VAT)
- RS Stock No.:
- 407-568
- Mfr. Part No.:
- AWM2300V
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Media Monitored | Dry Gas | |
| Device Type | Unamplified | |
| Minimum Flow Rate | -1000 sccm | |
| Maximum Flow Rate | 1000 cm³/min | |
| Supply Voltage | 15 V dc | |
| Pipe Diameter Range | 0.2 in | |
| Maximum Pressure | 25psi | |
| Material | Plastic | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Series | AWM2000 | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Media Monitored Dry Gas | ||
Device Type Unamplified | ||
Minimum Flow Rate -1000 sccm | ||
Maximum Flow Rate 1000 cm³/min | ||
Supply Voltage 15 V dc | ||
Pipe Diameter Range 0.2 in | ||
Maximum Pressure 25psi | ||
Material Plastic | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Series AWM2000 | ||
Unamplified Airflow Sensor AWM2000 Series
The AWM2000 Series microbridge mass airflow sensor is a passive device comprised of two Wheatstone bridges. The heater control circuit is required for operation per specifications. The sensing bridge supply circuit is also required for operation per specifications. The differential amplifier is a useful interface for the sensing bridge.
Features and Benefits
• Bidirectional sensing capability
• Actual mass airflow sensing
• Low differential pressure sensing
Product Application Information
• Damper control for heating, ventilation, and air conditioning systems
• Gas analysers
• Low vacuum control
• Process control
• Medical respirators and ventilators
• Oxygen concentrators
• Leak detection equipment
• Vent hoods
• Anaesthesia control
• Gas metering
• Gas chromatography
