ifm electronic, 200 3000 (Gas) cm³/s, 3 300 (Liquid) cm³/s Flow Controller, M12 Connector, PNP, 19

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Flow indicator for variable process connection

Compact flow indicator using microprocessor technology
Fast reaction time (1 → 2 sec)
Adaptable to various process connections
Automatic adjustment to nominal flow and minimum flow via setting buttons or programming line
All parameters can also be set manually
Locking facility
Optical indication of nominal flow, overflow, underflow and flow stoppage via the LED display
Short-circuit proof, inverse polarity protected

//media.rs-online.com/t_line/LD335638-01.gif

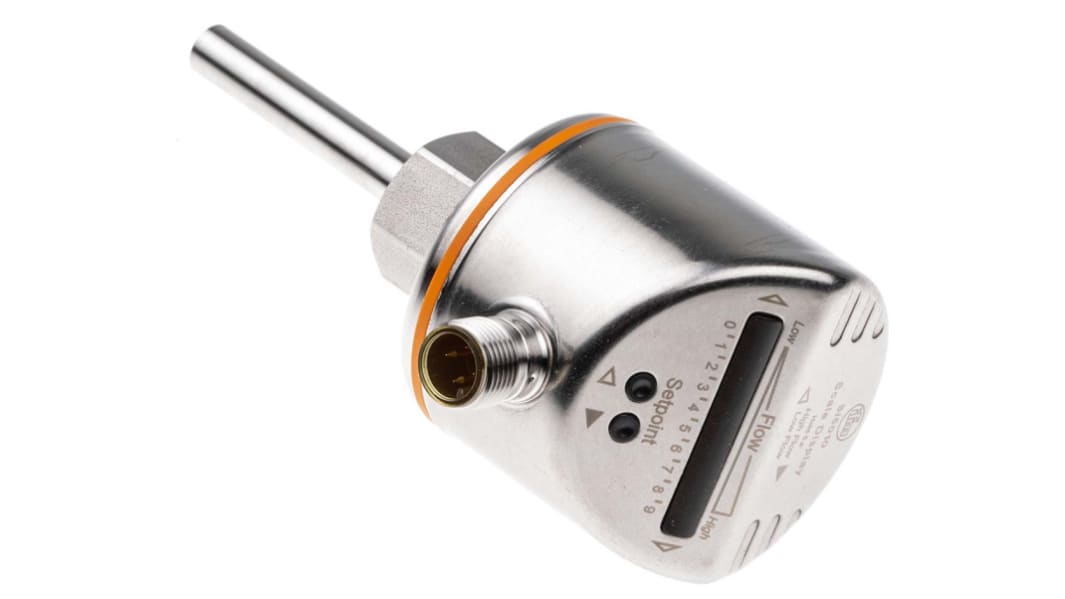

ifm electronic Flow Indicator

The ifm electronic flow indicator can measures flow rate from 3cm³/s to 300cm³/s for liquid and from 200cm³/s to 3000cm³/s for gas. This indicator has an automatic adjustment to nominal flow and minimum flow via setting buttons or programming lin. It has a supply voltage rating ranges between 18VDC and 36VDC. It is an optical indication of nominal flow, overflow, underflow and flows stoppage via the LED display short-circuit proof, inverse polarity protected.

Features and Benefits

Fast reaction time (1 second to 2 seconds) Adaptable to various process connections All the parameters can also be set manually Locking facility Current consumption is greater than 60mA Current rating is 250mA Voltage drop is greater than 2.5V

Certifications

CE certified UL listed DIN EN 61000-6-2 DIN EN 61000-6-3 CRN certified

Specifications
Attribute Value
Maximum Flow Rate 3 300 (Liquid) cm³/s, 200 3000 (Gas) cm³/s
Electrical Connection M12 Connector
Control Output PNP
Supply Voltage 19 36 V dc
Display Screen LED
Pipe Diameter Range 18 mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +80°C
15 in stock for FREE next working day delivery
23 available from Europe for delivery within 1 working day(s)
Price Each
£ 290.75
(exc. VAT)
£ 348.90
(inc. VAT)
Units
Per unit
1 +
£290.75
