ifm electronic, 100 1000 cm³/s Flow Controller, Cable, Relay, 24 V dc, LED

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Airflow Sensor/Switch

Working on the calorimetric principle these sensors have a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.

Suitable for monitoring in HVAC applications
LED status indication of power/airflow
Insertion depth; 32mm (min), 120mm (max)
Switching point continuously adjustable
Dimensions: Length 140mm, Diameteter 23mm
Supplied with mounting clamp and installation instructions

//media.rs-online.com/t_line/L182988-01.gif

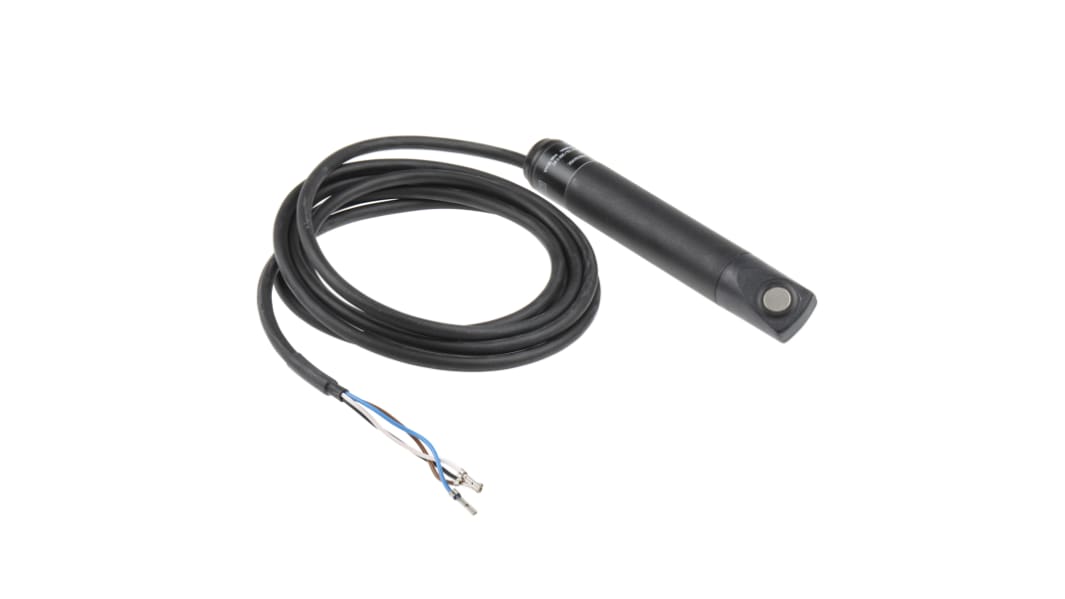

ifm electronic Airflow Sensor/Switch

The ifm electronic airflow sensor/switch can sense a maximum flow rate of 1000cm³/s working on the calorimetric principle. It has a supply voltage rating of 24VDC. The immersion depth into the duct can be flexibly varied via the supplied mounting clamp. This sensor has a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.

Features and Benefits

Reliable airflow monitoring User-friendly setting of the requested immersion depth of the sensor Intuitive setting of the switch point via a potentiometer Signal output via potential-free relay contacts LED status indication of power/airflow Insertion depth is 32mm (minimum), 120mm (maximum) Switching point continuously adjustable Dimensions: Length is 140mm Diameter is 23mm Supplied with mounting clamp and installation instructions Pipe diameter range is 23mm

Applications

Ventilation systems in building automation Airflow monitoring in ventilation systems and/or suction operations Monitoring in HVAC applications

Certifications

CE certified UL listed DIN EN 61000-6-2 DIN EN 61000-6-3 CRN certified IP65 rated

Specifications
Attribute Value
Maximum Flow Rate 100 1000 cm³/s
Electrical Connection Cable
Control Output Relay
Supply Voltage 24 V dc
Display Screen LED
Pipe Diameter Range 23 mm
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
17 In stock for FREE next working day delivery
Price Each
£ 127.05
(exc. VAT)
£ 152.46
(inc. VAT)
Units
Per unit
1 +
£127.05
