Schneider Electric PanelSeT SFN Series Galvanised Steel 1-Door Floor Standing Enclosure, Plain Door, IP55 500 mm, 1000
- RS Stock No.:
- 285-5504
- Mfr. Part No.:
- NSYSFN181050P
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,032.38
(exc. VAT)
£1,238.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,032.38 |
*price indicative
- RS Stock No.:
- 285-5504
- Mfr. Part No.:
- NSYSFN181050P
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Floor Standing Enclosure | |
| Number of Doors | 1 | |
| IP Rating | IP55 | |
| Series | PanelSeT SFN | |
| Door Type | Plain | |
| Body Material | Galvanised Steel | |
| Colour | Grey, Black | |
| External Width | 1000mm | |
| External Depth | 500mm | |
| External Height | 1800mm | |
| Colour RAL | RAL 7035, Handle: RAL 9005 | |
| NEMA Rating | NEMA 3R/12 | |
| Mounting plate | Yes | |
| Standards/Approvals | REACH, EU RoHS, IEC 62208, RoHS | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Floor Standing Enclosure | ||
Number of Doors 1 | ||
IP Rating IP55 | ||
Series PanelSeT SFN | ||
Door Type Plain | ||
Body Material Galvanised Steel | ||
Colour Grey, Black | ||
External Width 1000mm | ||
External Depth 500mm | ||
External Height 1800mm | ||
Colour RAL RAL 7035, Handle: RAL 9005 | ||
NEMA Rating NEMA 3R/12 | ||
Mounting plate Yes | ||
Standards/Approvals REACH, EU RoHS, IEC 62208, RoHS | ||
IK Rating IK10 | ||
RoHS Status: Exempt

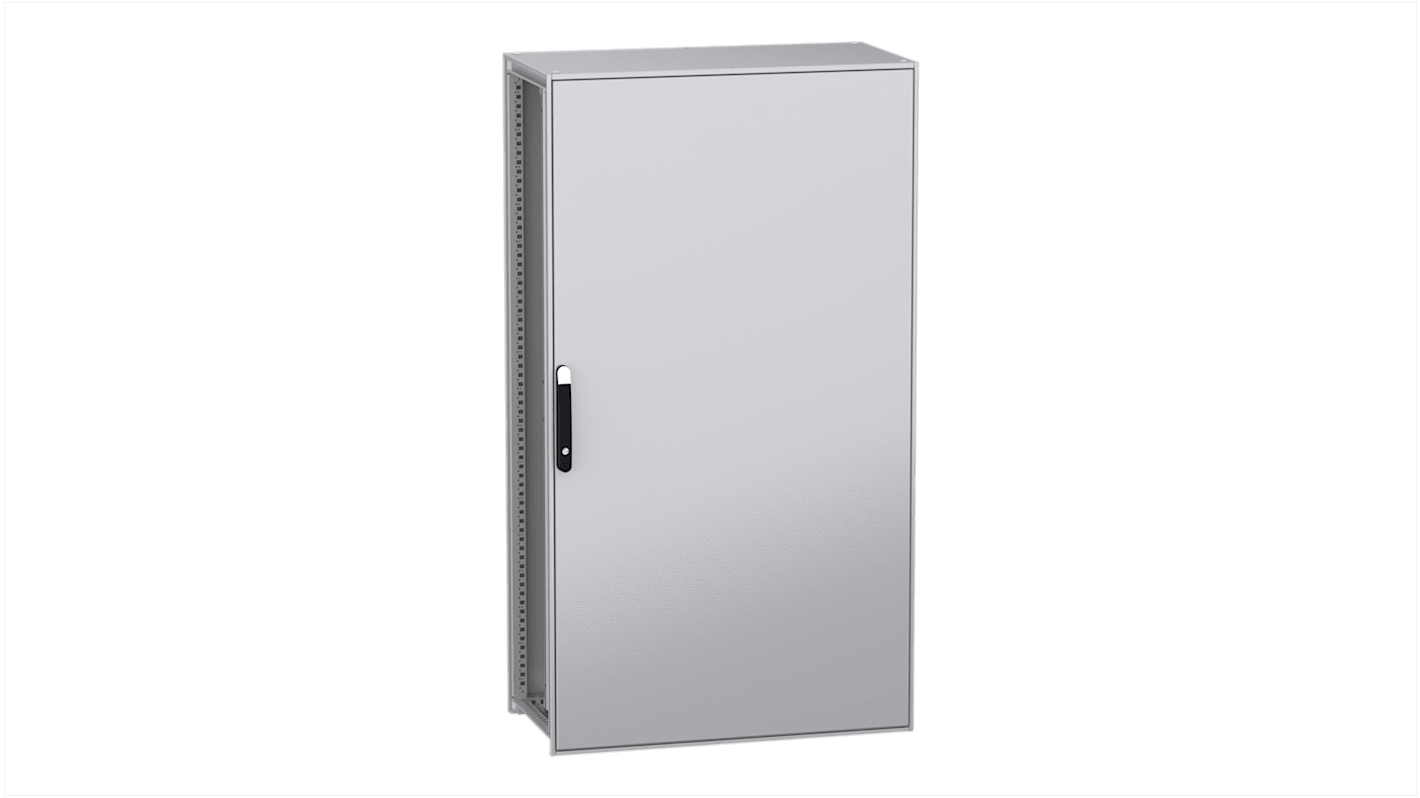

The Schneider Electric floor-standing modular electrical enclosure is a versatile solution for a wide range of applications. With a height of 1800 mm, width of 1000 mm, and depth of 500 mm, this enclosure is perfect for housing various electrical components. The enclosure is made from galvanized steel and features a grey finish, ensuring durability and a sleek look.
Vertical uprights joined with top and bottom frames for sturdy construction
Perforated structure with a pitch of 25 mm for optimal ventilation
Reversible door with a 120° opening angle for flexibility in installation
4-point lock with handle for security
IP55 and NEMA 3R/12 rated for protection against dust and water ingress
IK10 rated for high impact resistance
Epoxy-polyester powder coating for a long-lasting finish
Green Premium label for environmentally friendly design
