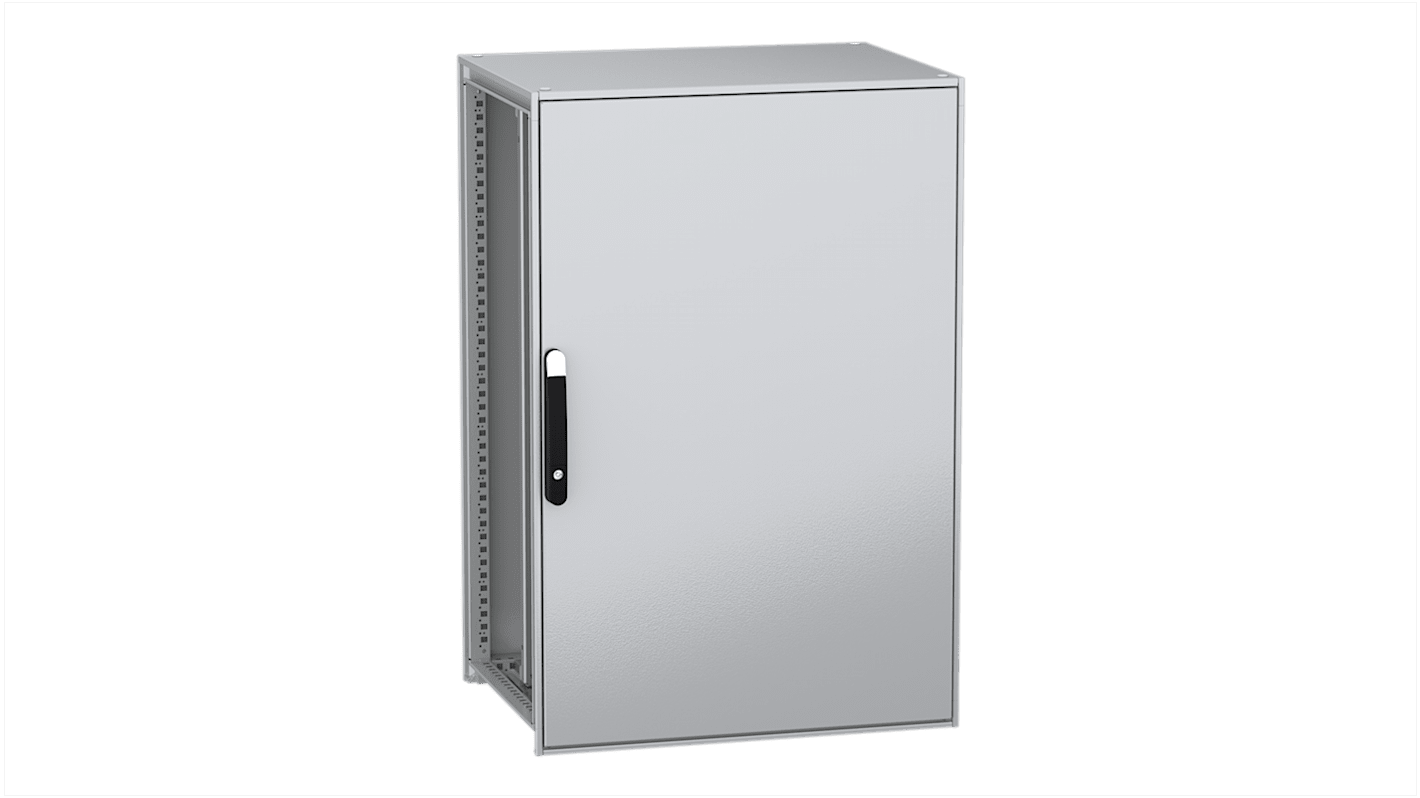

Schneider Electric PanelSeT SFN Series Galvanised Steel 1-Door Floor Standing Enclosure, Plain Door, IP55 600 mm, 800 mm
- RS Stock No.:
- 285-5485
- Mfr. Part No.:
- NSYSFN12860P
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£724.02
(exc. VAT)
£868.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £724.02 |
*price indicative
- RS Stock No.:
- 285-5485
- Mfr. Part No.:
- NSYSFN12860P
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Floor Standing Enclosure | |
| Number of Doors | 1 | |
| IP Rating | IP55 | |
| Series | PanelSeT SFN | |
| Door Type | Plain | |
| Body Material | Galvanised Steel | |
| Colour | Black, Grey | |
| External Width | 800mm | |
| External Depth | 600mm | |
| External Height | 1200mm | |
| Colour RAL | RAL 7035, Handle: RAL 9005 | |
| NEMA Rating | NEMA 3R/12 | |
| Mounting plate | Yes | |
| Standards/Approvals | RoHS, IEC 62208, EU RoHS, REACH | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Floor Standing Enclosure | ||
Number of Doors 1 | ||
IP Rating IP55 | ||
Series PanelSeT SFN | ||
Door Type Plain | ||
Body Material Galvanised Steel | ||
Colour Black, Grey | ||
External Width 800mm | ||
External Depth 600mm | ||
External Height 1200mm | ||
Colour RAL RAL 7035, Handle: RAL 9005 | ||
NEMA Rating NEMA 3R/12 | ||
Mounting plate Yes | ||
Standards/Approvals RoHS, IEC 62208, EU RoHS, REACH | ||
IK Rating IK10 | ||
RoHS Status: Exempt
The Schneider Electric floor-standing modular electrical enclosure is designed for multi-purpose applications. With its sleek design and durable construction, this enclosure is perfect for protecting electrical components in various settings. The enclosure features a reversible door, a locking system with a handle, and removable parts for easy access and maintenance. It also comes with a range of environmental protections and certifications, ensuring high-quality performance and sustainability.
Floor-standing modular electrical enclosure suitable for various applications
Reversible door with a 4 points lock for added security
Removable parts for easy access and maintenance
Galvanised steel structure for durability
IP55 and IK10 degree of protection for environmental resistance
Green Premium label for environmentally-friendly design
