RS PRO Threaded Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 191-9478
- Brand:
- RS PRO
Subtotal (1 unit)*
£19.08
(exc. VAT)
£22.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.08 |
*price indicative
- RS Stock No.:
- 191-9478
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Device Type | Float | |
Mounting Type | Threaded | |
Switch Output | NO/NC | |
Body Material | Polyphenylene Sulfide | |
Cable Length | 1m | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +120°C | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 120V | |
Maximum Current | 600 mA | |
Gasket Material | Nitrile | |
Current Rating | 600 mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Device Type Float | ||
Mounting Type Threaded | ||
Switch Output NO/NC | ||
Body Material Polyphenylene Sulfide | ||
Cable Length 1m | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +120°C | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Gasket Material Nitrile | ||
Current Rating 600 mA | ||
- COO (Country of Origin):
- CN

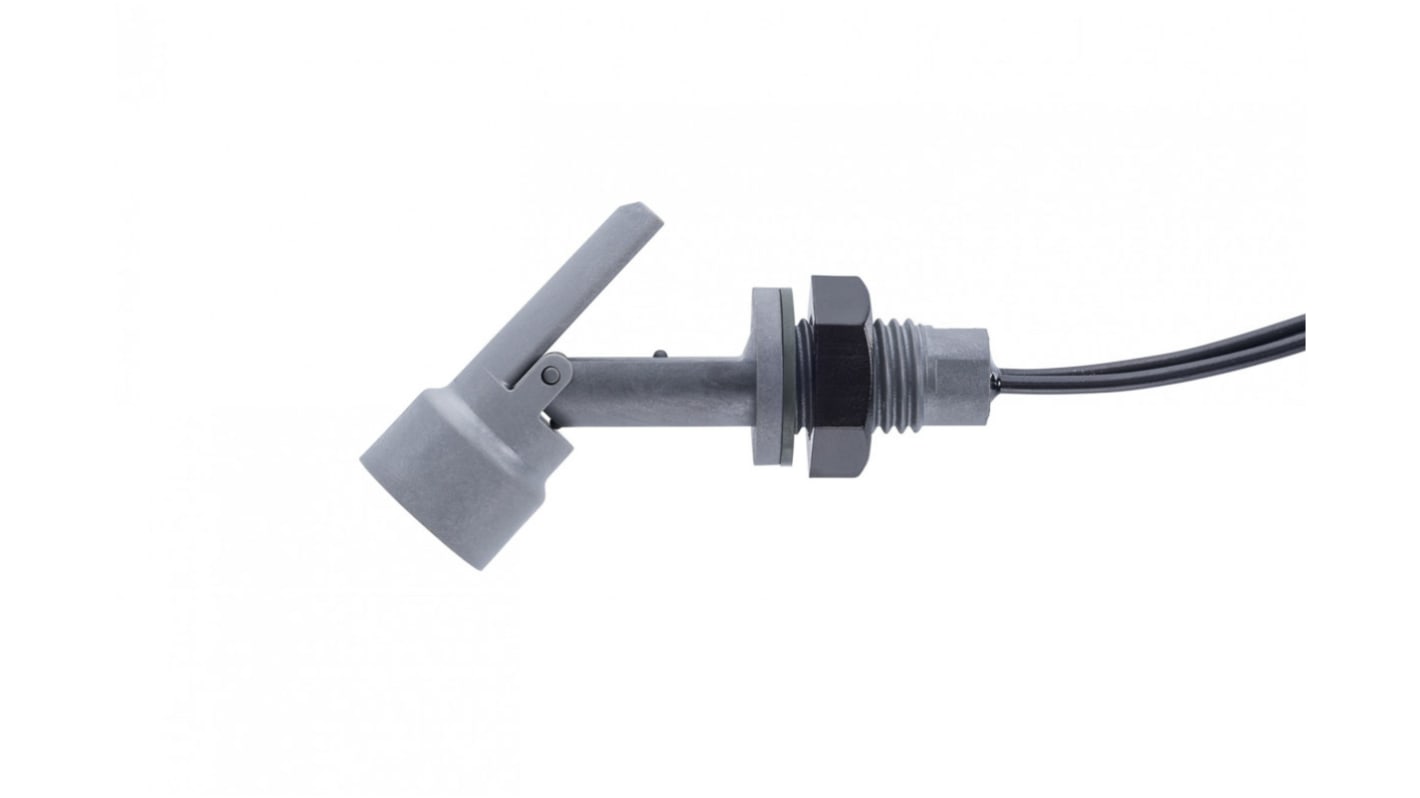

RS PRO Float Size
The RS PRO thread mounting float size has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of polypropylene sulphide and has a gasket material of nitrile. This device is particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids. Mounting of this series requires access to the inside of the tank. It is manufactured in a variety of materials with a choice of gasket materials, to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180°.
Features and Benefits
• Compact design
• Very low level sensing
• Suitable for low specific gravity liquids
• Cable length: 1m
• Operating temperature ranges between -10°C and 120°C
• Leadout: 100cm PVC 16/0.2
• Very low level sensing
• Suitable for low specific gravity liquids
• Cable length: 1m
• Operating temperature ranges between -10°C and 120°C
• Leadout: 100cm PVC 16/0.2
Applications
• Vending machines
• Commercial washing machines
• Evaporator units
• Commercial washing machines
• Evaporator units
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
