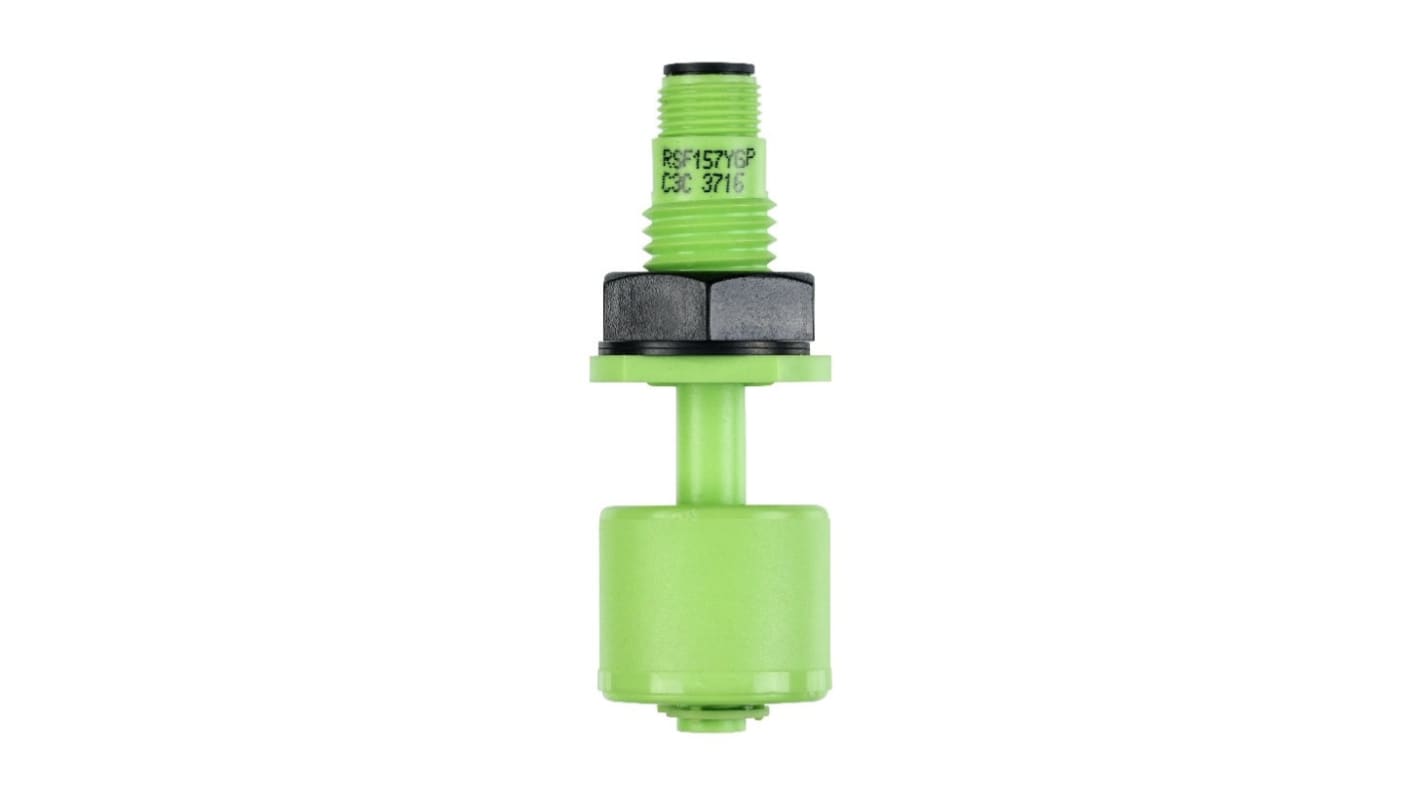

Sensata / Cynergy3 RSF150 Series Vertical Polyvinylidene Fluoride Float Switch, Float, NO/NC, 300V ac Max, 300V dc Max
- RS Stock No.:
- 124-2597
- Mfr. Part No.:
- RSF157HGP/RS
- Brand:
- Sensata / Cynergy3
13 In stock - FREE next working day delivery available
Added
Price Each
£48.06
(exc. VAT)
£57.67
(inc. VAT)
| Units | Per unit |
| 1 + | £48.06 |
- RS Stock No.:
- 124-2597
- Mfr. Part No.:
- RSF157HGP/RS
- Brand:
- Sensata / Cynergy3
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Cynergy3 Vertical Float Switch - M12 Connection
A range of Cynergy3 single switching point, vertical fluid level switches. These level switches can be mounted on the top or bottom of the tank but requires access to the tanks interior. Vertical level switches offer long-term reliability and minimal maintenance due to the simplistic construction. The switch can be changed from normally open to normally closed simply by removing and inverting the float.
Features and Benefits
• Compact Design
• Available in Nylon, Polypropylene, PPS and PVDF
• 25VA and 100VA
• M12 Connector
• Viton or Nitrile Gasket
• Available in Nylon, Polypropylene, PPS and PVDF
• 25VA and 100VA
• M12 Connector
• Viton or Nitrile Gasket
Applications
Cynergy3 vertical float switches are suitable for a wide range of applications including
• Vending machines
• Printing systems
• Chemical dosing equipment
• Vending machines
• Printing systems
• Chemical dosing equipment
Specifications
Attribute | Value |
|---|---|
| Device Type | Float |
| Mounting Type | Vertical |
| Switch Output | NO/NC |
| Body Material | Polyvinylidene Fluoride |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +105°C |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 300V |
| Maximum Current | 1 A |
| Gasket Material | Viton |
| Series | RSF150 |
