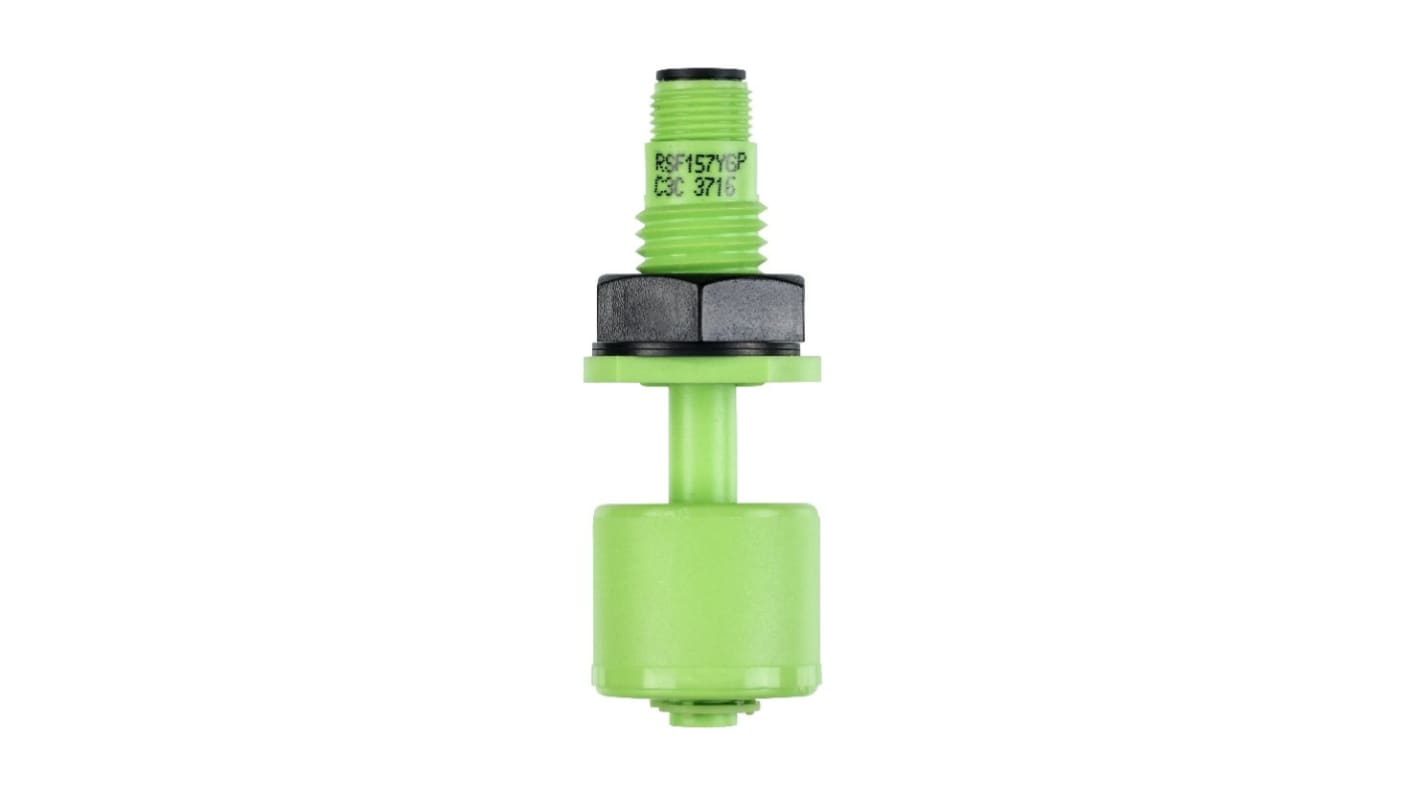

Sensata Cynergy3 RSF150 Series Vertical Polyvinylidene Fluoride Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 124-2596
- Mfr. Part No.:
- RSF157YGP/RS
- Brand:
- Sensata / Cynergy3
Discontinued
- RS Stock No.:
- 124-2596
- Mfr. Part No.:
- RSF157YGP/RS
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Cynergy3 | |
Device Type | Float | |
Mounting Type | Vertical | |
Switch Output | NO/NC | |
Body Material | Polyvinylidene Fluoride | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +105°C | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 120V | |
Maximum Current | 600 mA | |
Gasket Material | Viton | |
Series | RSF150 | |
Select all | ||
---|---|---|
Brand Sensata / Cynergy3 | ||
Device Type Float | ||
Mounting Type Vertical | ||
Switch Output NO/NC | ||
Body Material Polyvinylidene Fluoride | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +105°C | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Gasket Material Viton | ||
Series RSF150 | ||
- COO (Country of Origin):
- GB
Cynergy3 Vertical Float Switch - M12 Connection
A range of Cynergy3 single switching point, vertical fluid level switches. These level switches can be mounted on the top or bottom of the tank but requires access to the tanks interior. Vertical level switches offer long-term reliability and minimal maintenance due to the simplistic construction. The switch can be changed from normally open to normally closed simply by removing and inverting the float.
Features and Benefits
Compact Design
Available in Nylon, Polypropylene, PPS and PVDF
25VA and 100VA
M12 Connector
Viton or Nitrile Gasket
Available in Nylon, Polypropylene, PPS and PVDF
25VA and 100VA
M12 Connector
Viton or Nitrile Gasket
Applications
Cynergy3 vertical float switches are suitable for a wide range of applications including
Vending machines
Printing systems
Chemical dosing equipment
Vending machines
Printing systems
Chemical dosing equipment
