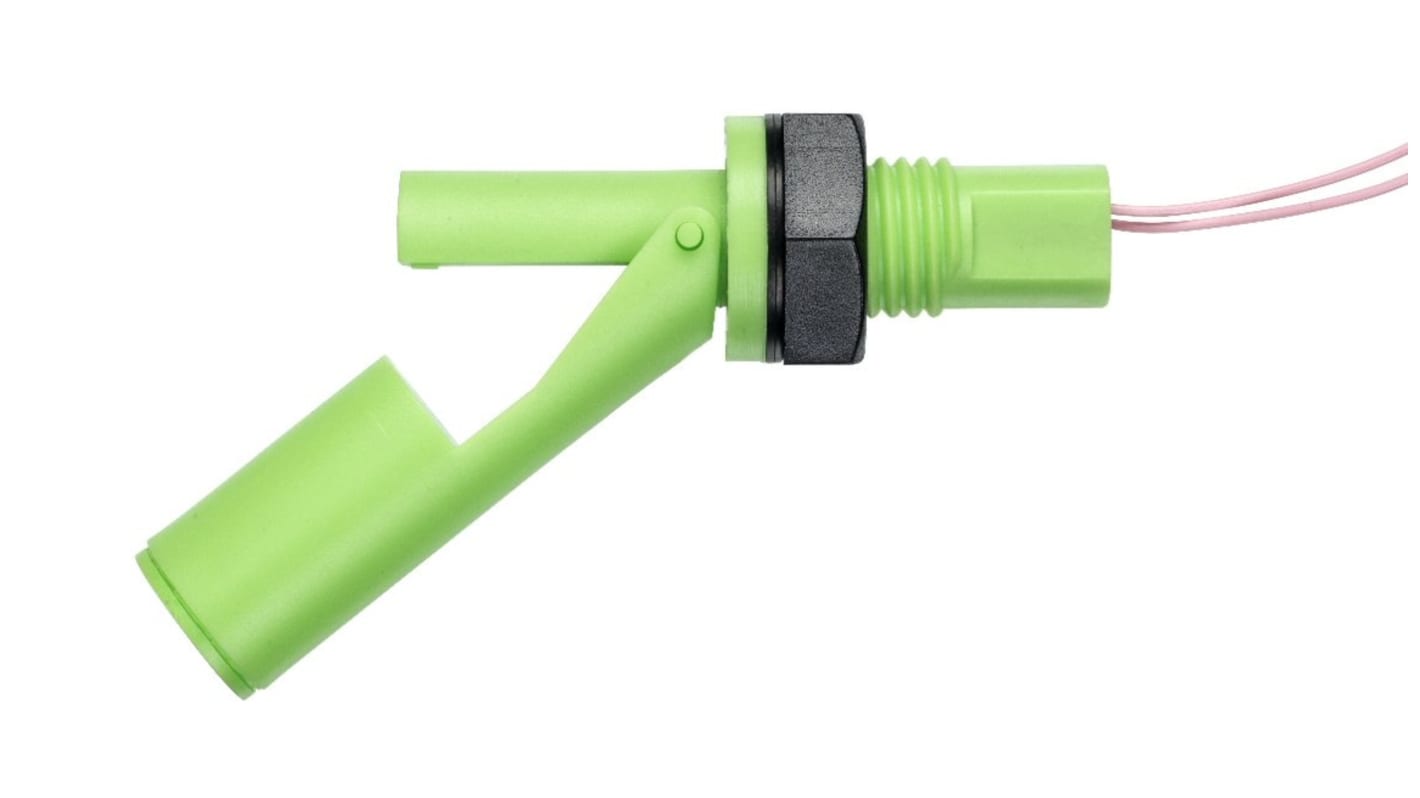

Cynergy3 Horizontal Float Switch Polyvinylidene Fluoride NO/NC Float 1m 300V, 300V

  • RS Stock No. 124-2562
  • Mfr. Part No. RSF47H100GF/RS
  • Brand Cynergy3
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Cynergy3 Horizontal Float Switch - Internal Mounting

Cynergy3 horizontal float switches are compact in size and available in a range of materials and gasket choices to suit a broad range of applications. Horizontal level switches offer long-term reliability from a simple and trusted design that requires no complex setup or calibration procedures.

Features and Benefits

• Compact design
• Flying lead or M12 plug connection
• Available in Nylon, Polypropylene, PPS or PVDF
• 25VA and 100VA
• Viton or nitrile gasket options
• Easily changeable switch action by rotating 180°

Applications

Cynergy3 horizontal float switches are suitable for a wide range of applications including
• Vending machines
• Commercial washing machines
• Evaporator units

Specifications
Attribute Value
Device Type Float
Mounting Type Horizontal
Switch Output NO/NC
Body Material Polyvinylidene Fluoride
Cable Length 1m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +105°C
Maximum AC Voltage 300V
Maximum DC Voltage 300V
Maximum Current 1 A
Gasket Material Nitrile
Series RSF40
8 In stock for FREE next working day delivery
Price Each
£ 36.75
(exc. VAT)
£ 44.10
(inc. VAT)
Units
Per unit
1 +
£36.75
