Ruland Beam Coupling, 38mm Outside Diameter, 14mm Bore, 57.2mm Length Coupler

View all Flexible Couplings
Bulk discount available

Subtotal (1 unit)*

£132.41

(exc. VAT)

£158.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£132.41
5 - 9£128.73
10 +£125.24

*price indicative

RS Stock No.:
689-9695
Mfr. Part No.:
FCMR38-14-14-SS
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Coupling Types

Beam Coupling

Bore

14mm

Outside Diameter

38mm

Length

57.2mm

Torque Rating

12.43Nm

Misalignment - Angular

3°

Misalignment - Parallel

0.76mm

Misalignment - Axial

0.38mm

COO (Country of Origin):
US

Stainless Steel Flexible Shaft Couplings


Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.

Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable

Note

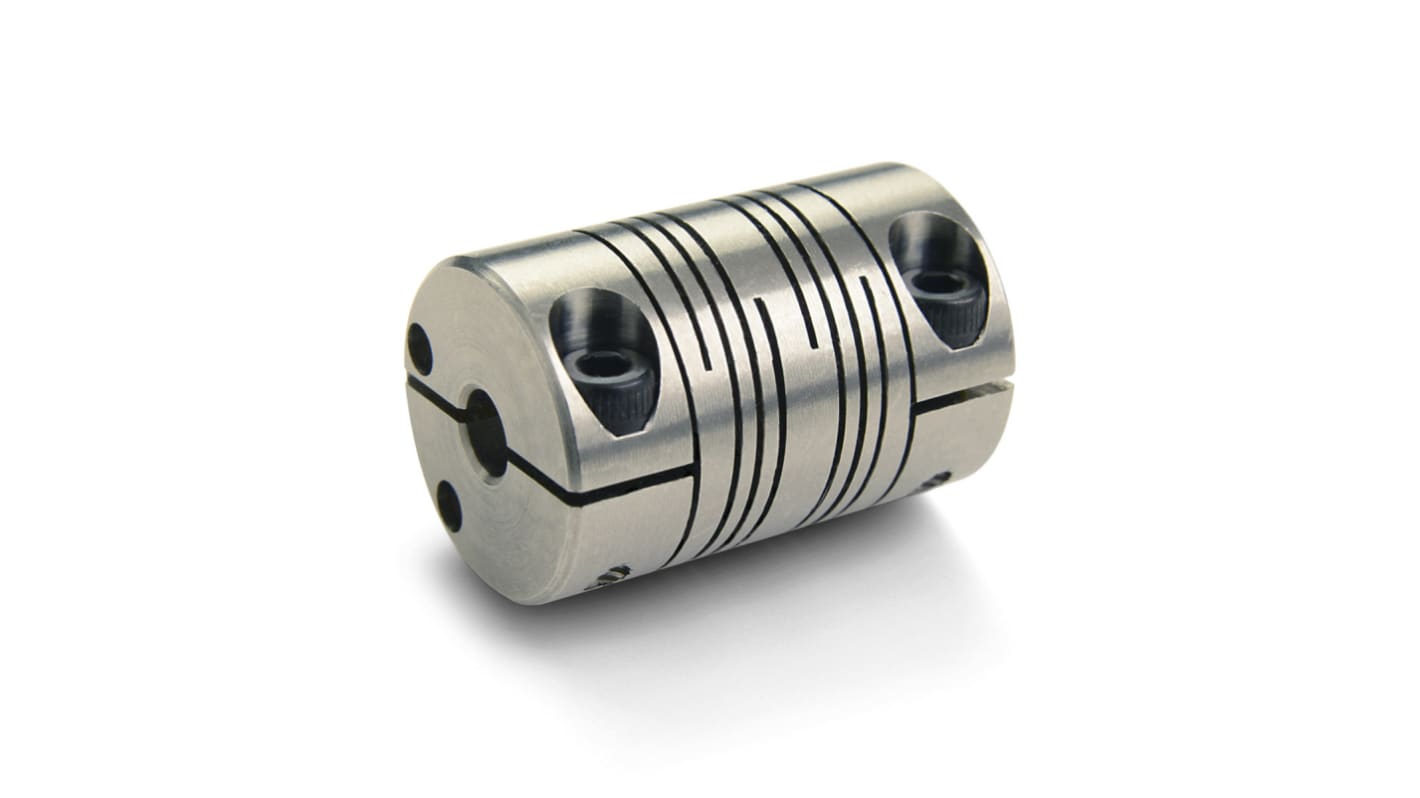

The coupling shown represents the clamp style fixing
