Ruland Beam Coupling, 25mm Outside Diameter, 8mm Bore, 31.8mm Length Coupler
- RS Stock No.:
- 477-9889
- Mfr. Part No.:
- PCMR25-10-8-A
- Brand:
- Ruland
21 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Price Each
£37.05
(exc. VAT)
£44.46
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £37.05 |
| 5 - 9 | £35.57 |
| 10 + | £34.82 |
- RS Stock No.:
- 477-9889
- Mfr. Part No.:
- PCMR25-10-8-A
- Brand:
- Ruland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Aluminium Flexible Shaft Couplings
Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.
Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Note

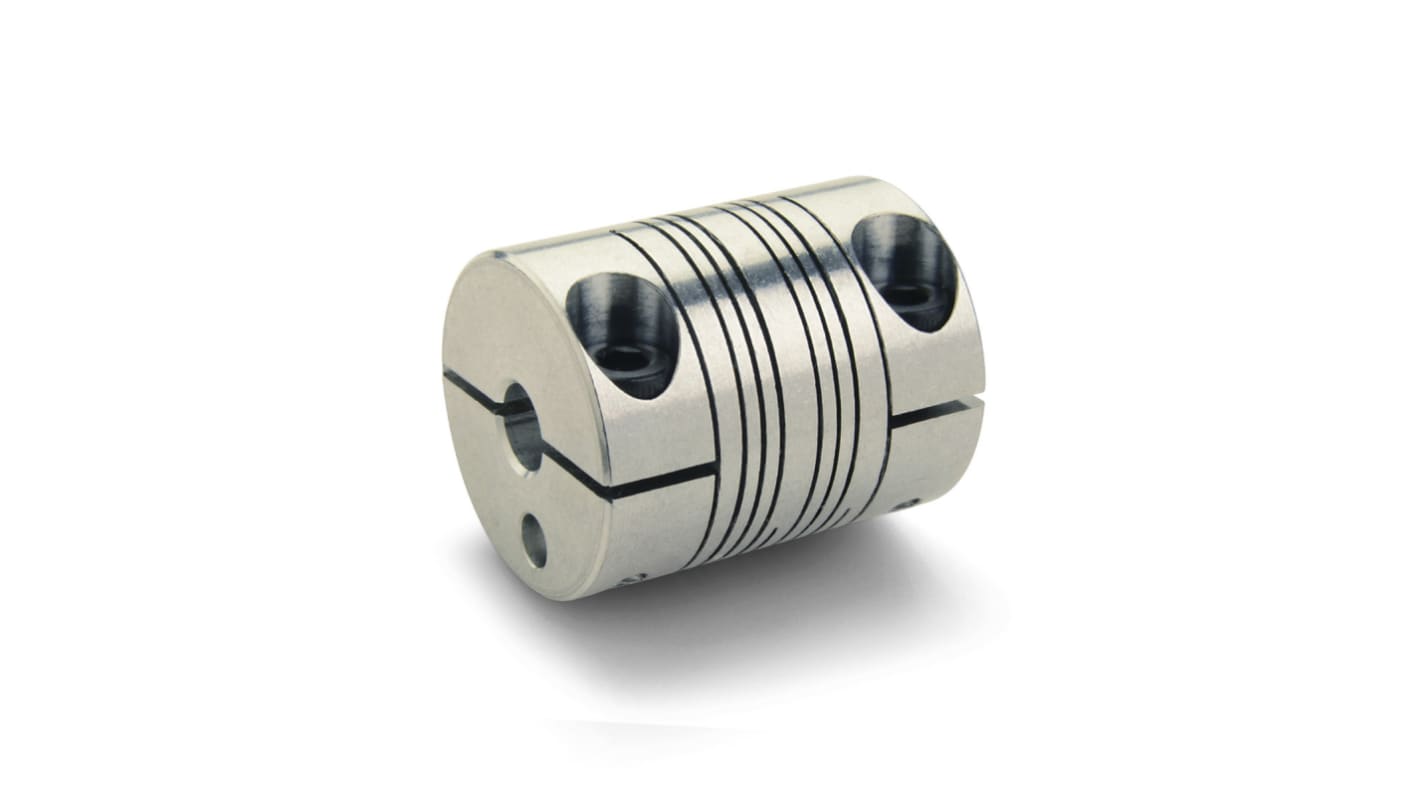

The coupling illustrated shows the Clamp style fixing.
Specifications
Attribute | Value |
|---|---|
| Bore | 8mm |
| Coupling Types | Beam Coupling |
| Outside Diameter | 25mm |
| Length | 31.8mm |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.38mm |
| Misalignment - Axial | 0.25mm |
