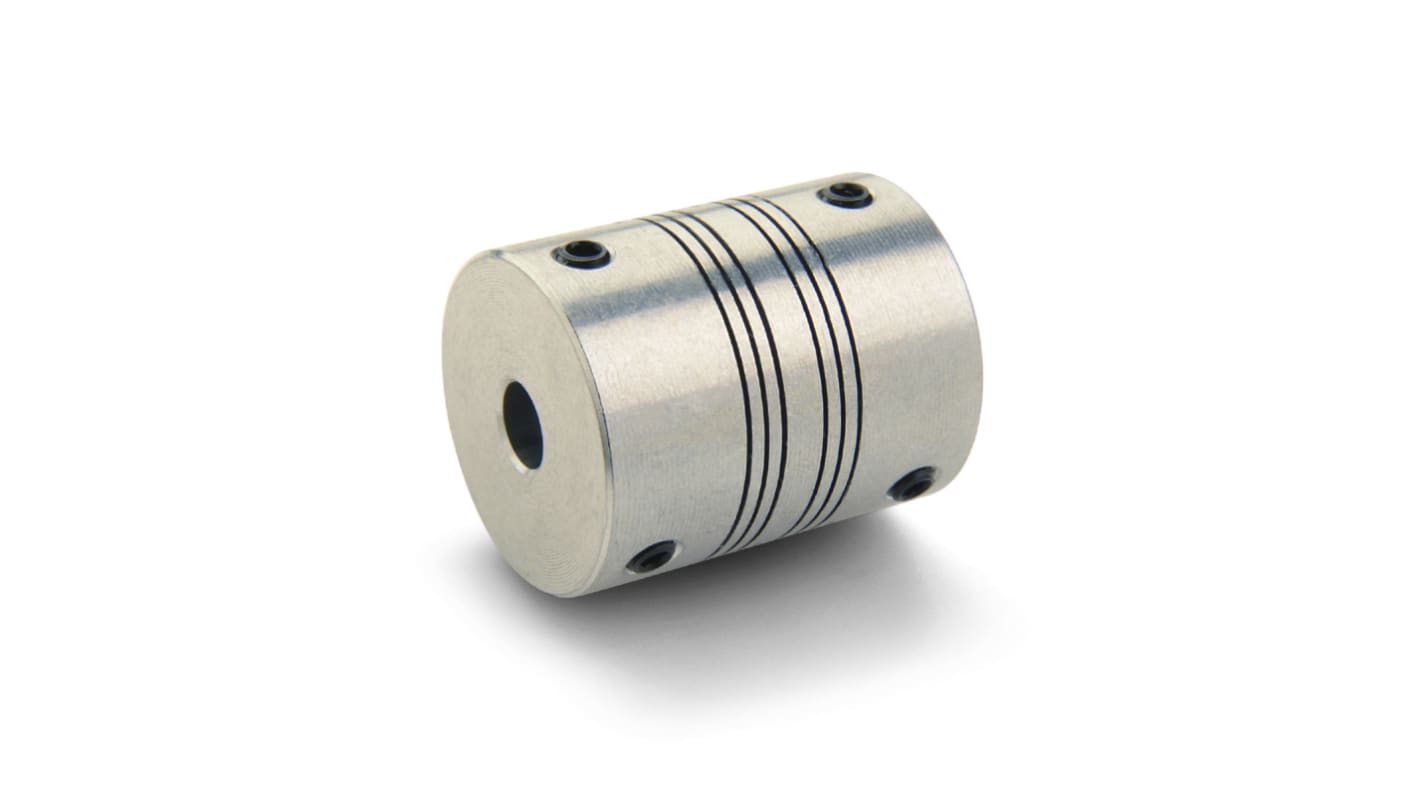

Ruland Beam Coupling, 25mm Outside Diameter, 10mm Bore, 31.8mm Length Coupler
- RS Stock No.:
- 364-3098
- Mfr. Part No.:
- PSR16-10MM-3/8"-A
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£28.97
(exc. VAT)
£34.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £28.97 |
5 - 9 | £27.81 |
10 - 24 | £27.25 |
25 + | £26.66 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£38.63
(exc. VAT)
£46.36
(inc. VAT)
- RS Stock No.:
- 364-3098
- Mfr. Part No.:
- PSR16-10MM-3/8"-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 10mm | |
Coupling Types | Beam Coupling | |
Outside Diameter | 25mm | |
Length | 31.8mm | |
Misalignment - Angular | 3° | |
Misalignment - Parallel | 0.38mm | |
Misalignment - Axial | 0.25mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 10mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 25mm | ||
Length 31.8mm | ||
Misalignment - Angular 3° | ||
Misalignment - Parallel 0.38mm | ||
Misalignment - Axial 0.25mm | ||
- COO (Country of Origin):
- US
Aluminium Flexible Shaft Couplings
Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.
Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Note
The coupling illustrated shows the Clamp style fixing.
