- RS Stock No.:
- 268-9922
- Mfr. Part No.:
- PHF FX41-42X75
- Brand:
- SKF
Available to back order for despatch 13/01/2025
Price Each
£20.91
(exc. VAT)
£25.09
(inc. VAT)
Units | Per unit |
---|---|
1 + | £20.91 |
- RS Stock No.:
- 268-9922
- Mfr. Part No.:
- PHF FX41-42X75
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

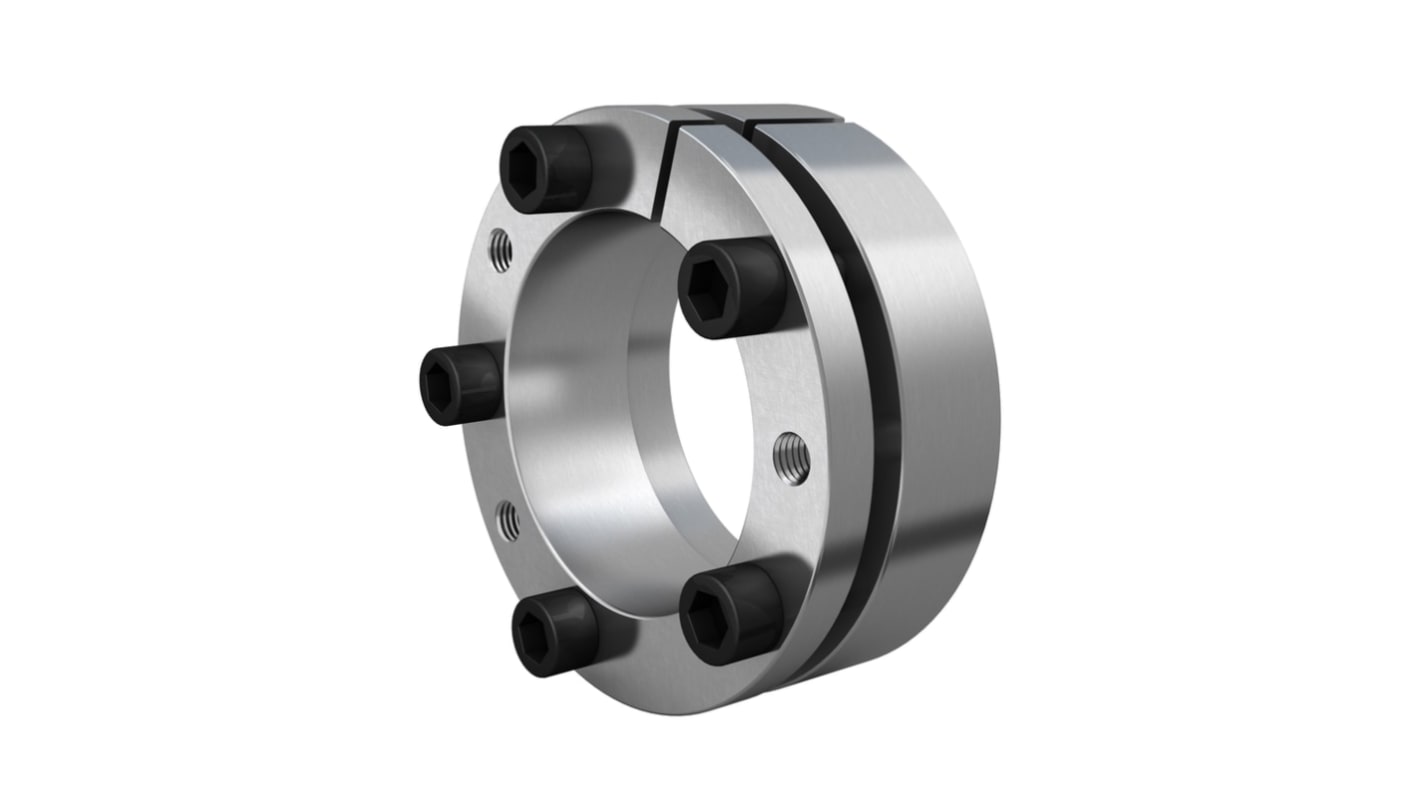

The SKF bushing and hub is available in many variant, offering specific benefit in power transmission application ranging from automotive to papermaking. This bushing is designed to attach component to shaft using a 360-degree interference fit, with no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screw.
Manufactured according to established market standard
Available in a wide range of metric and imperial bore size
Easily installed and removed using basic tool
True zero backlash
Reduced machining and material cost
Available in a wide range of metric and imperial bore size
Easily installed and removed using basic tool
True zero backlash
Reduced machining and material cost
Specifications
Attribute | Value |
---|---|
Bore | 42mm |
Coupling Types | FX Keyless Bushing |
Outside Diameter | 75mm |
Length | 41mm |
Fastening Type | Clamping |
Torque Rating | 2050Nm |
