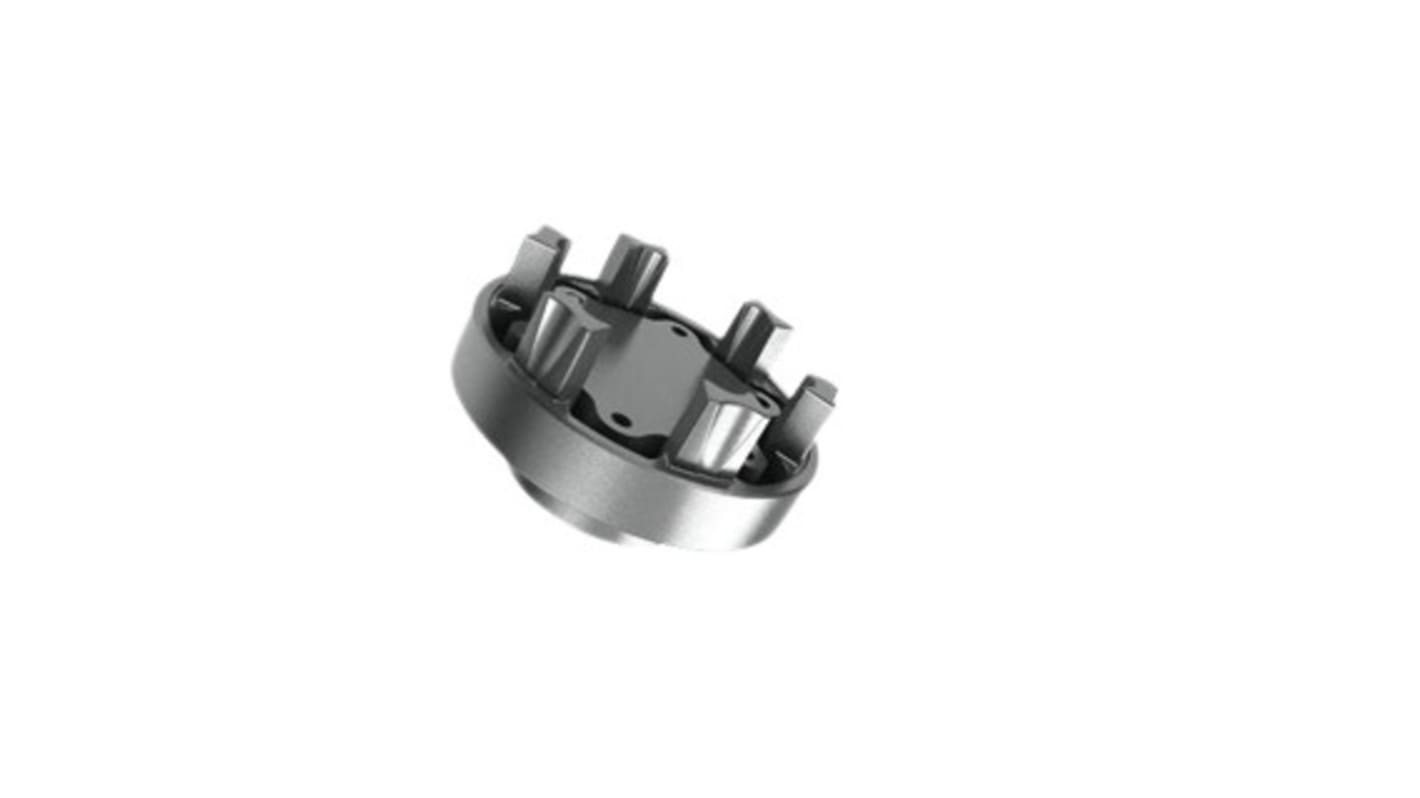

OPTIBELT Flex Coupling, 125mm Outside Diameter, 55mm Bore, 100mm Length Flexible Coupling
- RS Stock No.:
- 267-6091
- Mfr. Part No.:
- DP125KB
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£113.57
(exc. VAT)
£136.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 999,999,997 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £113.57 |
*price indicative
- RS Stock No.:
- 267-6091
- Mfr. Part No.:
- DP125KB
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | OPTIBELT | |
Coupling Types | Flex Coupling | |
Bore | 55mm | |
Outside Diameter | 125mm | |
Length | 100mm | |
Torque Rating | 240Nm | |
Series | PEX | |
Select all | ||
---|---|---|
Brand OPTIBELT | ||
Coupling Types Flex Coupling | ||
Bore 55mm | ||
Outside Diameter 125mm | ||
Length 100mm | ||
Torque Rating 240Nm | ||
Series PEX | ||
- COO (Country of Origin):
- CN
The OPTIBELT claw coupling used with flexible elements to provide flexible connection of shafts. This couplings can be used in the whole of machine construction wherever a reliable shaft connection is needed. This claw couplings are of the plug in type for installation.
Easy to install
Long life span
Three piece design
Maximum operational safety
5100 rpm maximum rotation speed
Long life span
Three piece design
Maximum operational safety
5100 rpm maximum rotation speed
