- RS Stock No.:
- 171-6708
- Mfr. Part No.:
- 725.16.2020
- Brand:
- Huco
8 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£31.15
(exc. VAT)
£37.38
(inc. VAT)
Units | Per unit |
1 - 4 | £31.15 |
5 - 9 | £29.91 |
10 - 24 | £29.28 |
25 + | £28.66 |
- RS Stock No.:
- 171-6708
- Mfr. Part No.:
- 725.16.2020
- Brand:
- Huco
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

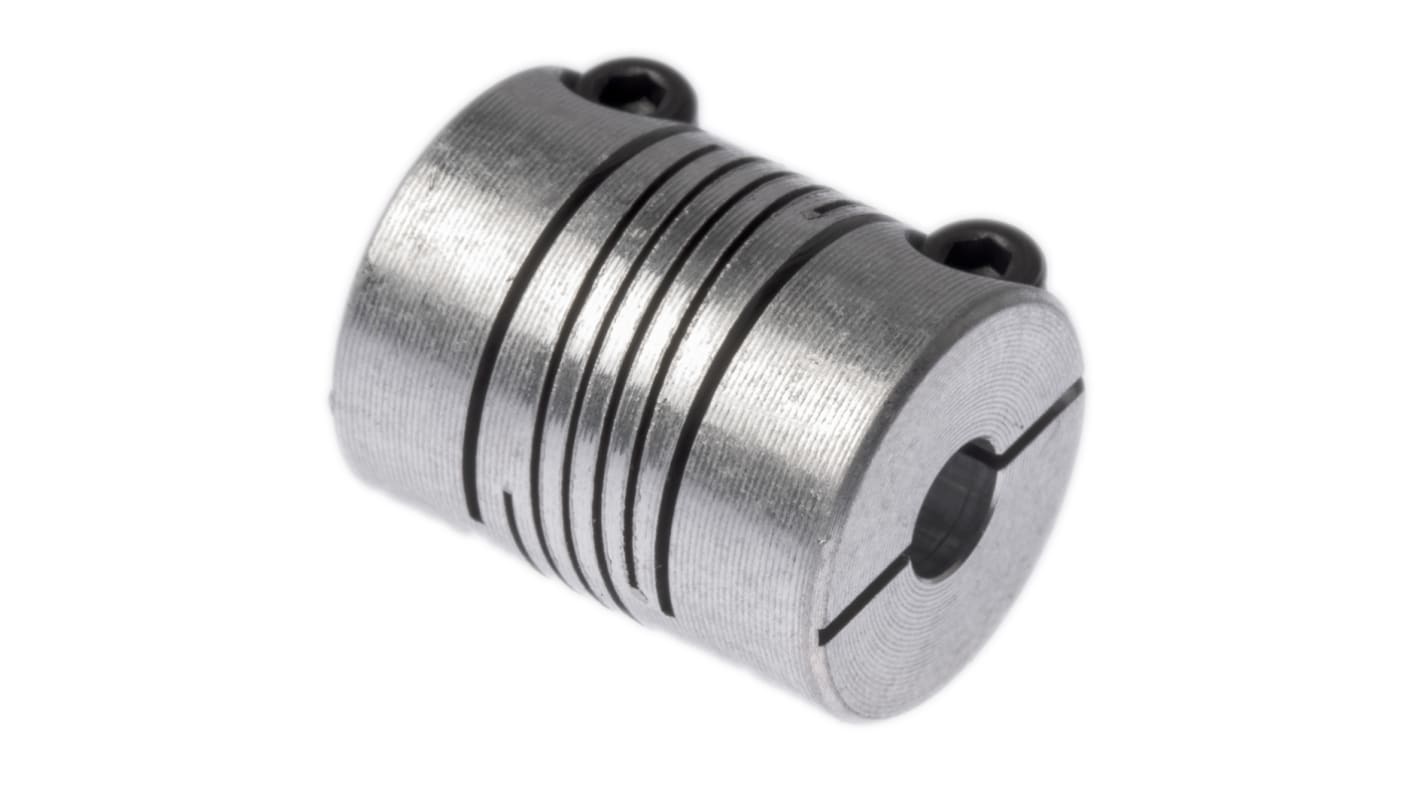

Huco Coupling
The Huco coupling has a 16mm OD. This is multi-beam type 3, aluminium L 168 clamp 5mm x 5mm coupling. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. Its 3 start helical cut design provides higher torque capability and reduced wind-up as compared to single beam versions.
Features and Benefits
• Torsionally rigid design
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
Applications
• Stepper and high-end servo drives
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
• Encoders
• General purpose light-duty power transmission
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
• Encoders
• General purpose light-duty power transmission
Specifications
Attribute | Value |
---|---|
Bore | 5mm |
Coupling Types | Beam Coupling |
Outside Diameter | 16mm |
Length | 20.3mm |
Torque Rating | 1.5Nm |
Misalignment - Angular | 5° |
Misalignment - Parallel | 0.12mm |
