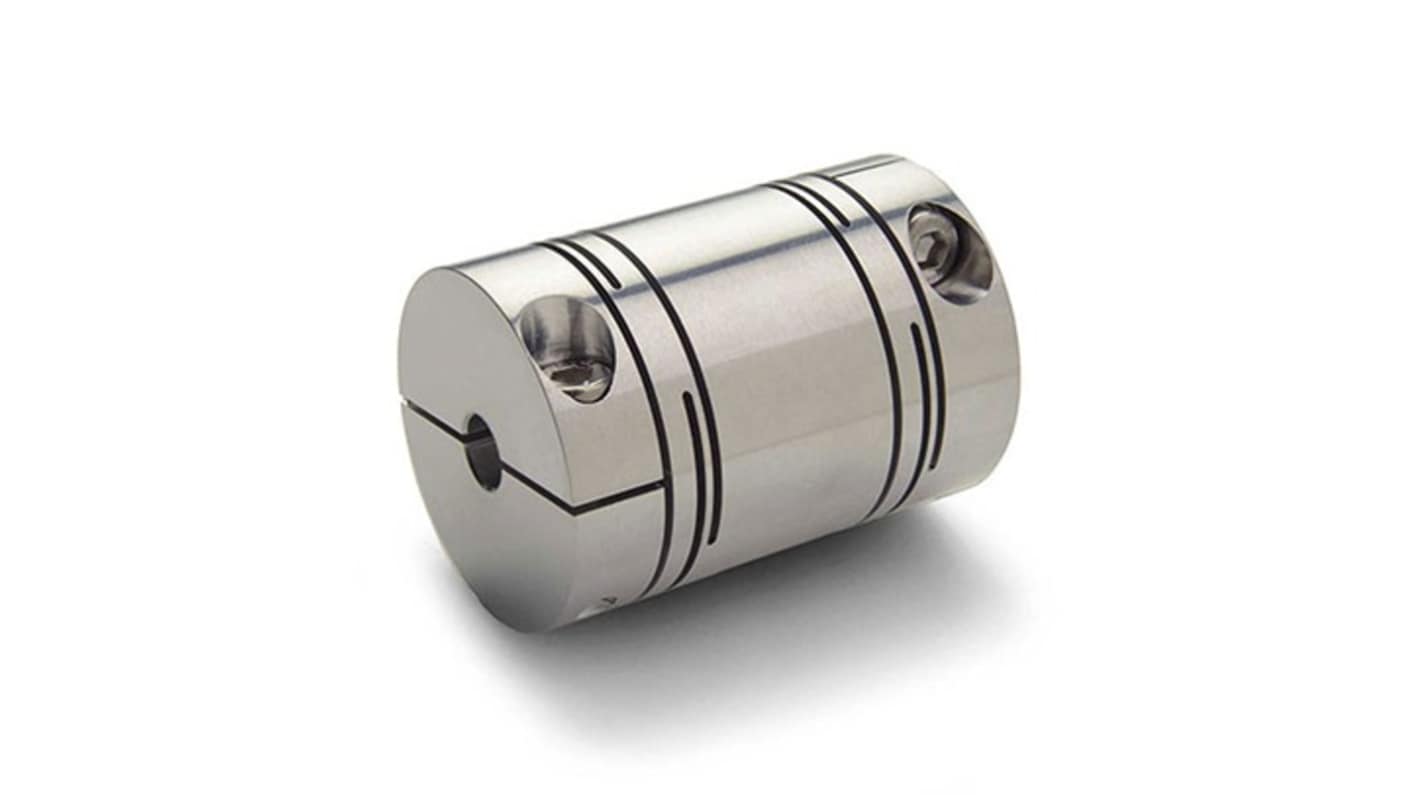

Ruland Flexible Beam, 13mm Outside Diameter, 3 mm, 6 mm Bore, 20mm Length Flexible Coupling

Subtotal (1 unit)*

£122.96

(exc. VAT)

£147.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£122.96

*price indicative

RS Stock No.:
604-801
Mfr. Part No.:
MRLC13-6-3-A
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Bore

3 mm, 6 mm

Coupling Types

Flexible Beam

Outside Diameter

13mm

Length

20mm

Fastening Type

Clamp

Torque Rating

0.8Nm

COO (Country of Origin):
IE

LCD Preset Counter - Codix 907 / 908


Pulse, time, position, adding and subtracting functions
Menu driven programming
Decade keypad, for each digit one key
2 x 6 digit display with preset annunciators
Display from -999999 up to +999999
Max switching voltage: 250 Vac / 110 Vdc
Max switching current: 3 A ac/dc
max switching capacity: 750 VA / 90 W
High protection rating (IP65)

The Ruland Clamp Style Slit Coupling is manufactured from a single piece of material and features two sets of intermittent slit cuts. This design creates a maintenance-free coupling with high torsional stiffness compared to similar couplings, such as beam types. It is commonly used in precise positioning applications found in semiconductor, medical, and test and measurement equipment.

Added torque and misalignment capabilities compared to the short style
Manufactured from 7075 aluminum for lightweight and low inertia
Balanced design for reduced vibration at speeds
RoHS compliant
REACH compliant
Zero backlash


Kubler Panel Mounting 48 x 48 - Electronic Counters


Range of Resettable Counters / Timers / Rate Meters. All have 45 x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years.
