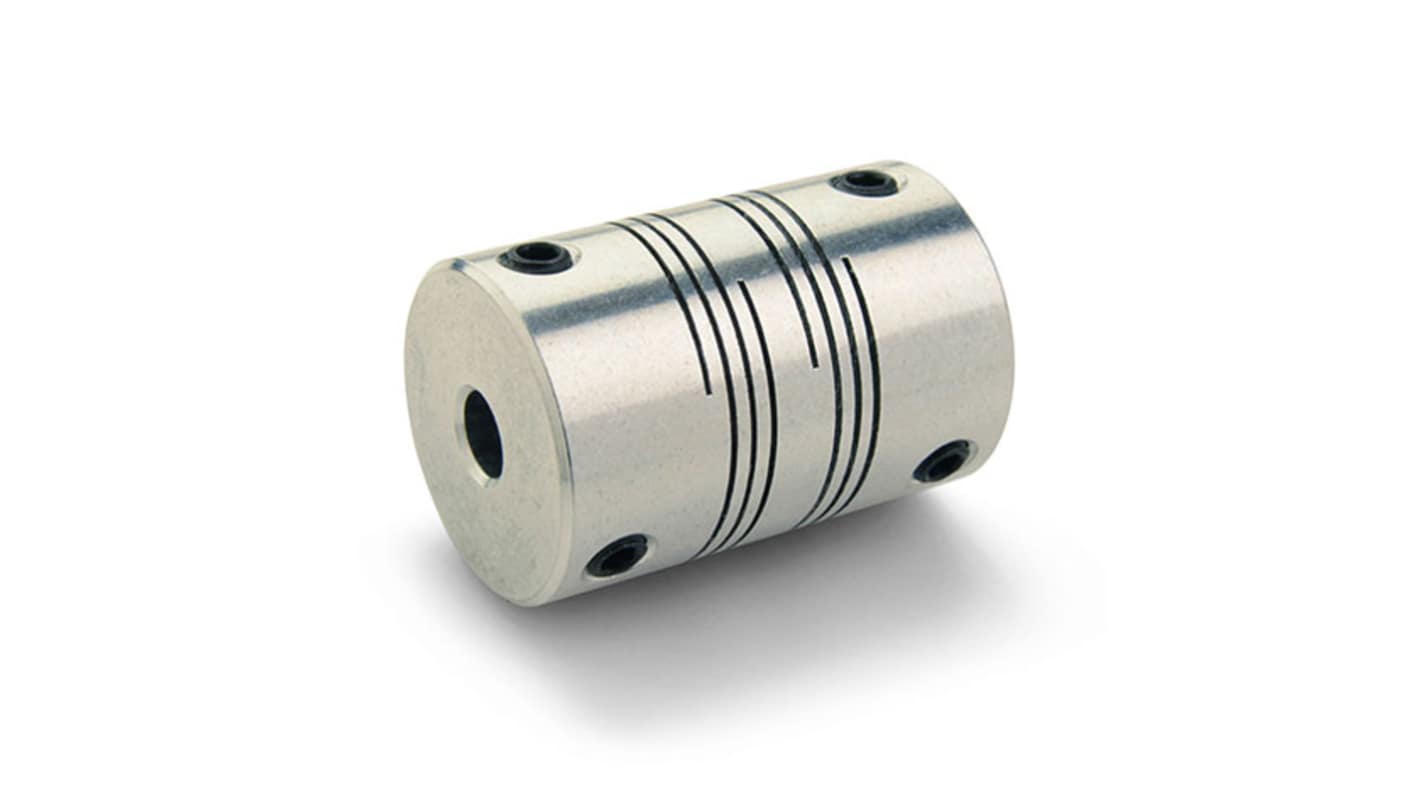

Ruland Beam Coupling, 31.8mm Outside Diameter, 9 mm, 15 mm Bore, 44.5mm Length Flexible Beam Coupling
- RS Stock No.:
- 593-554
- Mfr. Part No.:
- FSMR32-15-9-A
- Brand:
- Ruland
Subtotal (1 unit)*
£73.28
(exc. VAT)
£87.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £73.28 |
*price indicative
- RS Stock No.:
- 593-554
- Mfr. Part No.:
- FSMR32-15-9-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam Coupling | |
Bore | 9 mm, 15 mm | |
Outside Diameter | 31.8mm | |
Length | 44.5mm | |
Fastening Type | Set Screw | |
Torque Rating | 4.86Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 9 mm, 15 mm | ||
Outside Diameter 31.8mm | ||
Length 44.5mm | ||
Fastening Type Set Screw | ||
Torque Rating 4.86Nm | ||
- COO (Country of Origin):
- US
The Ruland Six beam coupling is engineered to deliver exceptional performance in light duty power transmission applications. With a unique design that features two sets of spiral cuts, it ensures higher torque capacity and reduced windup. Crafted from a single piece of 7075 aluminium, this coupling is lightweight yet robust, making it ideal for both dynamic and static conditions. The product's zero-backlash capability paired with its balanced design minimises vibration even at high speeds of up to 6,000 RPM. Its construction under strict controls in a USA factory guarantees reliability, while adherence to RoHS3 and REACH compliance standards further enhances its appeal for environmentally-conscious users.
Zero-backlash design ensures precise movement and responsiveness
Manufactured from high-quality 7075 aluminium for optimal strength-to-weight ratio
Designed for high-speed applications, capable of operating at speeds up to 6,000 RPM
Constructed using proprietary processes for improved reliability
Compatible with various shafts, allowing for versatile installation
Features a balanced design that reduces vibration during operation
Compliant with RoHS3 and REACH standards, making it environmentally friendly
Built to withstand angular and parallel misalignment within defined limits
Manufactured from high-quality 7075 aluminium for optimal strength-to-weight ratio
Designed for high-speed applications, capable of operating at speeds up to 6,000 RPM
Constructed using proprietary processes for improved reliability
Compatible with various shafts, allowing for versatile installation
Features a balanced design that reduces vibration during operation
Compliant with RoHS3 and REACH standards, making it environmentally friendly
Built to withstand angular and parallel misalignment within defined limits
