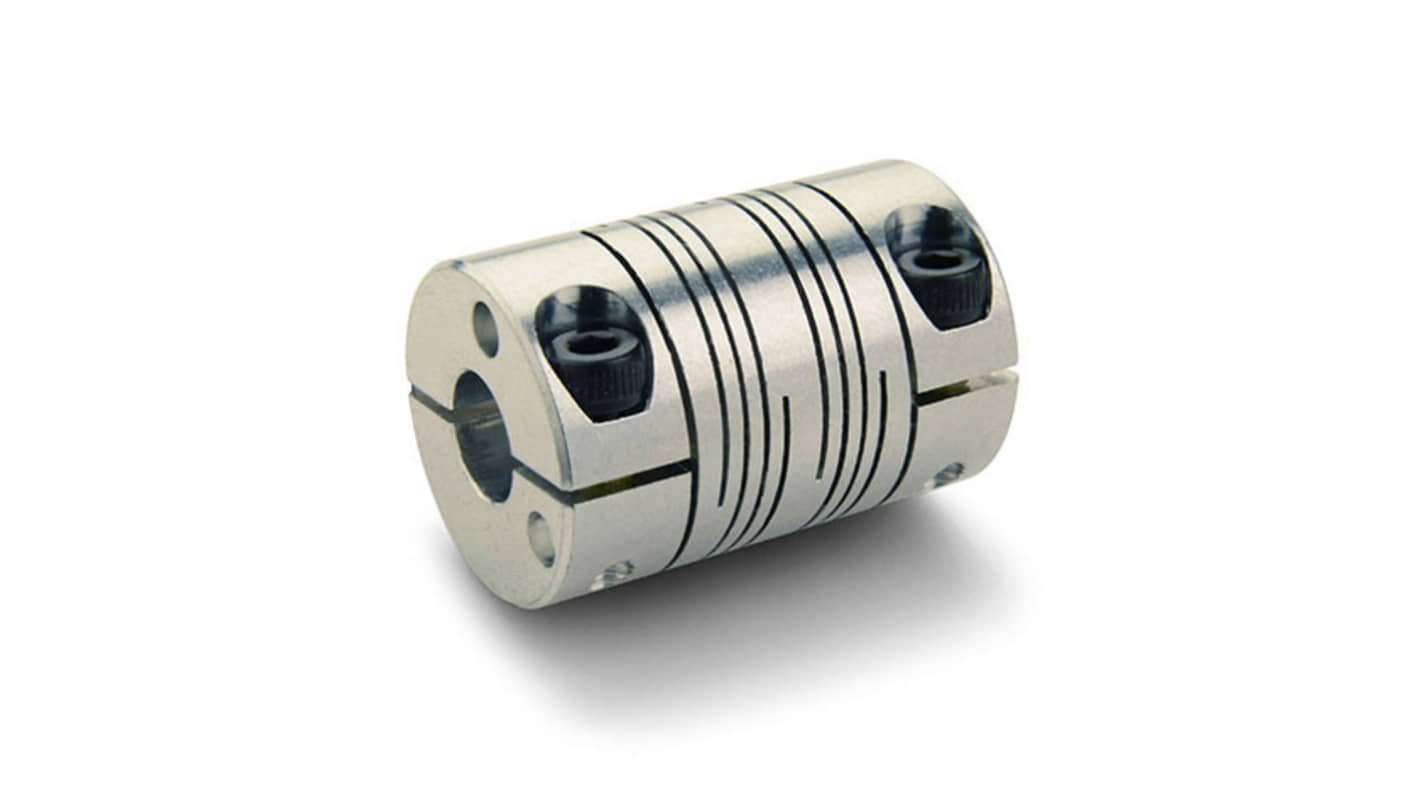

Ruland Beam Coupling, 38.1mm Outside Diameter, 10 mm, 13 mm Bore, 57.2mm Length Flexible Beam Coupling
- RS Stock No.:
- 592-409
- Mfr. Part No.:
- FCMR38-13-10-A
- Brand:
- Ruland
Subtotal (1 unit)*
£108.80
(exc. VAT)
£130.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £108.80 |
*price indicative
- RS Stock No.:
- 592-409
- Mfr. Part No.:
- FCMR38-13-10-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore | 10 mm, 13 mm | |
| Coupling Types | Beam Coupling | |
| Outside Diameter | 38.1mm | |
| Length | 57.2mm | |
| Fastening Type | Clamp | |
| Torque Rating | 12.43Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Bore 10 mm, 13 mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 38.1mm | ||
Length 57.2mm | ||
Fastening Type Clamp | ||
Torque Rating 12.43Nm | ||
- COO (Country of Origin):
- US
The Ruland Clamp style six beam coupling designed specifically for precise alignment in light-duty power transmission applications. Constructed from a single piece of 7075 aluminium, it boasts superior torque capacity and reduced windup. This coupling effectively joins servo motors to lead screws while offering a zero-backlash feature, ensuring smooth operation even at speeds reaching 6,000 RPM. The innovative design includes three spiral cuts that enhance vibration reduction and support a balanced motion, creating a reliable solution for demanding environments. With anti-vibration hardware, installation becomes efficient and consistent, ensuring optimal performance in various applications.
Includes Nypatch anti-vibration hardware for consistent seating
Provides full bearing support for increased reliability
Perfect for dynamic and static torque applications
Manufactured in the USA, ensuring high quality standards
Features a balanced design for reduced vibration in high-speed applications
Provides full bearing support for increased reliability
Perfect for dynamic and static torque applications
Manufactured in the USA, ensuring high quality standards
Features a balanced design for reduced vibration in high-speed applications
