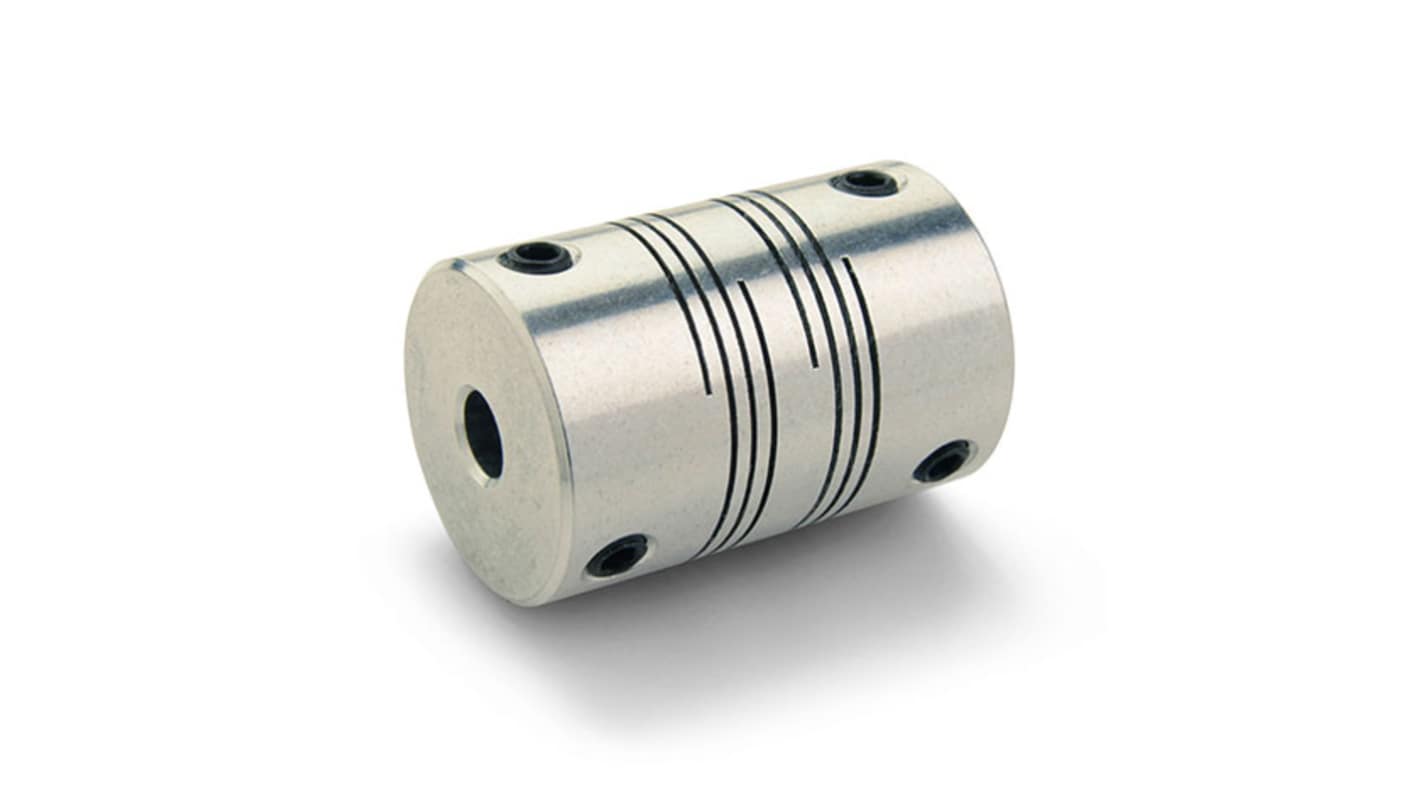

Ruland Beam Coupling, 31.8mm Outside Diameter, 9 mm, 12 mm Bore, 44.5mm Length Flexible Beam Coupling
- RS Stock No.:
- 591-538
- Mfr. Part No.:
- FSMR32-12-9-A
- Brand:
- Ruland
Subtotal (1 unit)*
£73.28
(exc. VAT)
£87.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £73.28 |
*price indicative
- RS Stock No.:
- 591-538
- Mfr. Part No.:
- FSMR32-12-9-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam Coupling | |
Bore | 9 mm, 12 mm | |
Outside Diameter | 31.8mm | |
Length | 44.5mm | |
Fastening Type | Set Screw | |
Torque Rating | 14.6Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 9 mm, 12 mm | ||
Outside Diameter 31.8mm | ||
Length 44.5mm | ||
Fastening Type Set Screw | ||
Torque Rating 14.6Nm | ||
- COO (Country of Origin):
- US
The Ruland Six beam coupling is expertly crafted for seamless integration in light-duty power transmission applications. With precision engineering at its core, this model features a robust design that allows for superior torque capacity and reduced windup, making it an ideal choice for coupling servo motors to lead screws. The incorporation of high-quality 7075 aluminium ensures a lightweight yet durable solution, while its zero-backlash mechanism guarantees exceptional performance, even at high rotational speeds of up to 6,000 RPM. Designed and manufactured under strict quality controls in the USA, this product stands out with its meticulous attention to detail and compliance with RoHS3 and REACH standards. User-friendly installation instructions further enhance its appeal, ensuring an efficient coupling process with optimal alignment.
Meets and exceeds DIN 912 12.9 standards for torque capabilities
Includes four M6 screws for secure attachment
Angular and parallel misalignment tolerances facilitate flexible application
Offers a dynamic torque rating tailored for both reversing and non-reversing applications
Temperature resistant from -40°F to 225°F for versatile use
Manufactured in the USA, ensuring quality and compliance with industry standards
Includes four M6 screws for secure attachment
Angular and parallel misalignment tolerances facilitate flexible application
Offers a dynamic torque rating tailored for both reversing and non-reversing applications
Temperature resistant from -40°F to 225°F for versatile use
Manufactured in the USA, ensuring quality and compliance with industry standards
