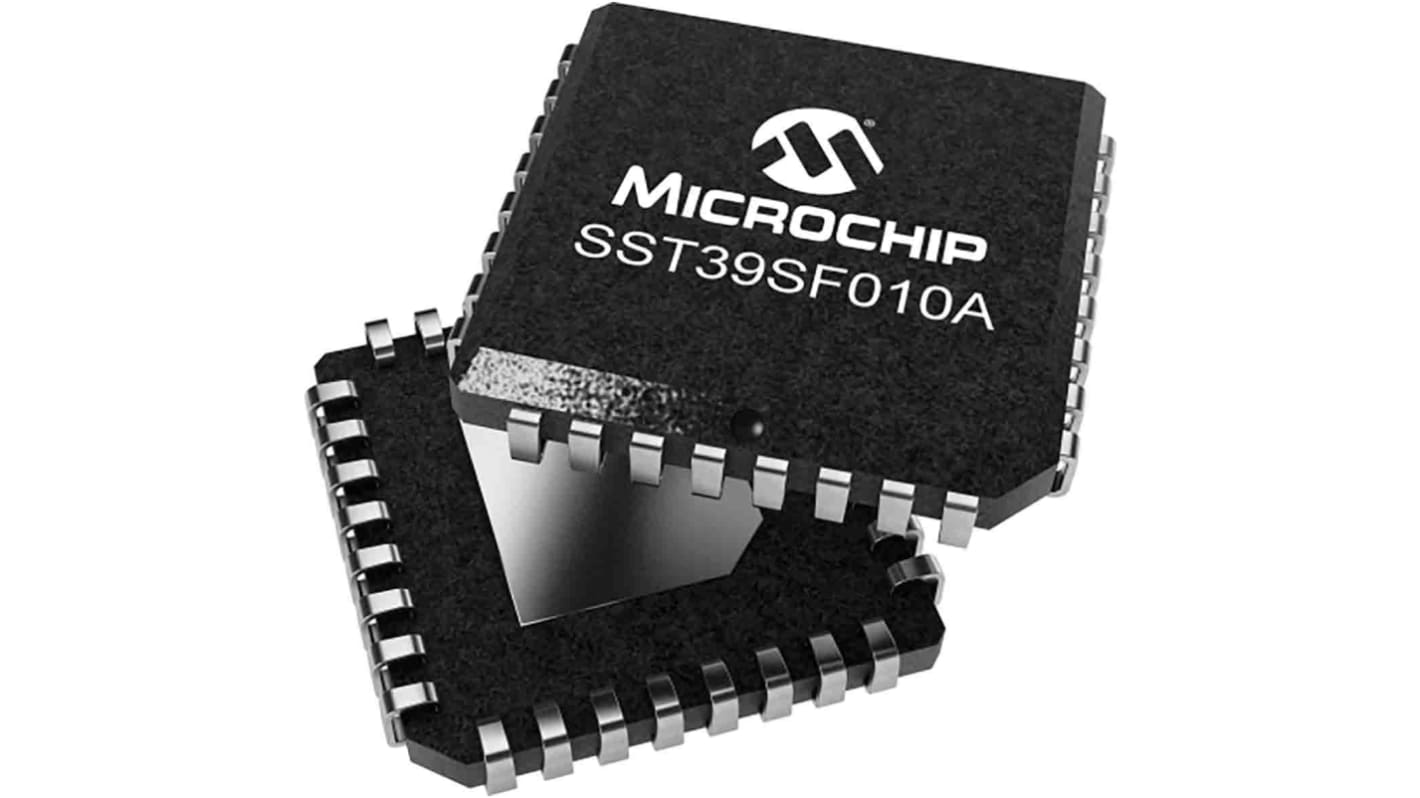

Microchip NOR 1Mbit Parallel Flash Memory 32-Pin PLCC-32, SST39SF010A-55-4I-NHE-T
- RS Stock No.:
- 197-5864
- Mfr. Part No.:
- SST39SF010A-55-4I-NHE-T
- Brand:
- Microchip
Available to back order for despatch 18/06/2024
Added
Price Each (On a Reel of 750)
£1.58
(exc. VAT)
£1.90
(inc. VAT)
| Units | Per unit | Per Reel* |
| 750 + | £1.58 | £1,185.00 |
| *price indicative | ||
- RS Stock No.:
- 197-5864
- Mfr. Part No.:
- SST39SF010A-55-4I-NHE-T
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The Microchip SST39SF010A series is a CMOS multi-purpose flash (MPF) devices manufactured with SST proprietary, high performance CMOS superflash technology. The split-gate cell design and thick oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. The SST39SF010A write (program or erase) with a 4.5-5.5V power supply.
Single 4.5-5.5V read and write operations
Low power consumption
Fast read access time
All devices are RoHS compliant
Sector-erase capability.
Low power consumption
Fast read access time
All devices are RoHS compliant
Sector-erase capability.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 1Mbit |
| Interface Type | Parallel |
| Package Type | PLCC-32 |
| Pin Count | 32 |
| Organisation | 128 k x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Block Organisation | Symmetrical |
| Length | 14mm |
| Height | 2.84mm |
| Width | 11.5mm |
| Dimensions | 11.5 x 14 x 2.84mm |
| Number of Words | 128kB |
| Series | SST39 |
| Maximum Random Access Time | 70ns |
| Number of Bits per Word | 8bit |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
