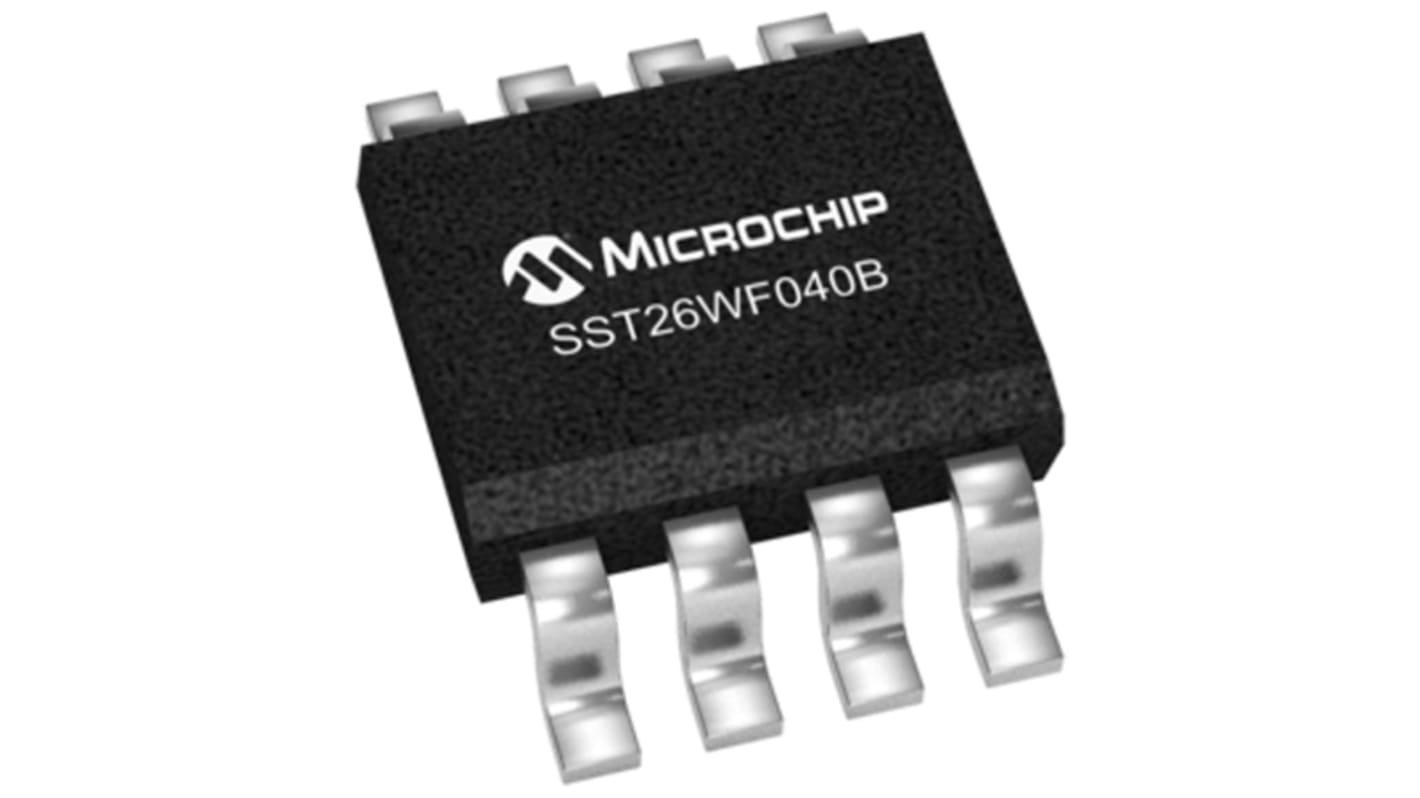

Microchip 4Mbit SPI, SQI Flash Memory 8-Pin SOIC, SST26WF040B-104I/SN
- RS Stock No.:
- 111-5574
- Mfr. Part No.:
- SST26WF040B-104I/SN
- Brand:
- Microchip
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 111-5574
- Mfr. Part No.:
- SST26WF040B-104I/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 4Mbit | |
| Interface Type | SPI, SQI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 1M x 4 bit, 2M x 2 bit, 4M x 1 bit | |
| Mounting Type | Surface Mount | |
| Cell Type | Split Gate | |
| Minimum Operating Supply Voltage | 1.65 V | |
| Maximum Operating Supply Voltage | 1.95 V | |
| Dimensions | 4.9 x 6 x 1.25mm | |
| Number of Bits per Word | 1 bit, 2 bit, 4 bit | |
| Minimum Operating Temperature | -40 °C | |
| Number of Words | 1M, 2M, 4M | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Memory Size 4Mbit | ||
Interface Type SPI, SQI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 1M x 4 bit, 2M x 2 bit, 4M x 1 bit | ||
Mounting Type Surface Mount | ||
Cell Type Split Gate | ||
Minimum Operating Supply Voltage 1.65 V | ||
Maximum Operating Supply Voltage 1.95 V | ||
Dimensions 4.9 x 6 x 1.25mm | ||
Number of Bits per Word 1 bit, 2 bit, 4 bit | ||
Minimum Operating Temperature -40 °C | ||
Number of Words 1M, 2M, 4M | ||
Maximum Operating Temperature +85 °C | ||
SST26WF040B/080B/016B Serial Quad I/O (SQI) SuperFlash® Flash Memory
From Microchip the SST26WFxxxB family of products are Serial Quad I/O (SQI) Flash Memory devices available in 4-, 8- and 16-bit variants. These devices support full command-set compatibility with Serial Peripheral Interface (SPI) protocol and enable minimum latency Execute-in-Place (XIP) capability without the need for code shadowing on an SRAM. The SST26WFxxxB devices exhibit low power consumption, making them suitable for portable battery powered applications.
Features
Operating Voltage Range 1.6 to 1.95 V
Clock Frequency 104 MHz max
Serial Interface Architecture
Low Power Consumption: Active Read Current: 15 mA (typical at 104 MHz), Standby Current: 10 μA (typical)
Burst Modes: Continuous Linear Burst, 8/16/32/64 Byte Linear Burst with Wrap-Around
Page-Program: 256 Bytes per page in x1 or x4 mode
Fast Erase Time: Sector/Block Erase 18 ms (typ), 25 ms (max); Chip Erase 35 ms (typ), 50 ms (max)
Flexible Erase Capability
End-of-Write Detection
Write-Suspend
Software Protection
Software Reset (RST) Mode
SFDP (Serial Flash Discoverable Parameters)
Clock Frequency 104 MHz max
Serial Interface Architecture
Low Power Consumption: Active Read Current: 15 mA (typical at 104 MHz), Standby Current: 10 μA (typical)
Burst Modes: Continuous Linear Burst, 8/16/32/64 Byte Linear Burst with Wrap-Around
Page-Program: 256 Bytes per page in x1 or x4 mode
Fast Erase Time: Sector/Block Erase 18 ms (typ), 25 ms (max); Chip Erase 35 ms (typ), 50 ms (max)
Flexible Erase Capability
End-of-Write Detection
Write-Suspend
Software Protection
Software Reset (RST) Mode
SFDP (Serial Flash Discoverable Parameters)
Flash Memory, Microchip
