Eaton Series Green Break Glass Call Point, Break Glass Operated, Indoor, Resettable, 87 x 87 x 53mm, Mains-Powered
- RS Stock No.:
- 377-1783
- Mfr. Part No.:
- 4930210FUL-0097
- Brand:
- Eaton
View all Fire Alarm Call Points
78 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Price Each
£19.86
(exc. VAT)
£23.83
(inc. VAT)
Units | Per unit |
1 - 9 | £19.86 |
10 - 19 | £19.07 |
20 + | £18.45 |
- RS Stock No.:
- 377-1783
- Mfr. Part No.:
- 4930210FUL-0097
- Brand:
- Eaton
- COO (Country of Origin):
- GB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Fulleon CXM Fire Alarm Manual Call Points
The Fulleon CXM range of manual call points are designed for use in the event of a fire or other emergencies, by providing occupants an interface to start evacuation procedures, release gas or emergency door release.
The CXM call points are suitable for legacy systems and come as standard with glass and plastic elements and a reset/testing key. The CXM call points provide simple mains rated changeover contacts for use with older fire systems and other applications requiring switching at up to mains voltage.
Easy to install, the back box to this call point system is surface mount and available in a range of colours including red, white, green, yellow and blue. A weatherproof option is also available.
The CXM call points may be fitted with a polycarbonate flap for protection against accidental operation or false alarm in busy areas. Where extra security is needed a breakable plastic tie can be added to secure the flap.
The CXM call points are suitable for legacy systems and come as standard with glass and plastic elements and a reset/testing key. The CXM call points provide simple mains rated changeover contacts for use with older fire systems and other applications requiring switching at up to mains voltage.
Easy to install, the back box to this call point system is surface mount and available in a range of colours including red, white, green, yellow and blue. A weatherproof option is also available.
The CXM call points may be fitted with a polycarbonate flap for protection against accidental operation or false alarm in busy areas. Where extra security is needed a breakable plastic tie can be added to secure the flap.
Manual call point device with break glass operation
Instantly raise the alarm in the event of an emergency
Choice of glass or plastic resettable elements (for spare glass element see Stock No. 377-1799)
Includes reset/testing key
Changeover contacts
Potted waterproof option
Flag on the re-settable element
Monitoring Resistor
Suitable for legacy safety systems
Certified to EN54-11
Instantly raise the alarm in the event of an emergency
Choice of glass or plastic resettable elements (for spare glass element see Stock No. 377-1799)
Includes reset/testing key
Changeover contacts
Potted waterproof option
Flag on the re-settable element
Monitoring Resistor
Suitable for legacy safety systems
Certified to EN54-11

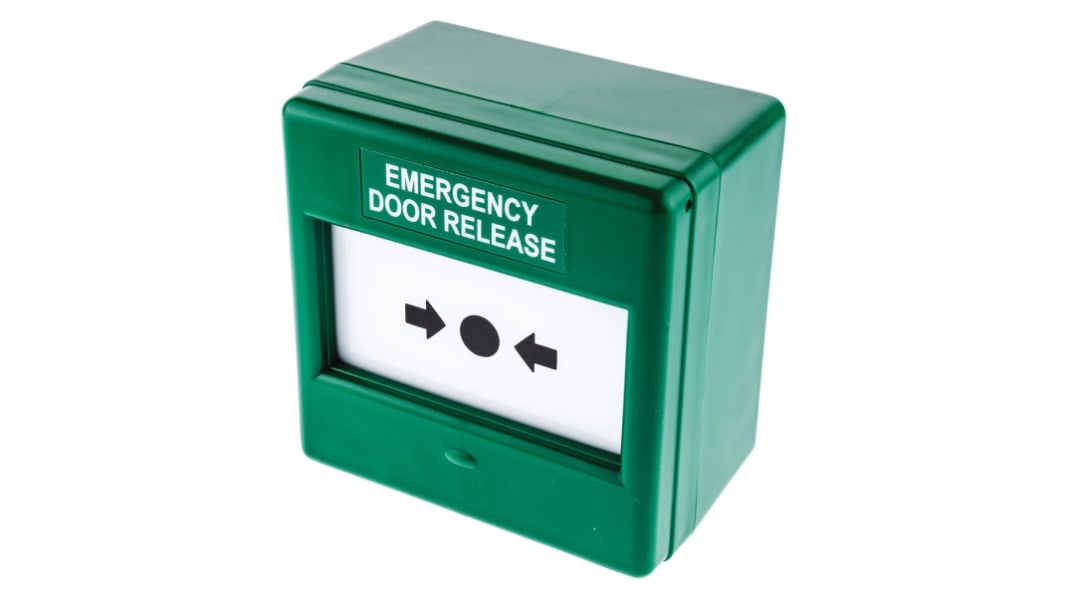

CXM Fire alarm Call Point
Green standard call point unit
Emergency Door Release
Emergency Door Release
Note
Eaton formerly known as Fulleon
Specifications
Attribute | Value |
Colour | Green |
Call Point Type | Emergency Release Call Point |
Indoor/Outdoor | Indoor |
Operation Type | Break Glass |
Power Source | Mains |
Resettable | Yes |
Element Material | Glass |
Box Material | ABS |
Depth | 53 mm |
Height | 87 mm |
Width | 87mm |
Special Features | BS5839 |
Series | Eaton Fulleon |
