SMC AW40 Polycarbonate Filter Regulator, 5μm, G 1/2, Automatic, 10 bar

View all Filter Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SMC AW Filter Regulator, 5μm, G 1/2, Auto, 10 bar, AW40
RS Stock No.
398-291

Each

£87.33

(exc. VAT)

£104.80

(inc. VAT)

RS Stock No.:
887-4874
Mfr. Part No.:
AW40-F04D-B
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Port Connection

G 1/2

Maximum Operating Pressure

10 bar

Manufacturer Series

AW40

Drain Type

Automatic

Filtration Size

5µm

Port Connection Thread Size

1/2 in

Maximum Ambient Operating Temperature

+60°C

Minimum Process Operating Temperature

-5°C

Minimum Operating Pressure

0.1MPa

Maximum Process Operating Temperature

+60°C

Port Connection Thread Standard

G

Ambient Operating Temperature Range

-5 → +60°C

Proof Pressure

1.5MPa

Minimum Ambient Operating Temperature

-5°C

Process Operating Temperature Range

-5 → +60°C

Bowl Material

Polycarbonate

RoHS Status: Exempt

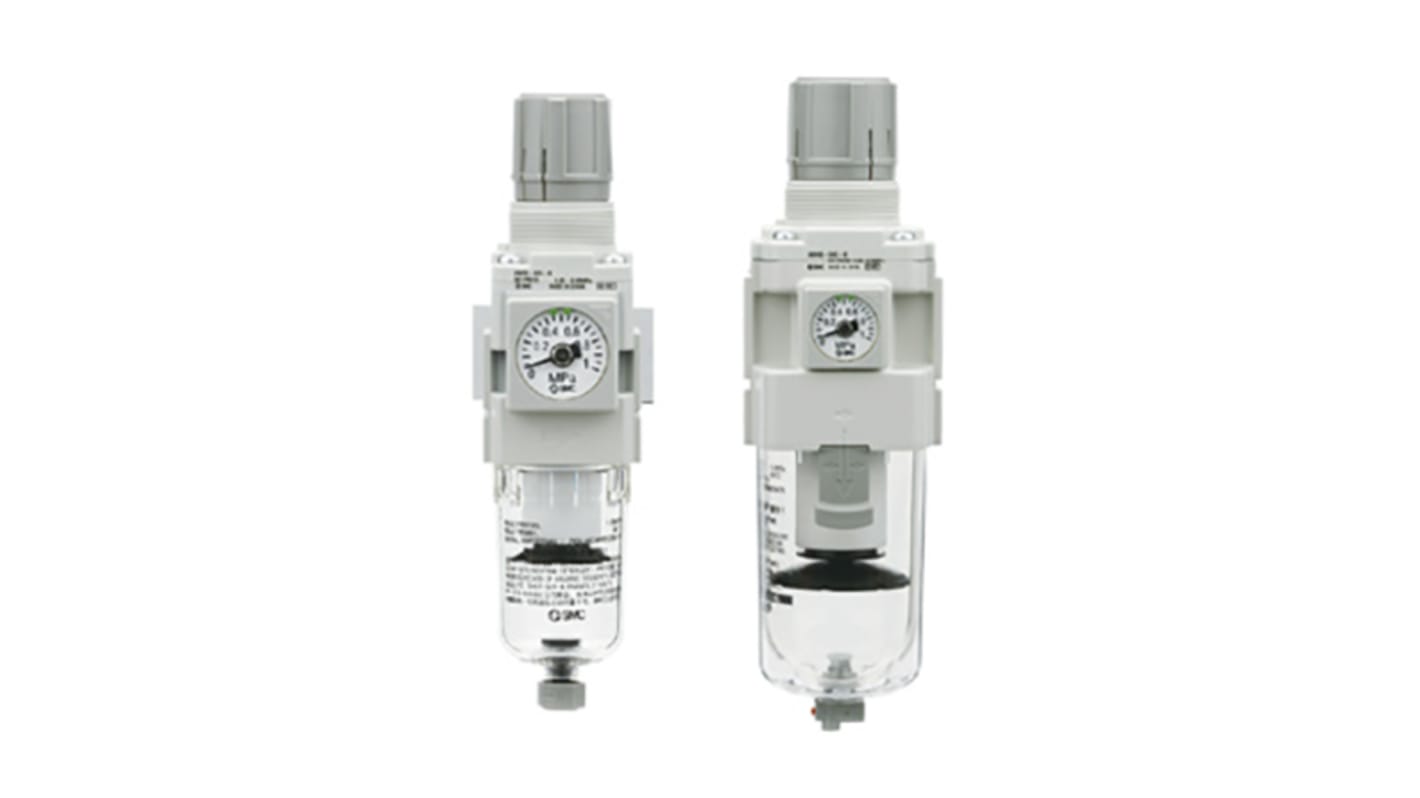

SMC Filter Regulator


The SMC 5μm pneumatic filter regulator has a G 1/2in port connection and a maximum operating pressure of 10bar. The regulator has a polycarbonate bowl. It is installed with an auto drain(float type N. O).

Features and Benefits


Without backflow mechanism
Modular type filter regulator
Optional embedded pressure gauge
