Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 3/8 | |
| Maximum Operating Pressure | 10 bar | |
| Manufacturer Series | AW30 | |
| Filtration Size | 5µm | |
| Port Connection Thread Size | 3/8 in | |
| Maximum Ambient Operating Temperature | +60°C | |
| Minimum Process Operating Temperature | -5°C | |
| Bowl Material | Polycarbonate | |
| Port Connection Thread Standard | G | |
| Proof Pressure | 1.5MPa | |
| Ambient Operating Temperature Range | -5 → +60°C | |
| Process Operating Temperature Range | -5 → +60°C | |
| Maximum Process Operating Temperature | +60°C | |
| Minimum Ambient Operating Temperature | -5°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection G 3/8 | ||
Maximum Operating Pressure 10 bar | ||
Manufacturer Series AW30 | ||
Filtration Size 5µm | ||
Port Connection Thread Size 3/8 in | ||
Maximum Ambient Operating Temperature +60°C | ||
Minimum Process Operating Temperature -5°C | ||
Bowl Material Polycarbonate | ||
Port Connection Thread Standard G | ||
Proof Pressure 1.5MPa | ||
Ambient Operating Temperature Range -5 → +60°C | ||
Process Operating Temperature Range -5 → +60°C | ||
Maximum Process Operating Temperature +60°C | ||
Minimum Ambient Operating Temperature -5°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP

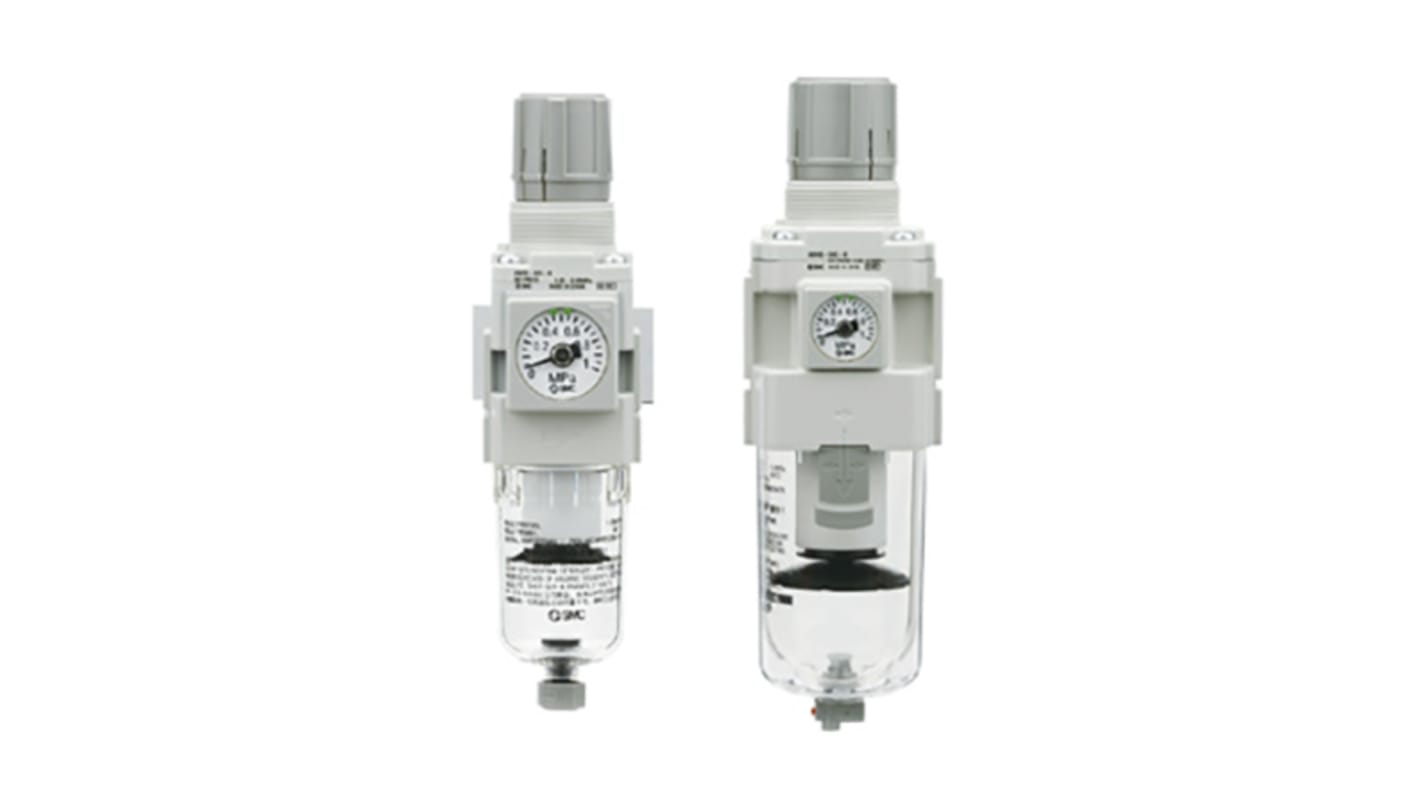

Modular Filter Regulator AW10-B - AW40-B
SMC’s AW-B series of compact filter regulators combine a filter and regulator into one unit saving on space a piping. Part of SMC’s modular air prep range the AW-B can be combined with other components such as a lubricator, soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed autodrain function, round or square pressure gauges and panel mounting kits.
Note
Dial not included, can be purchased seperately
