SMC AW Polycarbonate Filter Regulator, 5μm, NPT 3/8, Manual, 10 bar

RS Stock No.:: 849-9855
Mfr. Part No.:: AW30-N03-Z-A
Brand:: SMC

SMC AW Polycarbonate Filter Regulator, 5μm, NPT 3/8, Manual, 10 bar

View this category

Bulk discount available

Subtotal (1 unit)*

£43.95

(exc. VAT)

£52.74

(inc. VAT)

Stock information currently inaccessible

Units	Per unit
1 - 4	£43.95
5 +	£42.19

*price indicative

RS Stock No.:: 849-9855
Mfr. Part No.:: AW30-N03-Z-A
Brand:: SMC

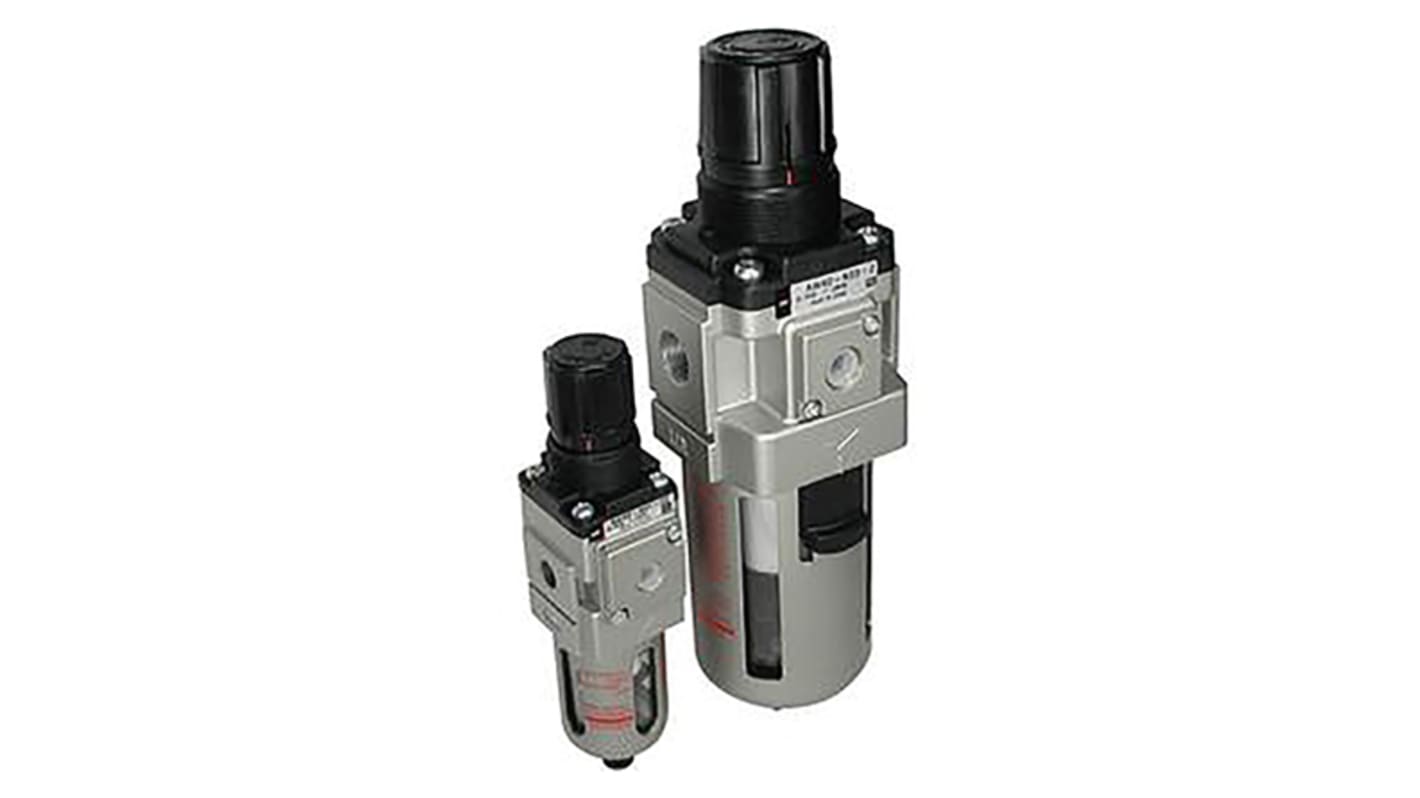

AW Series Filter- Regulator

The AW series from SMC is a combination filter/ regulator that saves space and require less piping by integrating two units into one. The AW filter regulators are manufactured with strong materials designed to withstand high pressures and enables the user to operate a wide regulating pressure range. This series is part of the modular air preparation unit family and can be used in conjunction with other similar sized products.

SMC Series AW Filter Regulator, 3/8 inches NPT Port Connection, 5 μm Filtration size - AW30-N03-Z-A

This filter regulator is a modular type filtering and regulating solution designed to optimise space and reduce piping requirements. It features an NPT 3/8 port connection and operates effectively under a maximum pressure of 10 bar. This product boasts a reliable operational temperature range from -5 °C to +60 °C, with a filtration size of 5 μm to ensure air purity. Its polycarbonate bowl adds durability while facilitating a manual drain mechanism.

Features & Benefits

• Integrated filter and regulator design saves installation space
• NPT 3/8 filter connection ensures compatibility with various systems
• Manual drain feature simplifies maintenance procedures
• 5 μm filtration rating protects downstream components
• Optional pressure gauge port for easy monitoring
• Durable polycarbonate bowl provides visibility and impact resistance

Applications

• Used for air preparation in industrial automation systems
• Ideal for pneumatic machinery to ensure a clean air supply
• Can be integrated into compressor units for consistent performance
• Suitable for demanding precise pressure control

How does the filtration capability impact system reliability?

The 5 μm filtration effectively captures particulates, thus preventing contamination of pneumatic components and enhancing overall system reliability by ensuring only clean air reaches sensitive machinery.

What are the performance temperature limits for optimal operation?

This unit operates reliably in ambient conditions ranging from -5 °C to +60 °C, ensuring it performs effectively in various industrial environments without freezing or overheating.

Can this device be easily serviced or maintained?

Yes, the manual drain feature allows for straightforward maintenance, aiding in the efficient removal of accumulated moisture and particulates without extensive downtime.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Port Connection	NPT 3/8
	Maximum Operating Pressure	10 bar
	Manufacturer Series	AW
	Drain Type	Manual
	Filtration Size	5µm
	Pressure Gauge Port	NPT 1/8
	Pressure Gauge Port Thread Size	1/8 in
	Port Connection Thread Size	3/8 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	-5°C
	Minimum Operating Pressure	0.05MPa
	Bowl Material	Polycarbonate
	Process Operating Temperature Range	-5 → +60°C
	Maximum Process Operating Temperature	+60°C
	Port Connection Thread Standard	NPT
	Pressure Gauge Port Thread Standard	NPT
	Ambient Operating Temperature Range	-5 → +60°C
	Proof Pressure	1.5MPa
	Minimum Ambient Operating Temperature	-5°C

	Select all
	Brand SMC
	Port Connection NPT 3/8
	Maximum Operating Pressure 10 bar
	Manufacturer Series AW
	Drain Type Manual
	Filtration Size 5µm
	Pressure Gauge Port NPT 1/8
	Pressure Gauge Port Thread Size 1/8 in
	Port Connection Thread Size 3/8 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature -5°C
	Minimum Operating Pressure 0.05MPa
	Bowl Material Polycarbonate
	Process Operating Temperature Range -5 → +60°C
	Maximum Process Operating Temperature +60°C
	Port Connection Thread Standard NPT
	Pressure Gauge Port Thread Standard NPT
	Ambient Operating Temperature Range -5 → +60°C
	Proof Pressure 1.5MPa
	Minimum Ambient Operating Temperature -5°C
