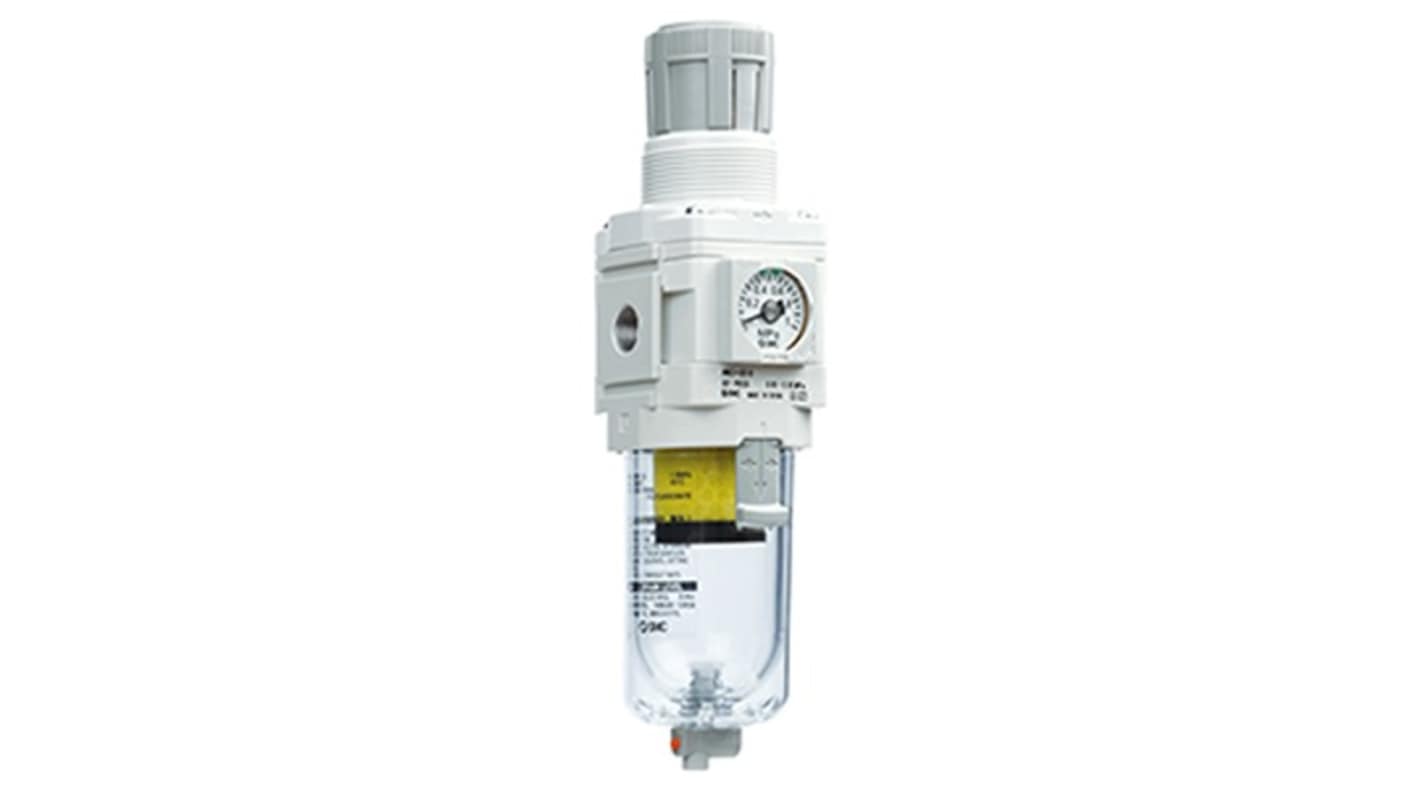

SMC AWM20 Filter/Regulator (FR) Assembly, 0.3 μm, 1/4 in, Automatic, 1 MPa, AWM20-F02-D
- RS Stock No.:
- 631-011
- Mfr. Part No.:
- AWM20-F02-D
- Brand:
- SMC
Subtotal (1 unit)*
£52.73
(exc. VAT)
£63.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £52.73 |
*price indicative
- RS Stock No.:
- 631-011
- Mfr. Part No.:
- AWM20-F02-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Size | 1/4 in | |
| Product Type | Filter/Regulator (FR) Assembly | |
| Maximum Flow Rate | 150L/min | |
| Maximum Operating Pressure | 1 MPa | |
| Series | AWM20 | |
| Connection Thread Standard | F | |
| Drain Type | Automatic | |
| Filtration Size | 0.3μm | |
| Overall Length | 71.8mm | |
| Pressure Gauge Port Size | 1/8 in | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 40mm | |
| Overall Height | 100.6mm | |
| Standards/Approvals | ISO 8573-1:2010, RoHS | |
| Bowl Material | Polycarbonate | |
| Model Number | AWM20-F02-D | |
| Pressure Setting Range | 0.05 to 0.85 MPa | |
| Pressure Gauge Port Thread Standard | G | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Port Size 1/4 in | ||
Product Type Filter/Regulator (FR) Assembly | ||
Maximum Flow Rate 150L/min | ||
Maximum Operating Pressure 1 MPa | ||
Series AWM20 | ||
Connection Thread Standard F | ||
Drain Type Automatic | ||
Filtration Size 0.3μm | ||
Overall Length 71.8mm | ||
Pressure Gauge Port Size 1/8 in | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 40mm | ||
Overall Height 100.6mm | ||
Standards/Approvals ISO 8573-1:2010, RoHS | ||
Bowl Material Polycarbonate | ||
Model Number AWM20-F02-D | ||
Pressure Setting Range 0.05 to 0.85 MPa | ||
Pressure Gauge Port Thread Standard G | ||
- COO (Country of Origin):
- CN
The SMC Mist Separator is a modular air preparation unit designed to efficiently eliminate fine oil mist and particulates from compressed air. It integrates precise pressure regulation, ensuring clean and stable airflow for sensitive pneumatic systems.
Adjust the pressure easily
Guarantee durability and easy maintenance
Polycarbonate bowl
