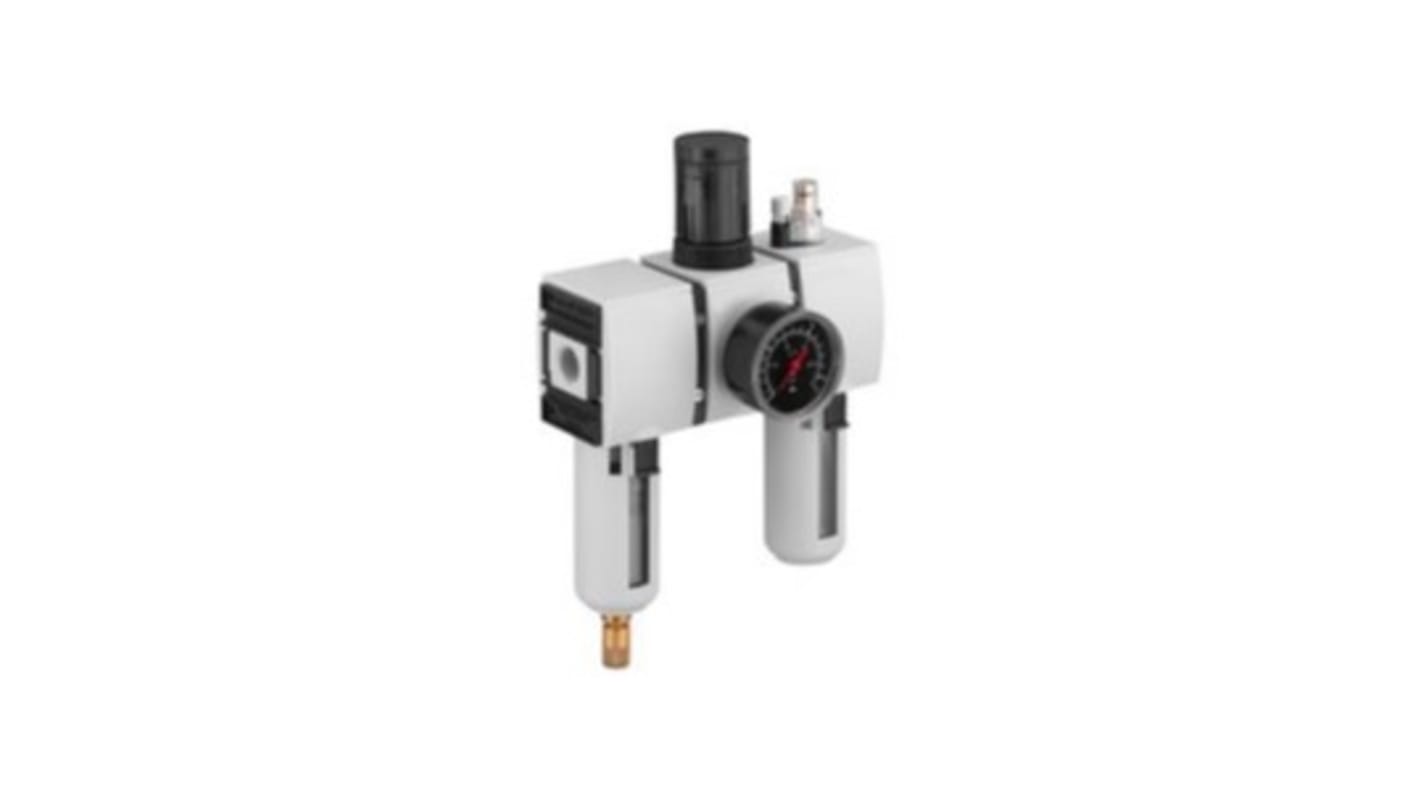

EMERSON – AVENTICS 1/4 in FRL, Semi Automatic Drain, 5 μm Filtration Size Integrated Pressure Gauge
- RS Stock No.:
- 703-6097
- Mfr. Part No.:
- R412006318
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£181.41
(exc. VAT)
£217.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £181.41 |
*price indicative
- RS Stock No.:
- 703-6097
- Mfr. Part No.:
- R412006318
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | FRL | |
| Port Size | 1/4 in | |
| Maximum Flow Rate | 1400L/min | |
| Integrated Pressure Gauge | Yes | |
| Drain Type | Semi Automatic | |
| Connection Thread Standard | G | |
| Series | AS2-ACT | |
| Filtration Size | 5μm | |
| Pressure Gauge Port Size | 1/4 in G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Maximum Operating Pressure | 16 bar | |
| Overall Width | 65mm | |
| Overall Height | 180.5mm | |
| Standards/Approvals | No | |
| Bowl Material | Polyethylene | |
| Pressure Setting Range | 1.5 to 16 bar | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type FRL | ||
Port Size 1/4 in | ||
Maximum Flow Rate 1400L/min | ||
Integrated Pressure Gauge Yes | ||
Drain Type Semi Automatic | ||
Connection Thread Standard G | ||
Series AS2-ACT | ||
Filtration Size 5μm | ||
Pressure Gauge Port Size 1/4 in G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Maximum Operating Pressure 16 bar | ||
Overall Width 65mm | ||
Overall Height 180.5mm | ||
Standards/Approvals No | ||
Bowl Material Polyethylene | ||
Pressure Setting Range 1.5 to 16 bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
AS Series Filter Regulator Lubricator Assembley Plus Gauge
Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +50 °C
Drain sprung open with pressure off
Padlock lockable regulator
Lubricator semi-automatic oil filing during operation
ATEX Certified II 2G2D T4 X
AS Series FRL
The AS range of air preparation units may be used as single elements or in combination units using joining accessories
