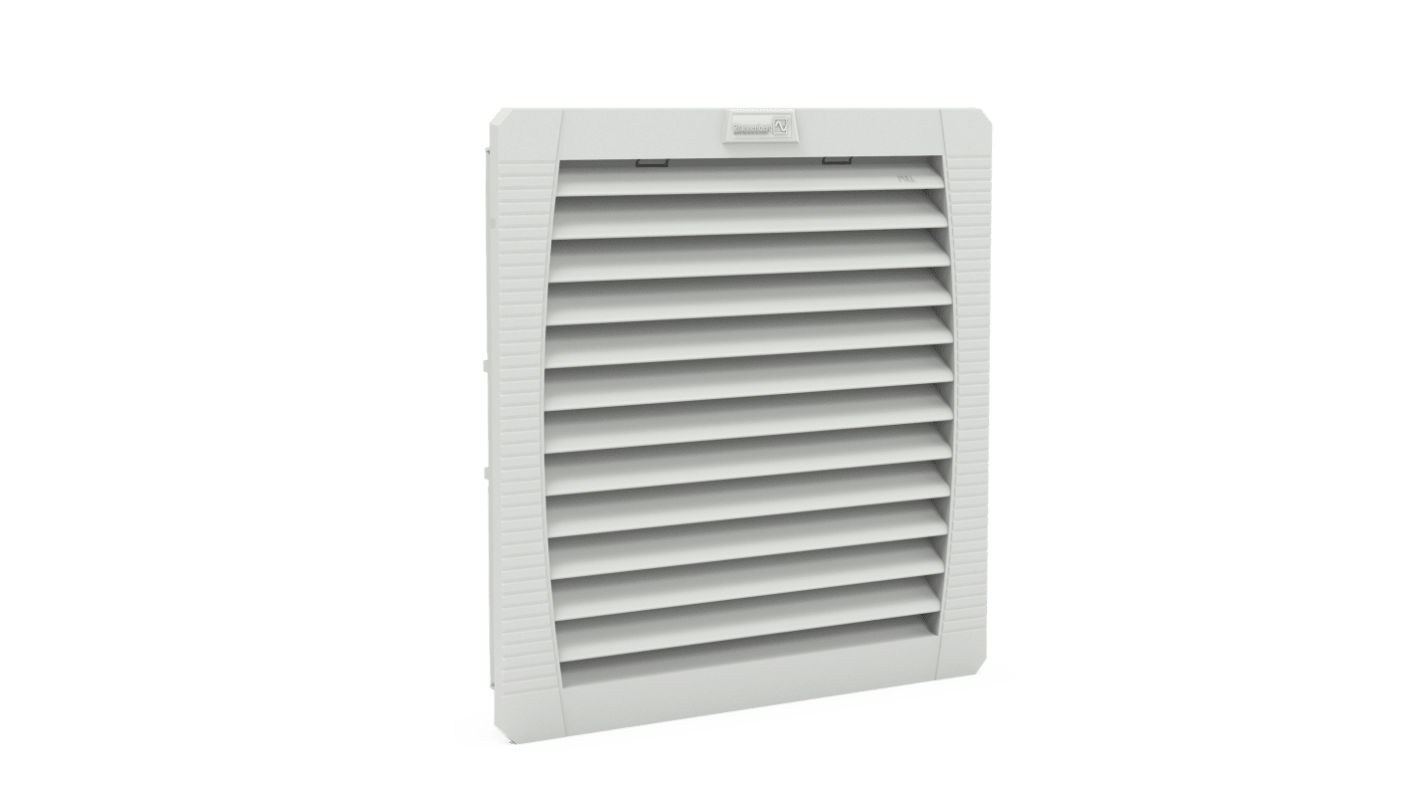

Pfannenberg PF 42.500 Series Filter Media, 24 V, ac Operation, 93m³/h Filtered, 125m³/h Unimpeded, IP55, 252 x 252mm

View all Filter Fans

Subtotal (1 unit)*

£125.85

(exc. VAT)

£151.02

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£125.85

*price indicative

RS Stock No.:
460-319
Mfr. Part No.:
11642803055
Brand:
Pfannenberg
Find similar products by selecting one or more attributes.
Select all

Brand

Pfannenberg

Unimpeded Air Flow

125m³/h

Noise Level

40dB

Filtered Air Flow

93m³/h

Input Current

200mA

Input Power Rating

4.7W

AC or DC Operation

ac

Face Dimensions

252 x 252mm

Supply Voltage

24 V

IP Rating

IP55

Series

PF 42.500

COO (Country of Origin):
DE
The Pfannenberg Outdoor filterfans of the 4th generation is the culmination of 60 years experience in thermal management. Using filterfans is the most efficient and cost-effective way to remove heat from the electrical cabinet at ambient temperatures below target internal.

High air flow (56 to 925 m3/h) in small packages with low energy consumption
Uniquely high air flow due to optimized louvre design
IP-55 protection by innovative filter mat technology optimal for outdoor use
3 times longer service time than IP54 filter
These Filterfans have a higher resistance to UV rays
Patented tool-free 4-corner fastening system enables installation in seconds
Foam seal facilitates the installation
The filter mat can be replaced easily and in seconds due to the optimized front cover
Flat shape and neutral design make a perfect integration into existing machines possible
The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible
Approvals: cURus, EAC, CAS
