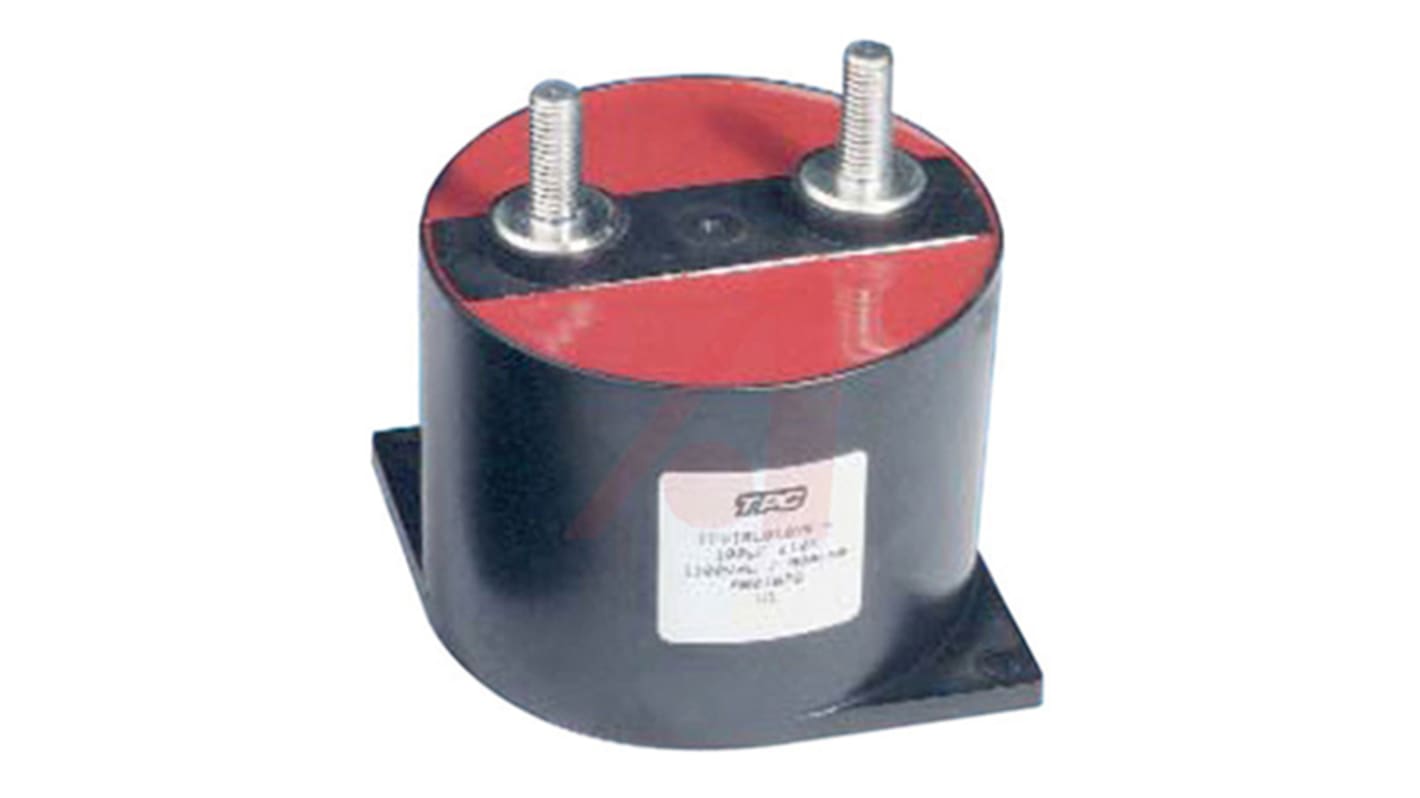

KYOCERA AVX FFVE Polypropylene Film Capacitor, 600V dc, ±10%, 100μF

Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
888-1107
Mfr. Part No.:
FFVE6K0107K--
Brand:
AVX
Find similar products by selecting one or more attributes.
Select all

Brand

AVX

Capacitance

100µF

Voltage

600V dc

Tolerance

±10%

Series

FFVE

Lead Pitch

45mm

Lead Length

20mm

Height

40mm

Equivalent Series Resistance

0.6mΩ

Dimensions

84.5 (Dia.) x 40mm

Dielectric

Polypropylene

Terminal Type

Male Threaded

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

AVX FFVE Series


The FFVE series of medium power film capacitors from AVX are primarily designed for use on DC filtering circuits. The FFVE series of radial capacitor uses a non-impregnated metallized polypropylene dielectric that is specially treated to have a very high dielectric strength in operating conditions up to 105°C.
The FFVE special design gives this series a very low level of stray inductance which makes it a interesting alternative to electrolytic technology.


Radial 105°C


Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
