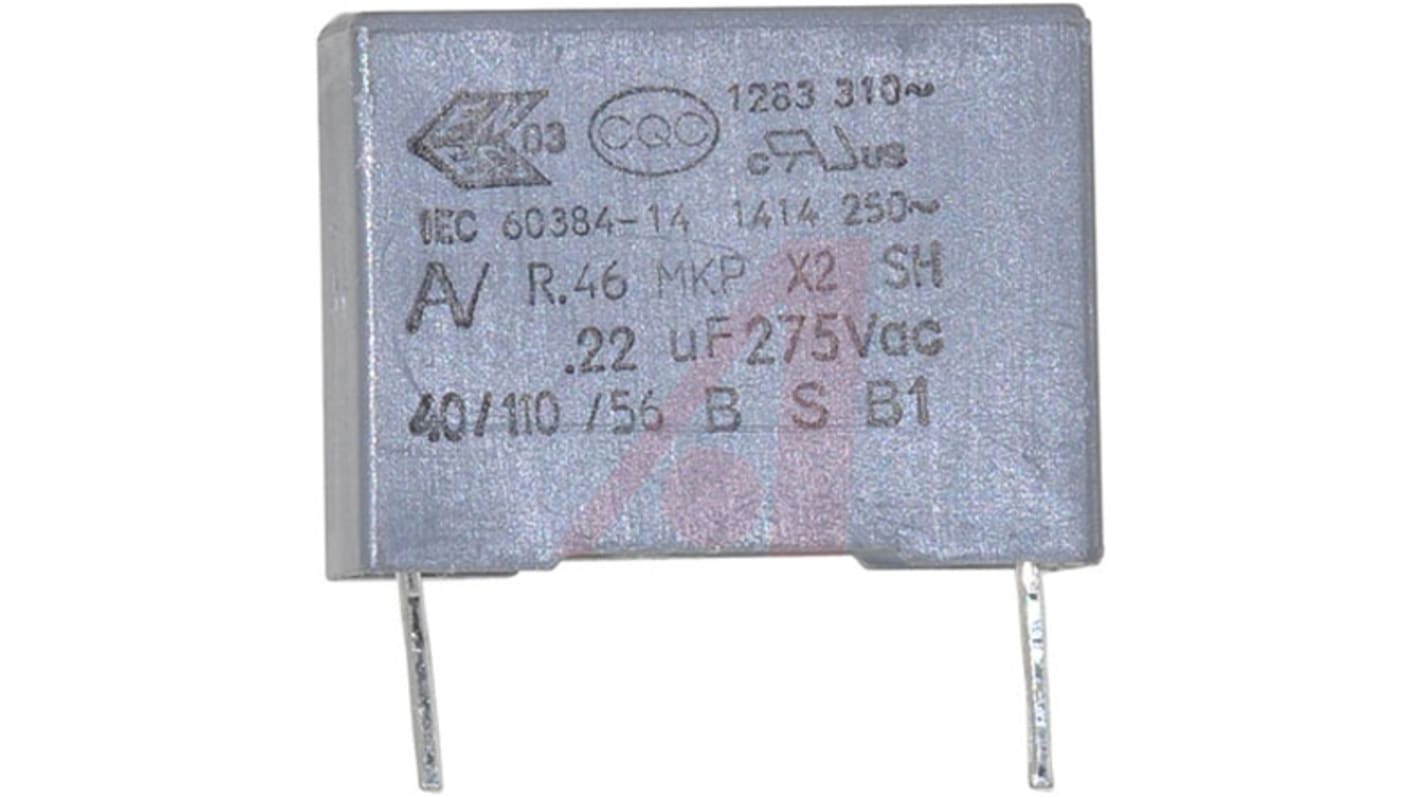

KEMET R46 Polypropylene Film Capacitor, 275 V ac, 560 V dc, ±20%, 220nF, Through Hole
- RS Stock No.:
- 870-8737
- Mfr. Part No.:
- R46KI322000M2M
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 870-8737
- Mfr. Part No.:
- R46KI322000M2M
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 220nF | |
| Voltage | 275 V ac, 560 V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±20% | |
| Series | R46 | |
| Lead Pitch | 15mm | |
| Suppression Class | X2 | |
| Length | 18mm | |
| Depth | 7.5mm | |
| Height | 13.5mm | |
| Dimensions | 18 x 7.5 x 13.5mm | |
| Dielectric | Polypropylene | |
| Dissipation Factor | 0.1% | |
| Maximum Operating Temperature | +110°C | |
| Lead Diameter | 0.6mm | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 220nF | ||
Voltage 275 V ac, 560 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Series R46 | ||
Lead Pitch 15mm | ||
Suppression Class X2 | ||
Length 18mm | ||
Depth 7.5mm | ||
Height 13.5mm | ||
Dimensions 18 x 7.5 x 13.5mm | ||
Dielectric Polypropylene | ||
Dissipation Factor 0.1% | ||
Maximum Operating Temperature +110°C | ||
Lead Diameter 0.6mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Kemet R46 Series
Kemet R46 series are metallized polypropylene film capacitors with radial leads of tinned wire. The R46 series radial leads are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitors are encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material. The R46 series is designed for use as electromagnetic interference (EMI) suppression filter in across-the-line applications requiring X2 safety classification.
Wide voltage range
High operating temperature
RoHS compliance and lead-free terminations
Self-healing
High operating temperature
RoHS compliance and lead-free terminations
Self-healing
