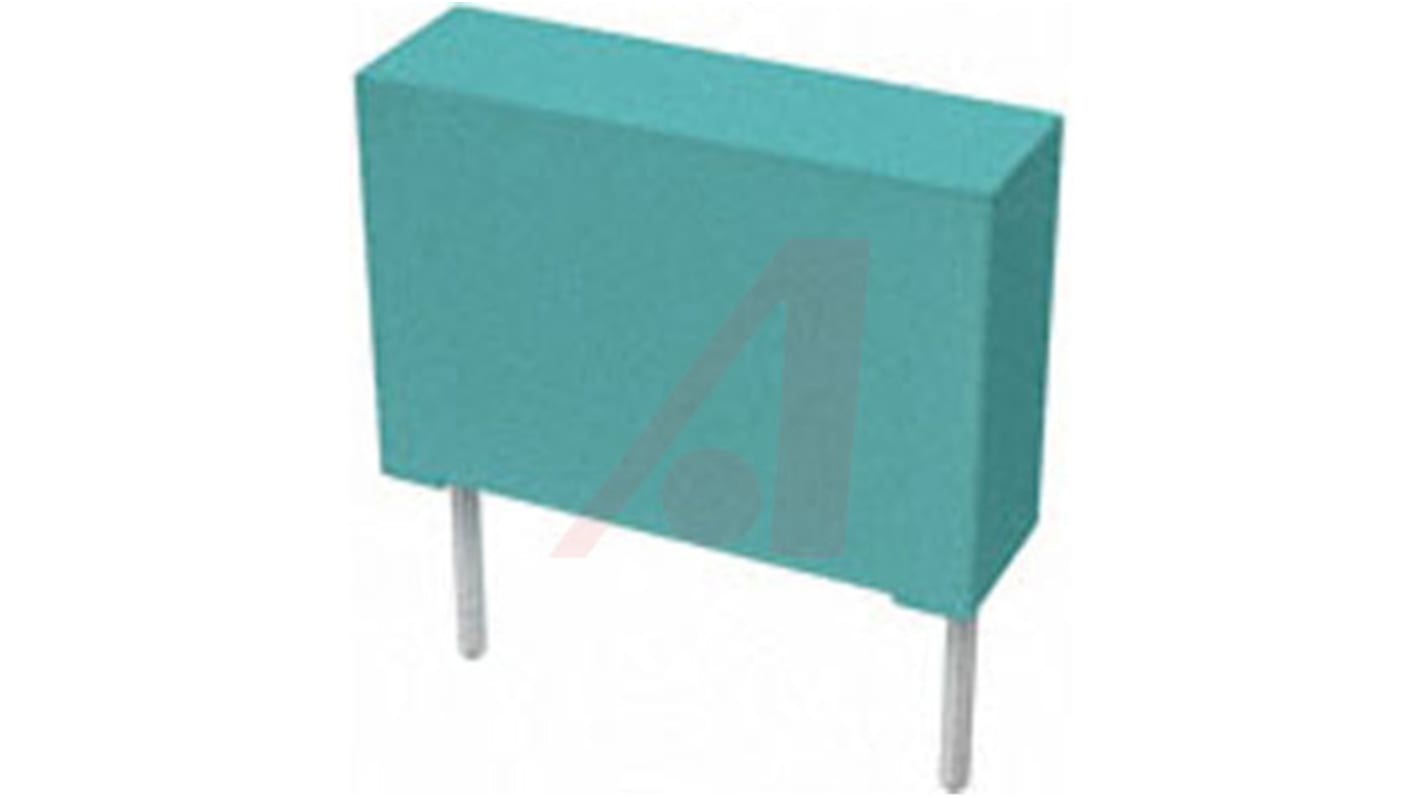

Kemet R41 Polypropylene Film Capacitor, 1 kV dc, 300 V ac, ±20%, 4.7nF, Through Hole
- RS Stock No.:
- 870-8721
- Mfr. Part No.:
- R413F147000M1M
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 870-8721
- Mfr. Part No.:
- R413F147000M1M
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 4.7nF | |
| Voltage | 1 kV dc, 300 V ac | |
| Mounting Type | Through Hole | |
| Tolerance | ±20% | |
| Series | R41 | |
| Lead Pitch | 10mm | |
| Suppression Class | X1, Y2 | |
| Length | 13mm | |
| Depth | 5mm | |
| Lead Length | 4mm | |
| Height | 11mm | |
| Dimensions | 13 x 5 x 11mm | |
| Dielectric | Polypropylene | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +110°C | |
| Lead Diameter | 0.6mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 4.7nF | ||
Voltage 1 kV dc, 300 V ac | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Series R41 | ||
Lead Pitch 10mm | ||
Suppression Class X1, Y2 | ||
Length 13mm | ||
Depth 5mm | ||
Lead Length 4mm | ||
Height 11mm | ||
Dimensions 13 x 5 x 11mm | ||
Dielectric Polypropylene | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +110°C | ||
Lead Diameter 0.6mm | ||
- COO (Country of Origin):
- BG
Kemet R41 Series
Kemet R41 series are metallized polypropylene film capacitors with radial leads of tinned wire. The R41 series radial leads are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitors are encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material. The R41 series is designed for use as electromagnetic interference (EMI) suppression filter in across-the-line applications requiring Y2 / X1 safety classification.
Wide voltage range
High operating temperature
RoHS compliance and lead-free terminations
Self-healing
High operating temperature
RoHS compliance and lead-free terminations
Self-healing
