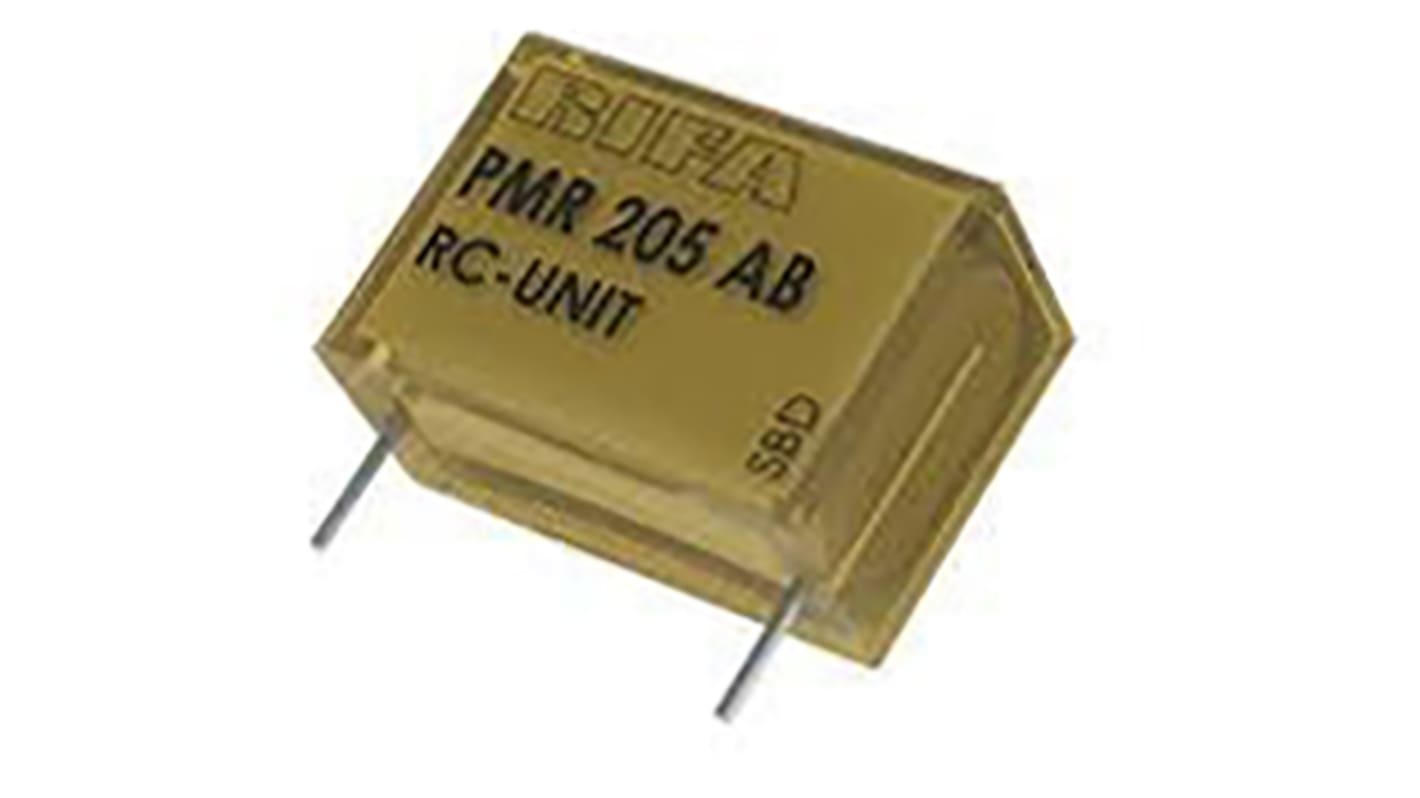

Kemet PMR205 Paper Capacitor, 125 V ac, 250V dc, ±20%, 100nF, Through Hole
- RS Stock No.:
- 870-8715
- Mfr. Part No.:
- PMR205AB6100M100R30
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 870-8715
- Mfr. Part No.:
- PMR205AB6100M100R30
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 100nF | |
| Voltage | 125 V ac, 250V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±20% | |
| Series | PMR205 | |
| Lead Pitch | 15.2mm | |
| Suppression Class | X2 | |
| Length | 18.5mm | |
| Depth | 5.2mm | |
| Height | 10.5mm | |
| Dimensions | 18.5 x 5.2 x 10.5mm | |
| Lead Diameter | 0.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 100nF | ||
Voltage 125 V ac, 250V dc | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Series PMR205 | ||
Lead Pitch 15.2mm | ||
Suppression Class X2 | ||
Length 18.5mm | ||
Depth 5.2mm | ||
Height 10.5mm | ||
Dimensions 18.5 x 5.2 x 10.5mm | ||
Lead Diameter 0.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- FI
PMR 209 Series
Metallised Paper X2, 250Vac
RC unit suitable for use in DC & AC applications for contact protection interference suppression of contacts and transient suppression
Small dimensions
Self-extinguishing encapsulation
Excellent self healing properties ensuring long life even when subject to frequent over voltages
Impregnated paper ensures excellent stability and outstanding reliability, especially in applications with continuous operation
RC unit suitable for use in DC & AC applications for contact protection interference suppression of contacts and transient suppression
Small dimensions
Self-extinguishing encapsulation
Excellent self healing properties ensuring long life even when subject to frequent over voltages
Impregnated paper ensures excellent stability and outstanding reliability, especially in applications with continuous operation
Warning
These devices are designed for connecting directly across a mains supply but should NOT be used in positions where failure of the capacitor would expose anyone to electric shock.
Approvals
SEMKO, NEMKO, DEMKO, UL,VDE
