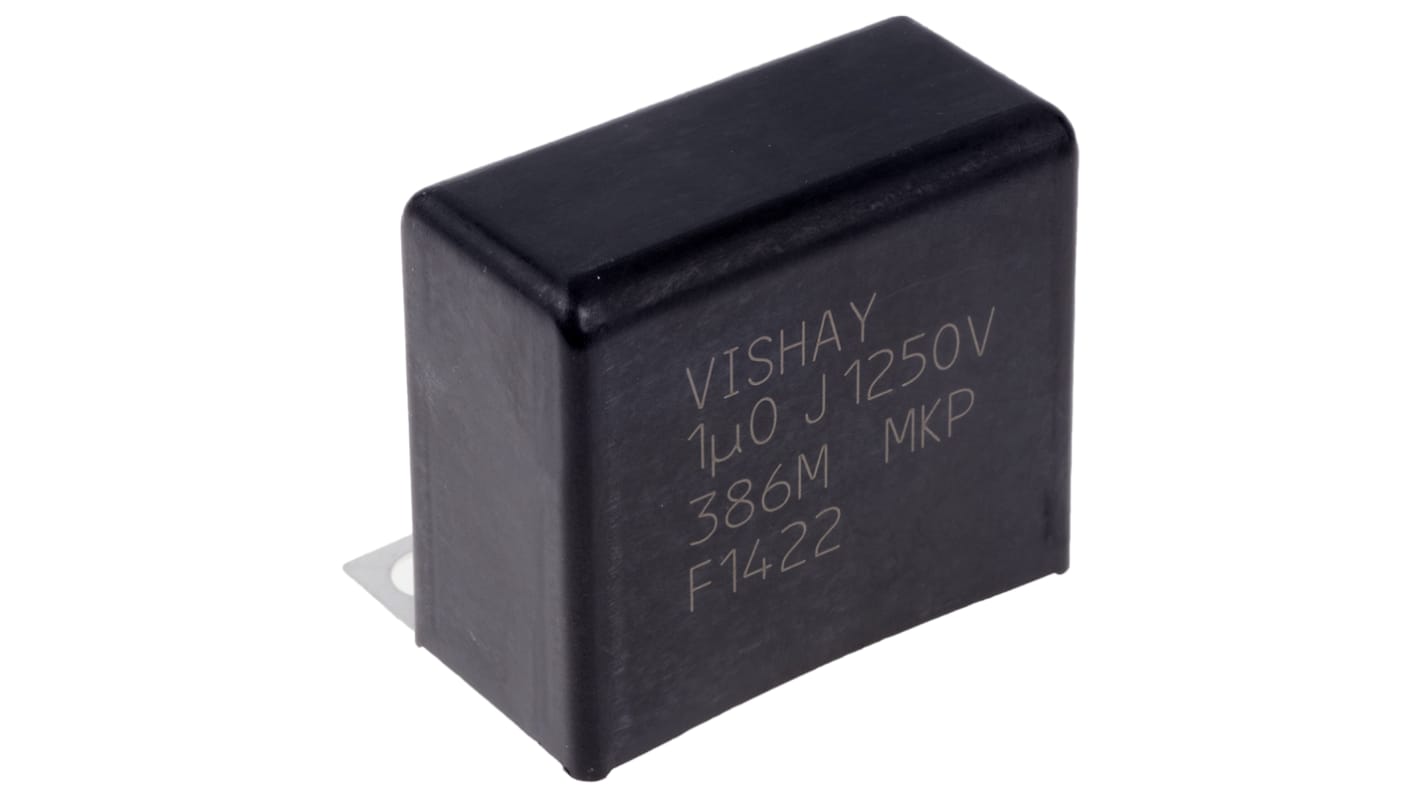

Vishay MKP386M Polypropylene Film Capacitor, 1.25kV dc, ±5%, 1μF, Screw Mount
- RS Stock No.:
- 775-7514
- Mfr. Part No.:
- MKP386M510125JT4
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£18.76
(exc. VAT)
£22.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 572 unit(s) shipping from 06 October 2025
- Plus 999,999,427 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.76 |
| 5 - 9 | £17.45 |
| 10 - 24 | £15.95 |
| 25 - 49 | £14.82 |
| 50 + | £13.13 |
*price indicative
- RS Stock No.:
- 775-7514
- Mfr. Part No.:
- MKP386M510125JT4
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 1µF | |
| Voltage | 1.25kV dc | |
| Mounting Type | Screw Mount | |
| Tolerance | ±5% | |
| Series | MKP386M | |
| Lead Pitch | 28mm | |
| Length | 44mm | |
| Depth | 22mm | |
| Equivalent Series Resistance | 10mΩ | |
| Height | 38mm | |
| Dimensions | 44 x 22 x 38mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Screw Mount | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 1µF | ||
Voltage 1.25kV dc | ||
Mounting Type Screw Mount | ||
Tolerance ±5% | ||
Series MKP386M | ||
Lead Pitch 28mm | ||
Length 44mm | ||
Depth 22mm | ||
Equivalent Series Resistance 10mΩ | ||
Height 38mm | ||
Dimensions 44 x 22 x 38mm | ||
Dielectric Polypropylene | ||
Terminal Type Screw Mount | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- PT
MKP386M Series
Reduce EMI by clamping voltage and current ringing
High pulse strength (dV/dt up to 2500 V/μs)
Low inductance construction (low ESL)
Low ESR
Designed for direct mount on IGBT modules
Applications include Photovoltaic and wind invertors, Motor drives and Frequency convertors
High pulse strength (dV/dt up to 2500 V/μs)
Low inductance construction (low ESL)
Low ESR
Designed for direct mount on IGBT modules
Applications include Photovoltaic and wind invertors, Motor drives and Frequency convertors
