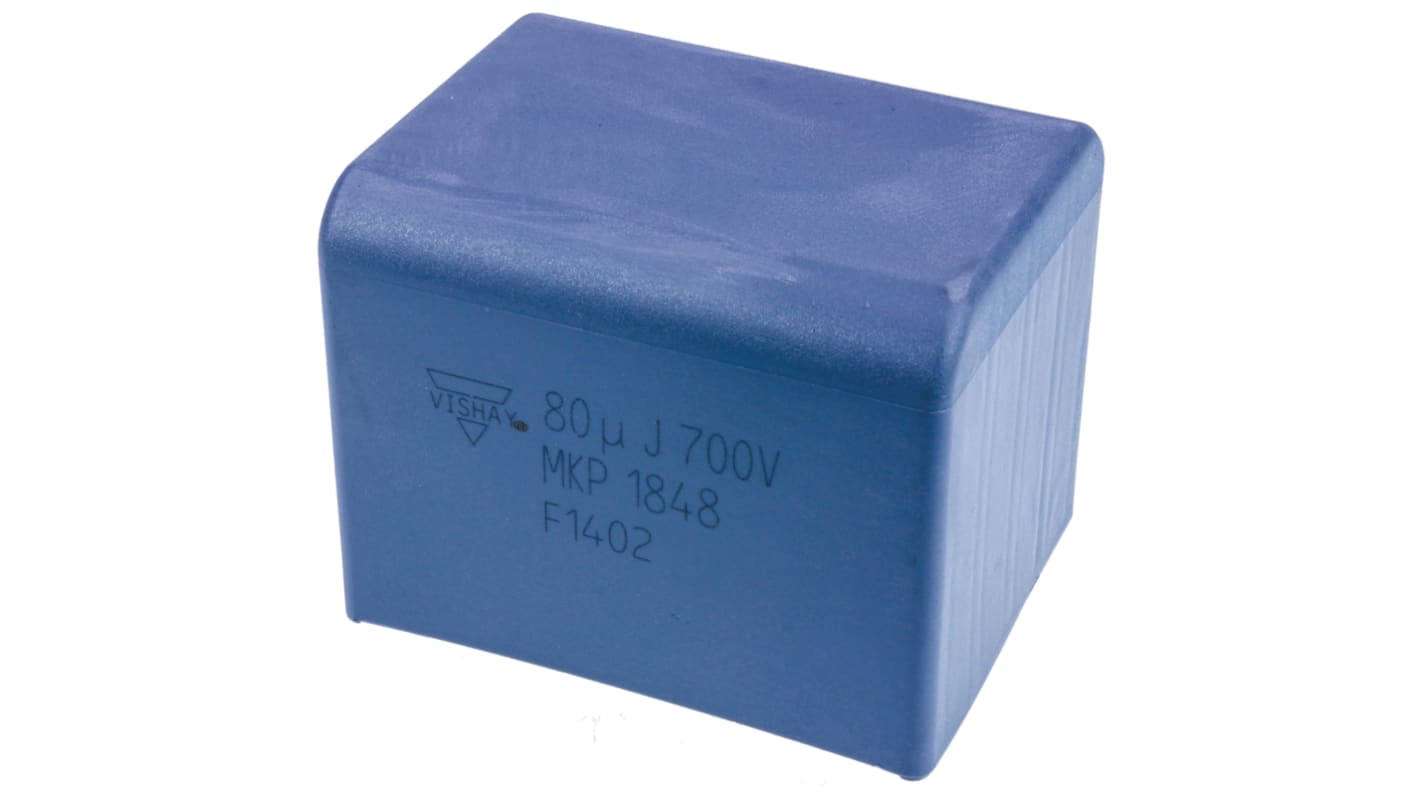

Vishay MKP1848 DC-Link Polypropylene Film Capacitor, 700V dc, ±5%, 80μF, Through Hole
- RS Stock No.:
- 684-2267
- Mfr. Part No.:
- MKP1848680704Y5
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£33.40
(exc. VAT)
£40.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 37 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £33.40 |
| 5 - 9 | £31.72 |
| 10 - 24 | £30.07 |
| 25 - 49 | £28.73 |
| 50 + | £26.72 |
*price indicative
- RS Stock No.:
- 684-2267
- Mfr. Part No.:
- MKP1848680704Y5
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 80µF | |
| Voltage | 700V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±5% | |
| Series | MKP1848 DC-Link | |
| Lead Pitch | 52.5mm | |
| Length | 57.5mm | |
| Depth | 45mm | |
| Height | 45mm | |
| Dimensions | 57.5 x 45 x 45mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 1.2mm | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 80µF | ||
Voltage 700V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series MKP1848 DC-Link | ||
Lead Pitch 52.5mm | ||
Length 57.5mm | ||
Depth 45mm | ||
Height 45mm | ||
Dimensions 57.5 x 45 x 45mm | ||
Dielectric Polypropylene | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 1.2mm | ||
Maximum Operating Temperature +85°C | ||
MKP1848 Series
For use in high performance DC filtering applications
Plastic case, sealed with resin, flame retardant
Plastic case, sealed with resin, flame retardant
