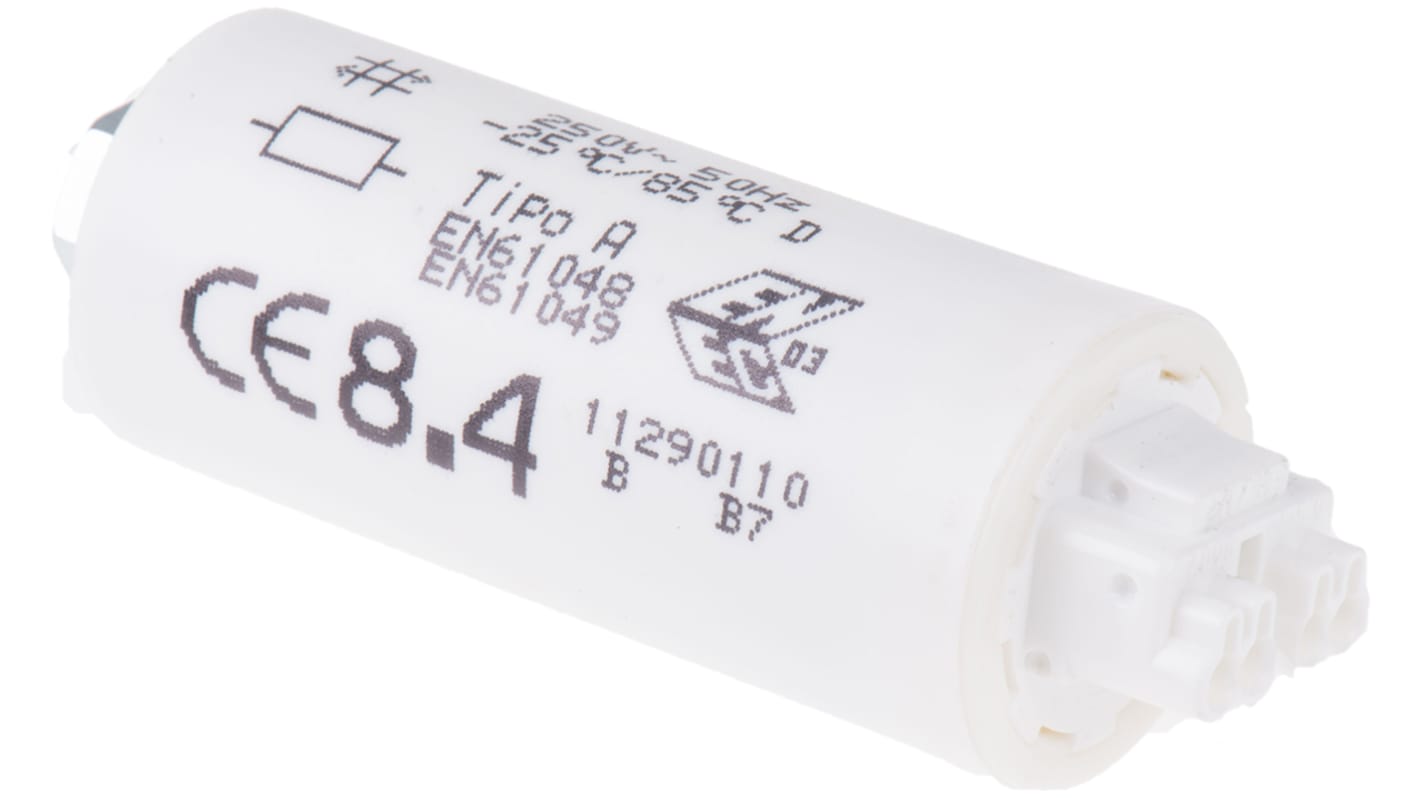

KEMET C3B Polypropylene Film Capacitor, 250V ac, ±10%, 8.4μF, Cable Mount
- RS Stock No.:
- 451-5405
- Mfr. Part No.:
- C3B2AD44840B20K
- Brand:
- KEMET
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 451-5405
- Mfr. Part No.:
- C3B2AD44840B20K
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 8.4µF | |
| Voltage | 250V ac | |
| Mounting Type | Cable Mount | |
| Tolerance | ±10% | |
| Series | C3B | |
| Length | 71mm | |
| Dimensions | 30 (Dia.) x 71mm | |
| Dielectric | Polypropylene | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 8.4µF | ||
Voltage 250V ac | ||
Mounting Type Cable Mount | ||
Tolerance ±10% | ||
Series C3B | ||
Length 71mm | ||
Dimensions 30 (Dia.) x 71mm | ||
Dielectric Polypropylene | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- BG
MKP C3B
Metallised Polypropylene film dielectric
Plastic case with self-extinguishing grade V2
Push-on Fast-on 2.8x0.8mm terminals, DIN46244
Plastic case with self-extinguishing grade V2
Push-on Fast-on 2.8x0.8mm terminals, DIN46244
Standards
EN 61048 ed; 1993 A.1/1996 - EN 61049
Approvals
ENEC
Approvals
ENEC
Standards
EN 61048 ed; 1993 A.1/1996 - EN 61049
