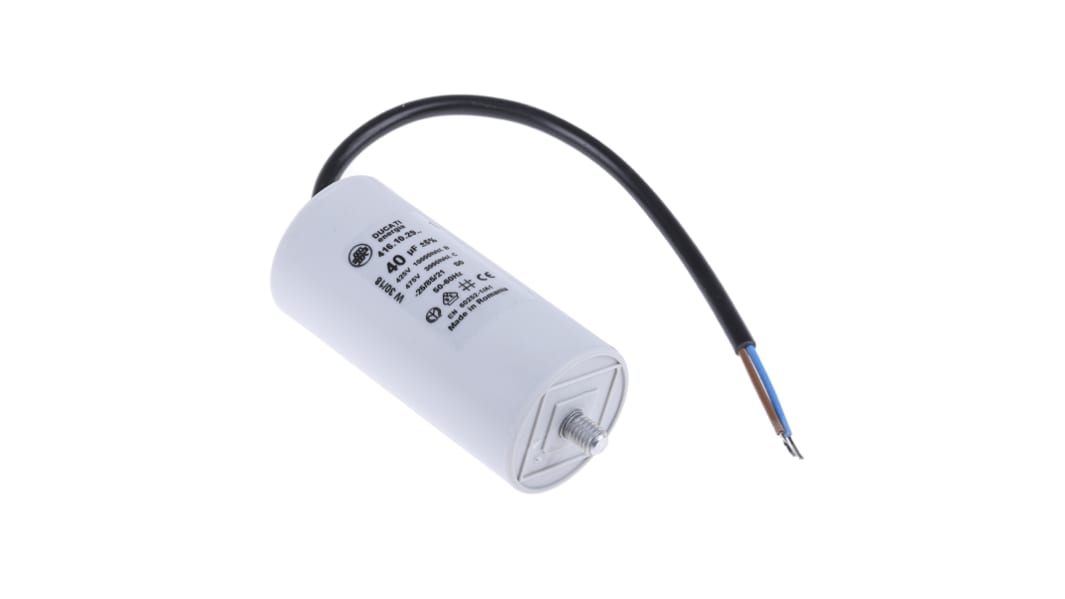

Ducati Energia 4.16.10 Film Capacitor, ±5 %, 40 μF 500V ac, Stud Mount
- RS Stock No.:
- 388-7793
- Mfr. Part No.:
- 4.16.10.29.14
- Brand:
- Ducati Energia
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£24.89
(exc. VAT)
£29.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 32 unit(s) ready to ship
- Plus 55 unit(s) ready to ship from another location
- Plus 405 unit(s) shipping from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.89 |
| 5 - 9 | £23.14 |
| 10 - 24 | £21.65 |
| 25 - 49 | £20.16 |
| 50 + | £18.17 |
*price indicative
- RS Stock No.:
- 388-7793
- Mfr. Part No.:
- 4.16.10.29.14
- Brand:
- Ducati Energia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ducati Energia | |
| Product Type | Film Capacitor | |
| Capacitance | 40μF | |
| Mount Type | Stud Mount | |
| Packaging | Bulk | |
| Rated AC Voltage | 500V ac | |
| Tolerance | ±5 % | |
| Series | 4.16.10 | |
| Lead Pitch | 10mm | |
| Automotive Standard | No | |
| Terminal Type | Flying Lead | |
| Lead Length | 9.3mm | |
| Application | Electric Motor | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 45mm | |
| Standards/Approvals | CE, UL | |
| Height | 92mm | |
| Dissipation Factor | 0.002% | |
| Package/Case | Plastic | |
| Lead Diameter | 0.7mm | |
| Select all | ||
|---|---|---|
Brand Ducati Energia | ||
Product Type Film Capacitor | ||
Capacitance 40μF | ||
Mount Type Stud Mount | ||
Packaging Bulk | ||
Rated AC Voltage 500V ac | ||
Tolerance ±5 % | ||
Series 4.16.10 | ||
Lead Pitch 10mm | ||
Automotive Standard No | ||
Terminal Type Flying Lead | ||
Lead Length 9.3mm | ||
Application Electric Motor | ||
Pin Count 2 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Width 45mm | ||
Standards/Approvals CE, UL | ||
Height 92mm | ||
Dissipation Factor 0.002% | ||
Package/Case Plastic | ||
Lead Diameter 0.7mm | ||
- COO (Country of Origin):
- RO
4.16.10/15/17/87 Series
These polypropylene film capacitors feature a self-healing metallised polypropylene dielectric. Constructed with a self-extinguishing plastic cover and case, a polyurethanic resin is used to seal the capacitive element.
Plastic case with stud
Termination via double insulated two core lead
Non-inductive winding
Low losses
Short circuits avoided due to self healing properties
Compact size
No leakage risk
Voltage for 4.16.10 Series:
400 V - 10000h cl. B - 25/85/21
425 V - 10000h cl. B - 25/85/21
450 V - 3000h cl. C 25/85/21
475 V - 3000h cl. c - 25/85/21
500 V - 1000h cl. D - SI120/20
Voltage for 4.16.15 Series:
400 V - 10000h cl. B - 25/100/21
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
Voltage for 4.16.87 Series:
450 V - 10000h cl. B - 25/85/21
Voltage for 4.16.17 Series:
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
Standards
VDE 560-8, CEI 33-3, SEV 1029
