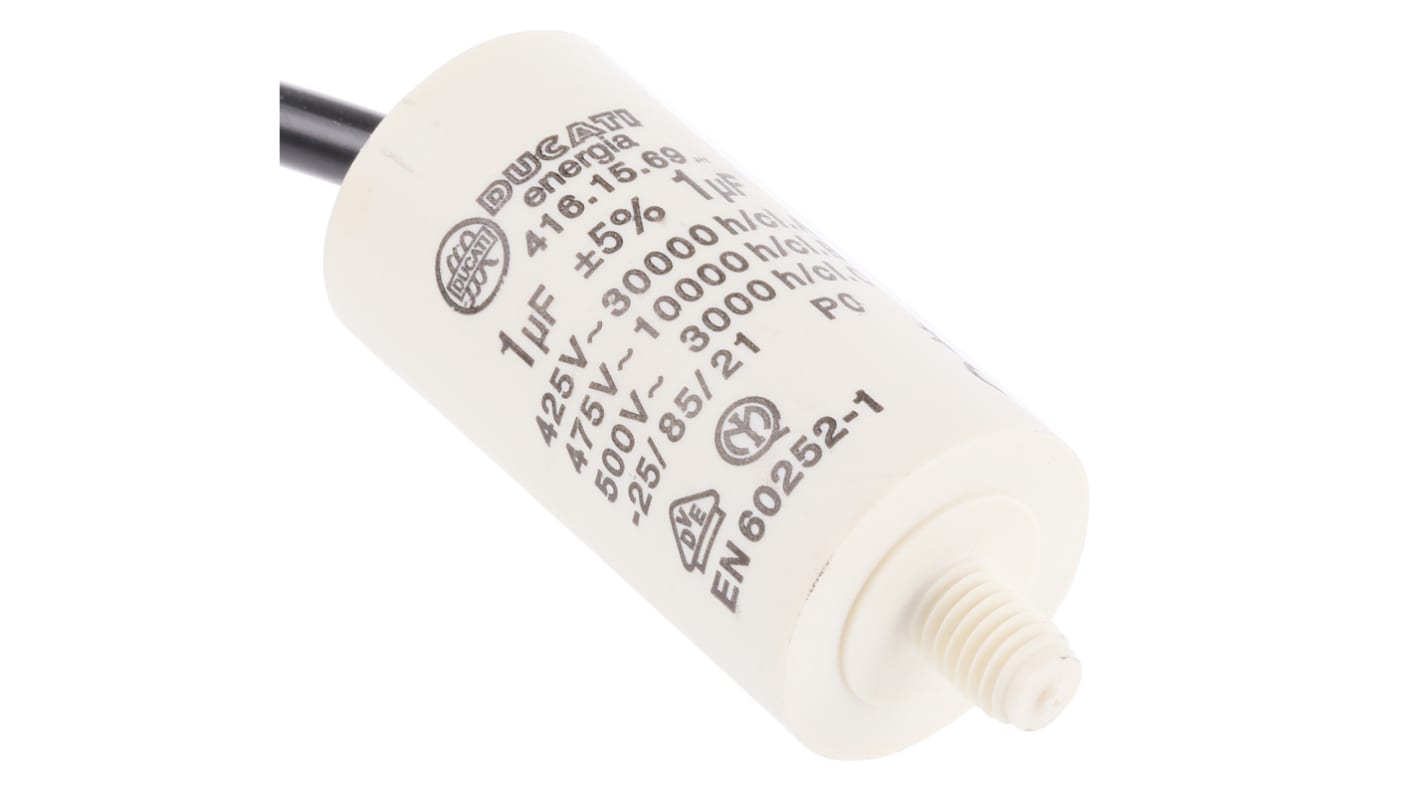

Ducati Energia 4.16.15 Polypropylene Film Capacitor, 400 → 500V ac, ±5%, 1μF, Stud Mount
- RS Stock No.:
- 388-7658
- Mfr. Part No.:
- 4.16.15.69.14
- Brand:
- Ducati Energia
Bulk discount available
Subtotal (1 unit)*
£9.75
(exc. VAT)
£11.70
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 21 left, ready to ship
- Plus 44 left, ready to ship from another location
- Plus 91 left, shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.75 |
| 10 - 24 | £9.35 |
| 25 - 49 | £8.97 |
| 50 - 99 | £8.18 |
| 100 + | £7.32 |
*price indicative
- RS Stock No.:
- 388-7658
- Mfr. Part No.:
- 4.16.15.69.14
- Brand:
- Ducati Energia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ducati Energia | |
| Capacitance | 1µF | |
| Voltage | 400 → 500V ac | |
| Mounting Type | Stud Mount | |
| Tolerance | ±5% | |
| Series | 4.16.15 | |
| Height | 55mm | |
| Dimensions | 28 (Dia.) x 55mm | |
| Dielectric | Polypropylene | |
Select all | ||
|---|---|---|
Brand Ducati Energia | ||
Capacitance 1µF | ||
Voltage 400 → 500V ac | ||
Mounting Type Stud Mount | ||
Tolerance ±5% | ||
Series 4.16.15 | ||
Height 55mm | ||
Dimensions 28 (Dia.) x 55mm | ||
Dielectric Polypropylene | ||
4.16.10/15/17/87 Series
These polypropylene film capacitors feature a self-healing metallised polypropylene dielectric. Constructed with a self-extinguishing plastic cover and case, a polyurethanic resin is used to seal the capacitive element.
Plastic case with stud
Termination via double insulated two core lead
Non-inductive winding
Low losses
Short circuits avoided due to self healing properties
Compact size
No leakage risk
Termination via double insulated two core lead
Non-inductive winding
Low losses
Short circuits avoided due to self healing properties
Compact size
No leakage risk
Voltage for 4.16.10 Series:
400 V - 10000h cl. B - 25/85/21
425 V - 10000h cl. B - 25/85/21
450 V - 3000h cl. C 25/85/21
475 V - 3000h cl. c - 25/85/21
500 V - 1000h cl. D - SI120/20
400 V - 10000h cl. B - 25/85/21
425 V - 10000h cl. B - 25/85/21
450 V - 3000h cl. C 25/85/21
475 V - 3000h cl. c - 25/85/21
500 V - 1000h cl. D - SI120/20
Voltage for 4.16.15 Series:
400 V - 10000h cl. B - 25/100/21
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
400 V - 10000h cl. B - 25/100/21
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
Voltage for 4.16.87 Series:
450 V - 10000h cl. B - 25/85/21
450 V - 10000h cl. B - 25/85/21
Voltage for 4.16.17 Series:
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21
Standards
VDE 560-8, CEI 33-3, SEV 1029
