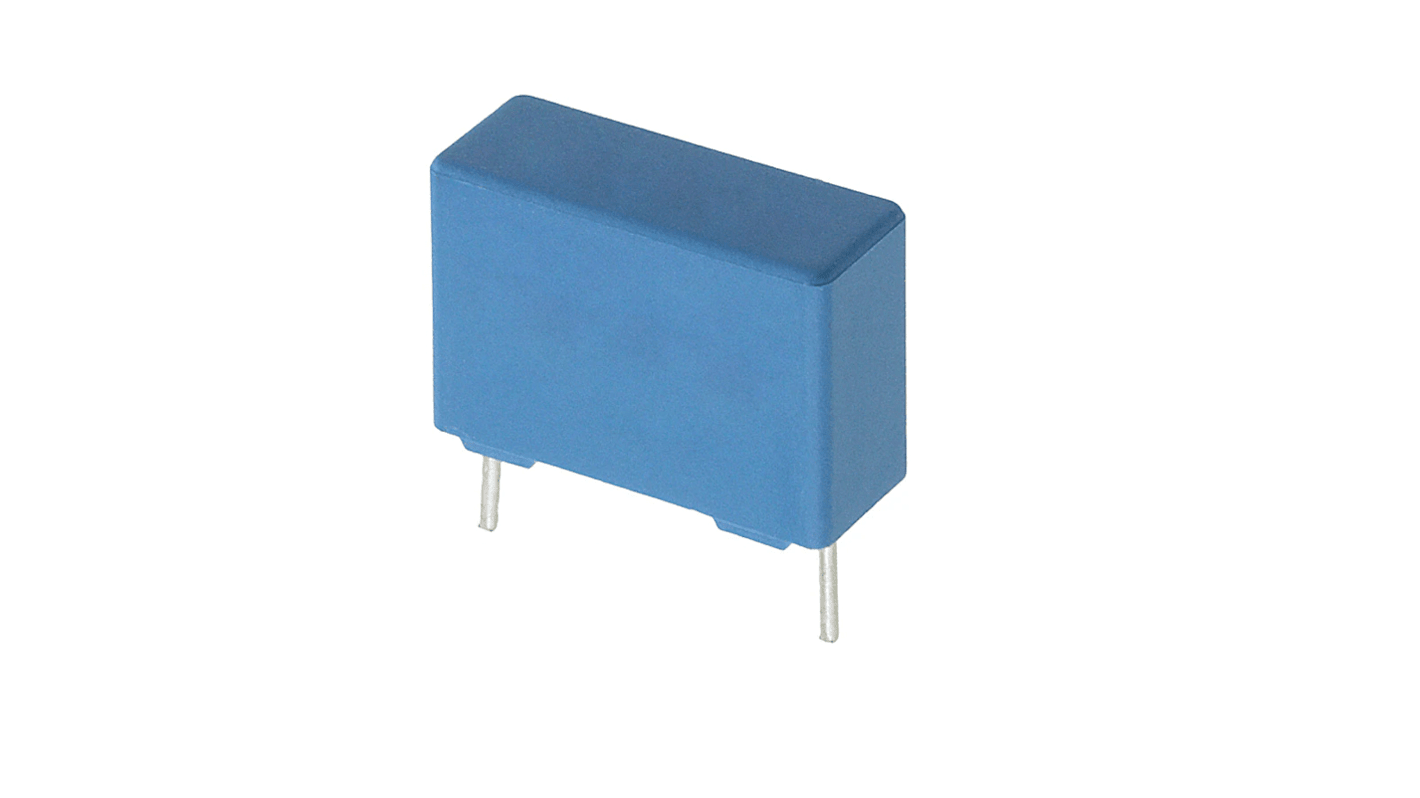

TDK B32529 Polyester Film Capacitor 1.5 nF 400V ac 400 V dc, Through Hole 2
- RS Stock No.:
- 242-7257
- Mfr. Part No.:
- B32529C6152J289
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
£6.20
(exc. VAT)
£7.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.124 | £6.20 |
| 100 - 200 | £0.119 | £5.95 |
| 250 - 450 | £0.114 | £5.70 |
| 500 + | £0.106 | £5.30 |
*price indicative
- RS Stock No.:
- 242-7257
- Mfr. Part No.:
- B32529C6152J289
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Polyester Film Capacitor | |
| Mount Type | Through Hole | |
| Rated AC Voltage | 400V ac | |
| Series | B32529 | |
| Rated DC Voltage | 400V dc | |
| Lead Pitch | 5mm | |
| Automotive Standard | AEC-Q200 | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS, UL | |
| Width | 2.5mm | |
| Height | 6.5mm | |
| Length | 7.3mm | |
| Lead Diameter | 0.5mm | |
| Capacitance | 1.5nF | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Polyester Film Capacitor | ||
Mount Type Through Hole | ||
Rated AC Voltage 400V ac | ||
Series B32529 | ||
Rated DC Voltage 400V dc | ||
Lead Pitch 5mm | ||
Automotive Standard AEC-Q200 | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS, UL | ||
Width 2.5mm | ||
Height 6.5mm | ||
Length 7.3mm | ||
Lead Diameter 0.5mm | ||
Capacitance 1.5nF | ||
The TDK general purpose metallized polyester film capacitor mostly used in applications such as blocking, coupling, decoupling, bypassing, radio frequency interference for automotive applications.
High pulse strength
High contact reliability
RoHS compatible
Halogen free
AEC-Q200D compliant
