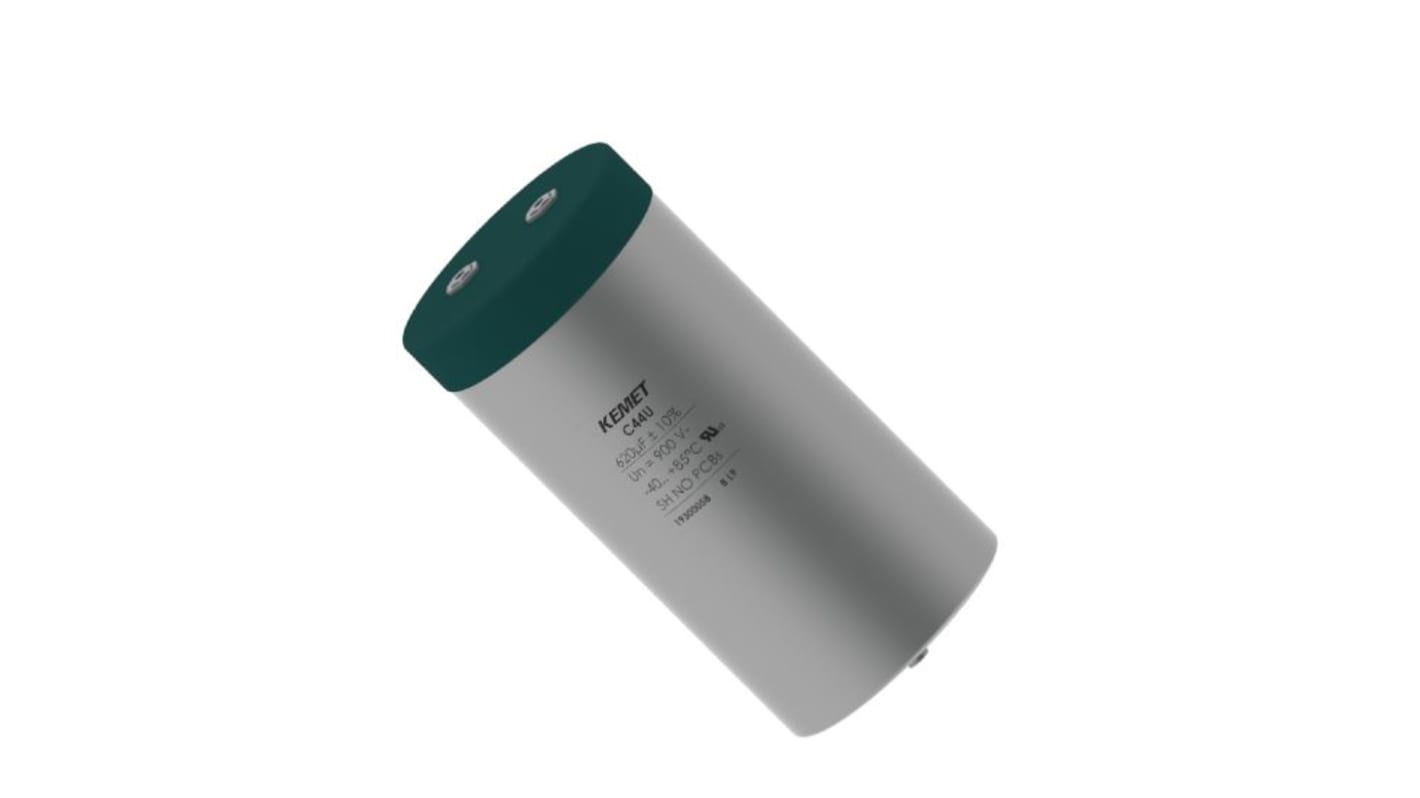

KEMET C44U Polypropylene Capacitor, ±10 %, 1190 μF 1.3 kV dc, Stud Mount
- RS Stock No.:
- 228-8866
- Mfr. Part No.:
- C44UUGT7119M32K
- Brand:
- KEMET
Subtotal (1 bag of 4 units)*
£490.28
(exc. VAT)
£588.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 4 + | £122.57 | £490.28 |
*price indicative
- RS Stock No.:
- 228-8866
- Mfr. Part No.:
- C44UUGT7119M32K
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Polypropylene Capacitor | |
| Capacitance | 1190μF | |
| Mount Type | Stud Mount | |
| Tolerance | ±10 % | |
| Packaging | Cardboard Box | |
| Series | C44U | |
| Rated DC Voltage | 1.3kV dc | |
| Lead Pitch | 50mm | |
| Automotive Standard | No | |
| Terminal Type | Screw | |
| Application | Energy Storage, DC Filter | |
| Lead Length | 22.5mm | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Equivalent Series Resistance ESR | 1.15mΩ | |
| Maximum Operating Temperature | 75°C | |
| Height | 232mm | |
| Standards/Approvals | UL 810, IEC 61071, EN 61071, VDE 0560 | |
| Width | 136mm | |
| Length | 232mm | |
| Package/Case | Aluminium | |
| Lead Diameter | 15mm | |
| Dissipation Factor | 0.0002% | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Polypropylene Capacitor | ||
Capacitance 1190μF | ||
Mount Type Stud Mount | ||
Tolerance ±10 % | ||
Packaging Cardboard Box | ||
Series C44U | ||
Rated DC Voltage 1.3kV dc | ||
Lead Pitch 50mm | ||
Automotive Standard No | ||
Terminal Type Screw | ||
Application Energy Storage, DC Filter | ||
Lead Length 22.5mm | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Equivalent Series Resistance ESR 1.15mΩ | ||
Maximum Operating Temperature 75°C | ||
Height 232mm | ||
Standards/Approvals UL 810, IEC 61071, EN 61071, VDE 0560 | ||
Width 136mm | ||
Length 232mm | ||
Package/Case Aluminium | ||
Lead Diameter 15mm | ||
Dissipation Factor 0.0002% | ||
- COO (Country of Origin):
- BG
The KEMET C44U-M series is a polypropylene metallized film capacitor with a cylindrical, aluminium can-type design filled with resin. It uses screw terminals and a plastic deck. It can be used in applications include DC filtering and energy storage. It has 1190 μF capacitance.
Controlled self healing
Low loss
High ripple current
High capacitance density
Long lifetime
