RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 20μF, Screw Mount
- RS Stock No.:
- 196-4618
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£21.97
(exc. VAT)
£26.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 63 unit(s) shipping from 06 October 2025
- Plus 28 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £21.97 |
5 - 9 | £21.09 |
10 - 24 | £20.21 |
25 - 49 | £18.46 |
50 + | £16.48 |
*price indicative
- RS Stock No.:
- 196-4618
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Capacitance | 20µF | |
Voltage | 440V ac | |
Mounting Type | Screw Mount | |
Tolerance | ±10% | |
Series | MRP440 | |
Length | 98mm | |
Dimensions | 45 (Dia.) x 98mm | |
Dielectric | Polypropylene | |
Terminal Type | Screw Mount | |
Dissipation Factor | <0.15% | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Capacitance 20µF | ||
Voltage 440V ac | ||
Mounting Type Screw Mount | ||
Tolerance ±10% | ||
Series MRP440 | ||
Length 98mm | ||
Dimensions 45 (Dia.) x 98mm | ||
Dielectric Polypropylene | ||
Terminal Type Screw Mount | ||
Dissipation Factor <0.15% | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- GB

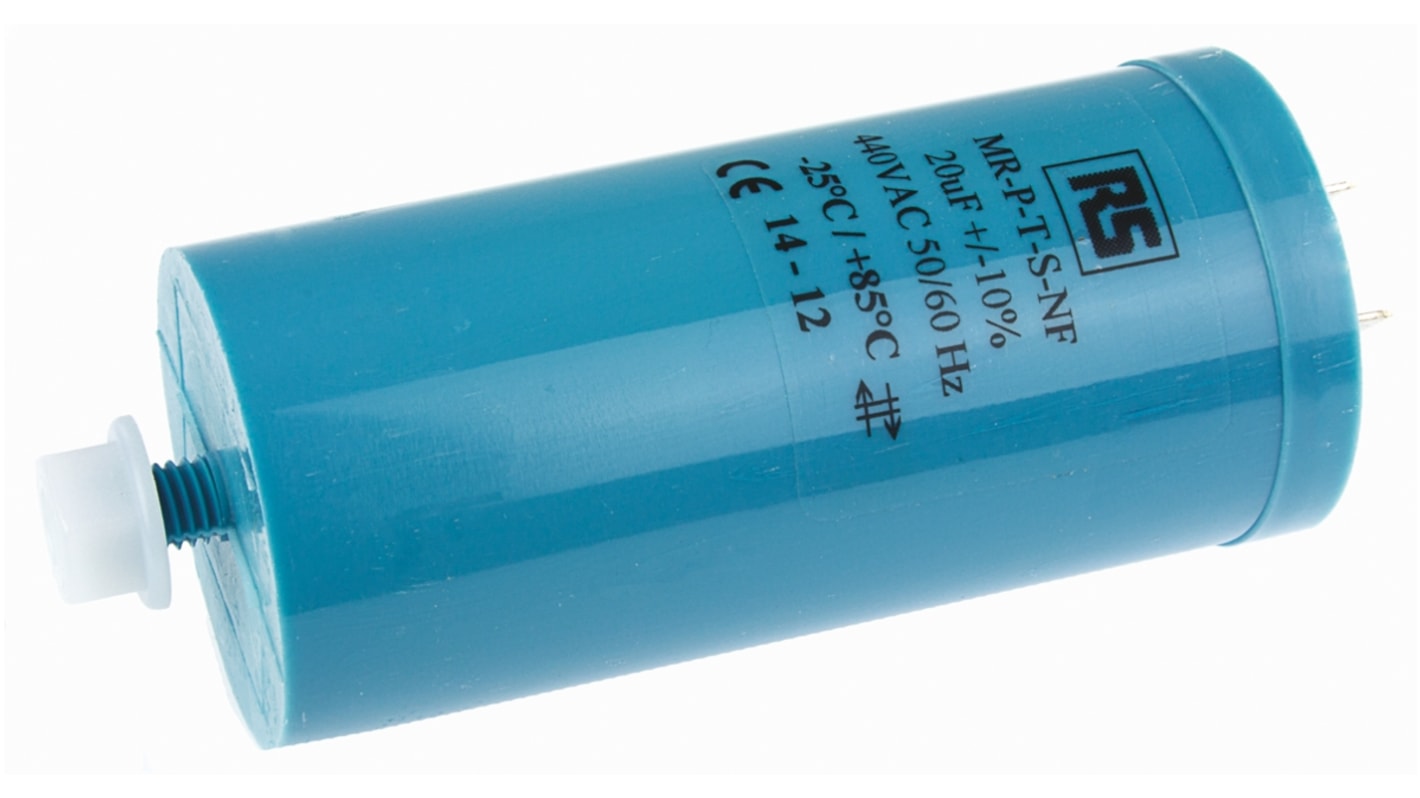

RS PRO 20 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount
This metallised capacitor from RS PRO is a motor-run type that provides power to motors. You can see polypropylene capacitors like this unit in pumps for domestic appliances and some office equipment. They are also used as AC capacitors for electrical distribution and in high-frequency and high-power systems such as induction heaters.
It has excellent self-healing properties as the capacitor clears a fault area where a short has occurred after a breakdown. The product is encapsulated in a non-flammable plastic case conforming to Underwriters' Laboratories' UL94V0 flammability standard, which assures the risk of flammable combustion is minimised. The capacitor has a screw mount terminal.
The unit complies with Restriction of Hazardous Substances (RoHS) standards so is made using only minimal amounts of any harmful substances. It's also tested against electrostatic discharge (ESD) criteria and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 regulations, so you can be sure the hazard of discharge is minimised.
It has excellent self-healing properties as the capacitor clears a fault area where a short has occurred after a breakdown. The product is encapsulated in a non-flammable plastic case conforming to Underwriters' Laboratories' UL94V0 flammability standard, which assures the risk of flammable combustion is minimised. The capacitor has a screw mount terminal.
The unit complies with Restriction of Hazardous Substances (RoHS) standards so is made using only minimal amounts of any harmful substances. It's also tested against electrostatic discharge (ESD) criteria and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 regulations, so you can be sure the hazard of discharge is minimised.
Features and Benefits
• Capacitance of 20 μF
• Polypropylene (PP) dielectric material family
• Dimensions of 45 (diameter) x 98 (length) mm
• Dissipation factor of less than 0.15%
• Maximum operating temperature of +85°C
• Minimum operating temperature of -25 °C
• Screw mounting type
• Tolerance of ±10%
• Voltage of 440 V AC
• Polypropylene (PP) dielectric material family
• Dimensions of 45 (diameter) x 98 (length) mm
• Dissipation factor of less than 0.15%
• Maximum operating temperature of +85°C
• Minimum operating temperature of -25 °C
• Screw mounting type
• Tolerance of ±10%
• Voltage of 440 V AC
Approvals
7777
