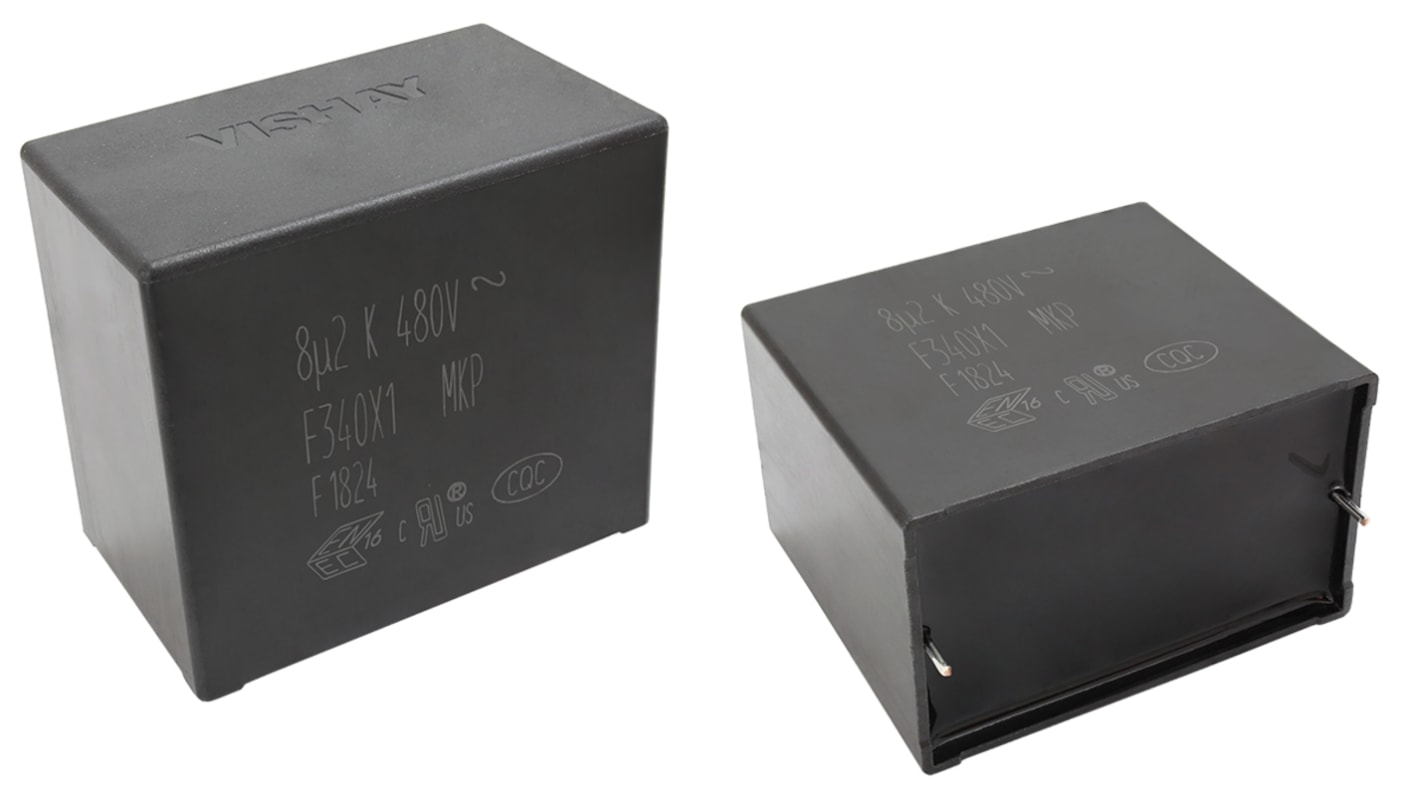

Vishay F340X1 Polypropylene Film Capacitor, 480V ac, ±10%, 8.2μF, Through Hole
- RS Stock No.:
- 187-8288
- Mfr. Part No.:
- F340X158248KYP2T0
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£22.16
(exc. VAT)
£26.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 46 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £22.16 |
| 5 - 9 | £21.71 |
| 10 - 24 | £21.27 |
| 25 - 49 | £20.84 |
| 50 + | £20.38 |
*price indicative
- RS Stock No.:
- 187-8288
- Mfr. Part No.:
- F340X158248KYP2T0
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 8.2µF | |
| Voltage | 480V ac | |
| Mounting Type | Through Hole | |
| Tolerance | ±10% | |
| Series | F340X1 | |
| Lead Pitch | 52.5mm | |
| Suppression Class | X1 | |
| Length | 57.5mm | |
| Depth | 35mm | |
| Lead Length | 3.5mm | |
| Height | 50mm | |
| Dimensions | 57.5 x 35 x 50mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Radial | |
| Package/Case | T | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 1.2mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 8.2µF | ||
Voltage 480V ac | ||
Mounting Type Through Hole | ||
Tolerance ±10% | ||
Series F340X1 | ||
Lead Pitch 52.5mm | ||
Suppression Class X1 | ||
Length 57.5mm | ||
Depth 35mm | ||
Lead Length 3.5mm | ||
Height 50mm | ||
Dimensions 57.5 x 35 x 50mm | ||
Dielectric Polypropylene | ||
Terminal Type Radial | ||
Package/Case T | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 1.2mm | ||
- COO (Country of Origin):
- PT
Maximum permissible AC voltage up to 530 V
Applications
For standard across the line X1 and series impedance applications
Applications
For standard across the line X1 and series impedance applications
