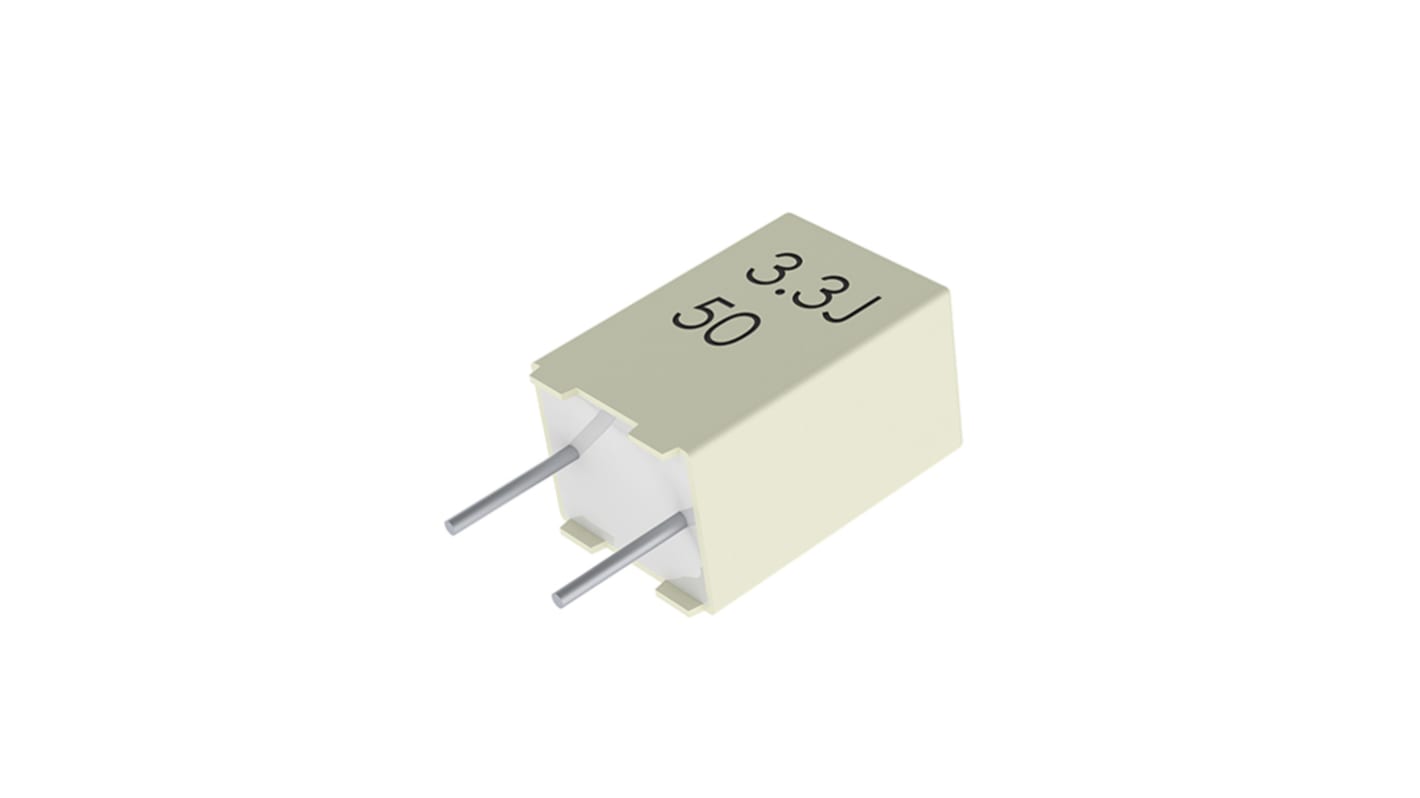

KEMET R82 Polyester Capacitor PET, 140 V ac, 250 V dc, ±5%, 100nF, Through Hole
- RS Stock No.:
- 174-6334
- Mfr. Part No.:
- R82IC3100Z360J
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.50
(exc. VAT)
£4.25
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 1,025 left, ready to ship
- Final 50 unit(s) shipping from 09 October 2025
Units | Per unit | Per Pack* |
---|---|---|
25 - 100 | £0.14 | £3.50 |
125 - 475 | £0.084 | £2.10 |
500 - 975 | £0.063 | £1.58 |
1000 + | £0.053 | £1.33 |
*price indicative
- RS Stock No.:
- 174-6334
- Mfr. Part No.:
- R82IC3100Z360J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 100nF | |
Voltage | 140 V ac, 250 V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | R82 | |
Automotive Standard | AEC-Q200 | |
Lead Pitch | 5mm | |
Length | 7.2mm | |
Depth | 4.5mm | |
Height | 9.5mm | |
Dimensions | 7.2 x 4.5 x 9.5mm | |
Terminal Type | Radial | |
Lead Diameter | 0.5mm | |
Dissipation Factor | 2.5 % @ 100 kHz | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 100nF | ||
Voltage 140 V ac, 250 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series R82 | ||
Automotive Standard AEC-Q200 | ||
Lead Pitch 5mm | ||
Length 7.2mm | ||
Depth 4.5mm | ||
Height 9.5mm | ||
Dimensions 7.2 x 4.5 x 9.5mm | ||
Terminal Type Radial | ||
Lead Diameter 0.5mm | ||
Dissipation Factor 2.5 % @ 100 kHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- ID
The R82 Series is constructed of metallized polyester film (wound or stacked technology) with radial leads of tinned wire. Radial leads are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitor is encapsulated with thermosetting resin
Applications
Typical applications include blocking, coupling, decoupling, timing and oscillator circuits. Not suitable for across-the-line application (see Suppressor Capacitors).
Applications
Typical applications include blocking, coupling, decoupling, timing and oscillator circuits. Not suitable for across-the-line application (see Suppressor Capacitors).
Voltage range: 50 – 400 VDC
Capacitance range: 0.001 μF – 4.7 μF
Lead Spacing: 5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56
Operating temperature range of -55˚C to +105˚C
Lead-free terminations
Tape and reel packaging
Self-healing
Capacitance range: 0.001 μF – 4.7 μF
Lead Spacing: 5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56
Operating temperature range of -55˚C to +105˚C
Lead-free terminations
Tape and reel packaging
Self-healing
