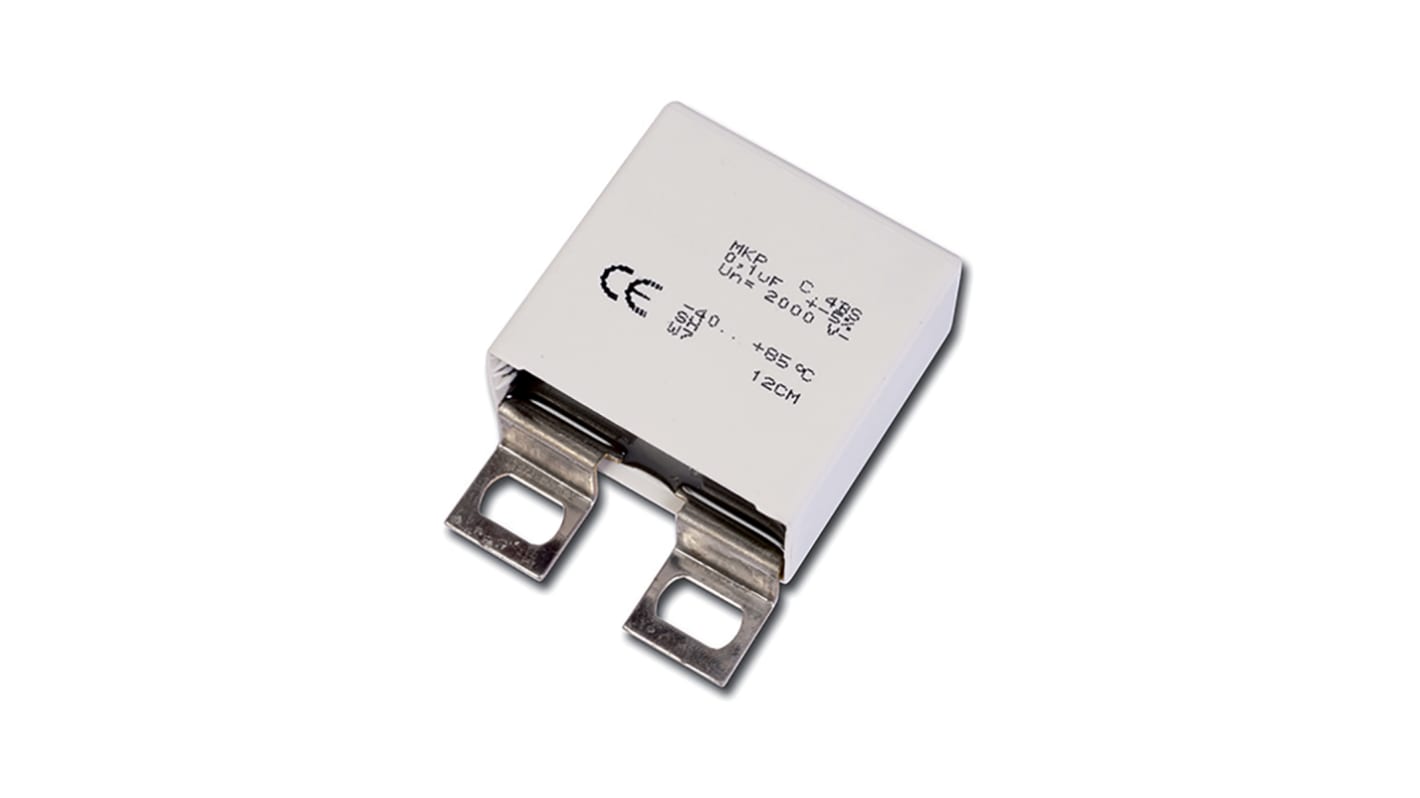

KEMET C4BS Polypropylene Film Capacitor, 600 V ac, 1000 V dc, ±5%, 470nF, Panel Mount
- RS Stock No.:
- 174-6286
- Mfr. Part No.:
- C4BSNBX3470ZAFJ
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£10.12
(exc. VAT)
£12.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 158 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.12 |
| 5 - 9 | £9.39 |
| 10 - 19 | £8.93 |
| 20 + | £8.56 |
*price indicative
- RS Stock No.:
- 174-6286
- Mfr. Part No.:
- C4BSNBX3470ZAFJ
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 470nF | |
| Voltage | 600 V ac, 1000 V dc | |
| Mounting Type | Panel Mount | |
| Tolerance | ±5% | |
| Series | C4BS | |
| Lead Pitch | 25.5mm | |
| Length | 41.5mm | |
| Lead Length | 14mm | |
| Depth | 40mm | |
| Height | 20mm | |
| Equivalent Series Resistance | 7.6mΩ | |
| Dimensions | 41.5 x 40 x 20mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Radial | |
| Dissipation Factor | 5 x 10^-4 % @ 1 kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 470nF | ||
Voltage 600 V ac, 1000 V dc | ||
Mounting Type Panel Mount | ||
Tolerance ±5% | ||
Series C4BS | ||
Lead Pitch 25.5mm | ||
Length 41.5mm | ||
Lead Length 14mm | ||
Depth 40mm | ||
Height 20mm | ||
Equivalent Series Resistance 7.6mΩ | ||
Dimensions 41.5 x 40 x 20mm | ||
Dielectric Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 5 x 10^-4 % @ 1 kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Self-Healing
Low losses
High ripple current
High contact reliability
Suitable for high frequency applications
Low losses
High ripple current
High contact reliability
Suitable for high frequency applications
