KEMET C4AQ Metallised Polypropylene Film Capacitor, 1.5kV dc, ±5%, 3μF
- RS Stock No.:
- 174-4474
- Mfr. Part No.:
- C4AQSBU4300A11J
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 2 units)*
£4.08
(exc. VAT)
£4.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 216 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £2.04 | £4.08 |
10 - 22 | £1.655 | £3.31 |
24 - 48 | £1.575 | £3.15 |
50 + | £1.485 | £2.97 |
*price indicative
- RS Stock No.:
- 174-4474
- Mfr. Part No.:
- C4AQSBU4300A11J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 3µF | |
Voltage | 1.5kV dc | |
Tolerance | ±5% | |
Series | C4AQ | |
Lead Pitch | 27.5mm | |
Automotive Standard | AEC-Q200 | |
Length | 31.5mm | |
Lead Length | 6mm | |
Depth | 19mm | |
Equivalent Series Resistance | 9.7mΩ | |
Height | 29mm | |
Dimensions | 31.5 x 19 x 29mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Radial | |
Maximum Operating Temperature | +105°C | |
Dissipation Factor | 0.02% | |
Minimum Operating Temperature | -40°C | |
Lead Diameter | 0.8mm | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 3µF | ||
Voltage 1.5kV dc | ||
Tolerance ±5% | ||
Series C4AQ | ||
Lead Pitch 27.5mm | ||
Automotive Standard AEC-Q200 | ||
Length 31.5mm | ||
Lead Length 6mm | ||
Depth 19mm | ||
Equivalent Series Resistance 9.7mΩ | ||
Height 29mm | ||
Dimensions 31.5 x 19 x 29mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Maximum Operating Temperature +105°C | ||
Dissipation Factor 0.02% | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- CN

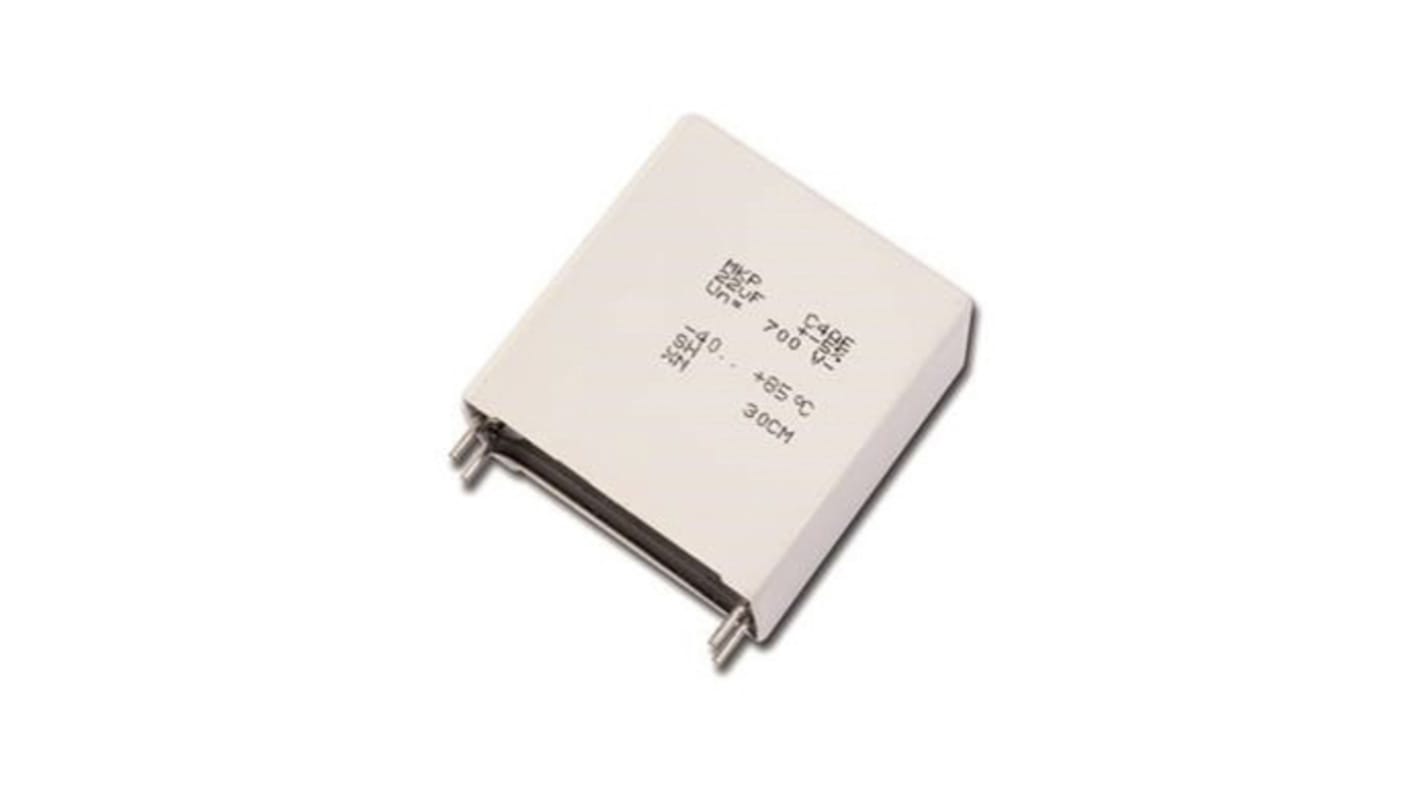

The KEMET C4AQSBU4300A11J capacitor is a polypropylene metallized film capacitor with a rectangular, plastic box-type design (whiter grey in colour) filled with resin, and uses 2 or 4 tinned copper wires.
Self-healing
Low loss
High ripple current
High capacitance density
High contact reliability
Low loss
High ripple current
High capacitance density
High contact reliability
