- RS Stock No.:
- 173-0602
- Mfr. Part No.:
- F17724682000
- Brand:
- Vishay
Price Each (In a Bag of 110)
£1.744
(exc. VAT)
£2.093
(inc. VAT)
30 In stock - FREE next working day delivery available
Units | Per unit | Per Bag* |
---|---|---|
110 - 110 | £1.744 | £191.84 |
220 - 440 | £1.57 | £172.70 |
550 + | £1.483 | £163.13 |
*price indicative
- RS Stock No.:
- 173-0602
- Mfr. Part No.:
- F17724682000
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

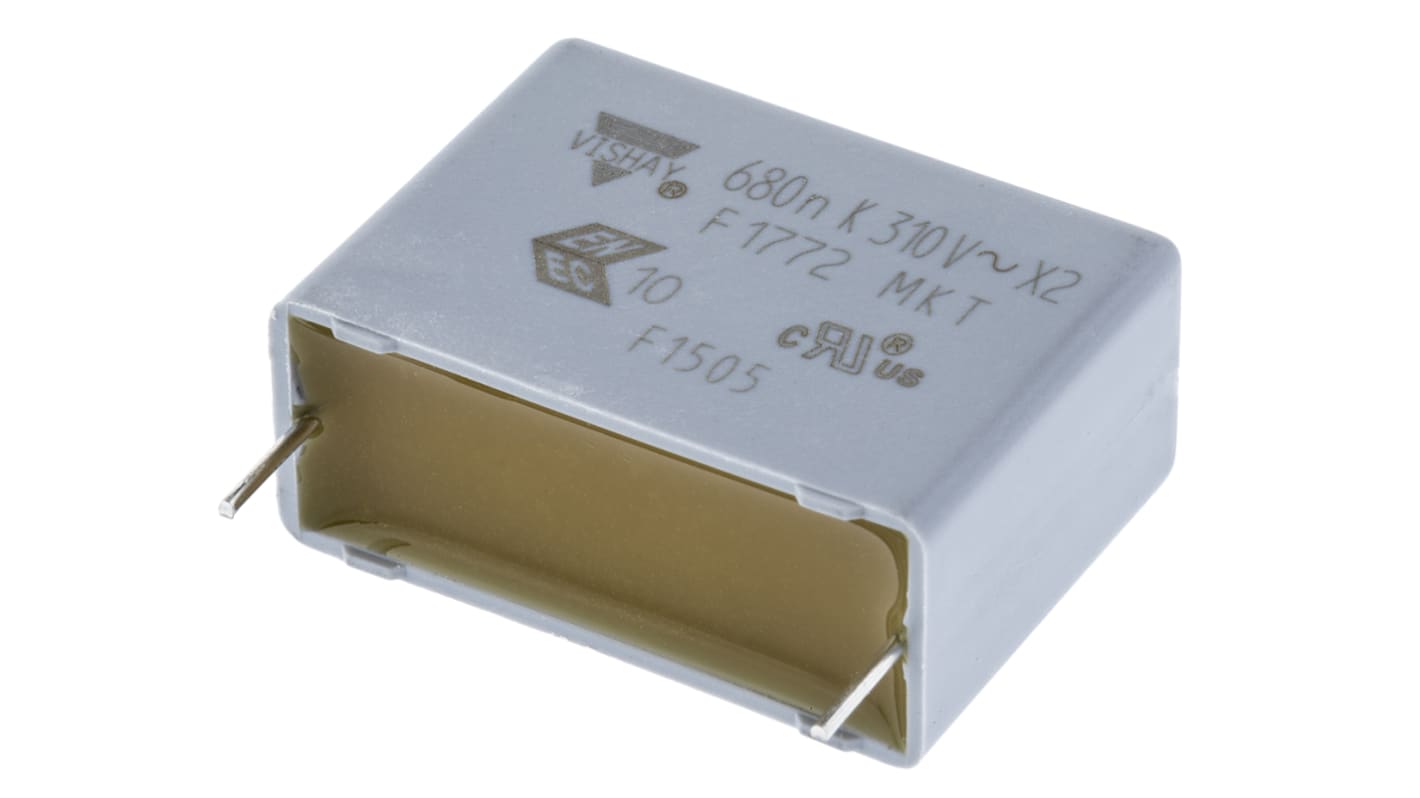

X2 class anti-interference capacitors, series F1772-2000 310 V ac
Metallised film capacitors for interference suppression installed between phases or between phase and neutral
Epoxy resin-sealed, flame-retardant case
Epoxy resin-sealed, flame-retardant case
Approvals
(EN 132400) CEI 384-14 iss. 2 Ongoing qualifications, VDE 0565-1 class X2, SEV 1055 1978, DEMKO CEI 384-14 1981, SEMKO CEI 384-14 1981, NEMKO CEI 384-14 1981, FIMKO CEI 384-14 1981, UL 1283/UL 1414 (up to 1 μF), CSA 222 No.8-M 1986, IMQ CEI 40-7/V1-1981, ÖVE CEI 384-14 1981
Specifications
Attribute | Value |
---|---|
Capacitance | 680nF |
Voltage | 310V ac |
Mounting Type | Through Hole |
Tolerance | ±10% |
Series | F1772 |
Lead Pitch | 27.5mm |
Length | 31mm |
Depth | 13mm |
Height | 23mm |
Dimensions | 13 x 23 x 31mm |
Dielectric | Polyester |
Terminal Type | Through Hole |
Lead Diameter | 0.8mm |
Maximum Operating Temperature | +110°C |
Minimum Operating Temperature | -40°C |
